LZE730KA604 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V (SN: 314000000 - 314999999) (2014) RH Hydro Assembly No. 116-6414 Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V

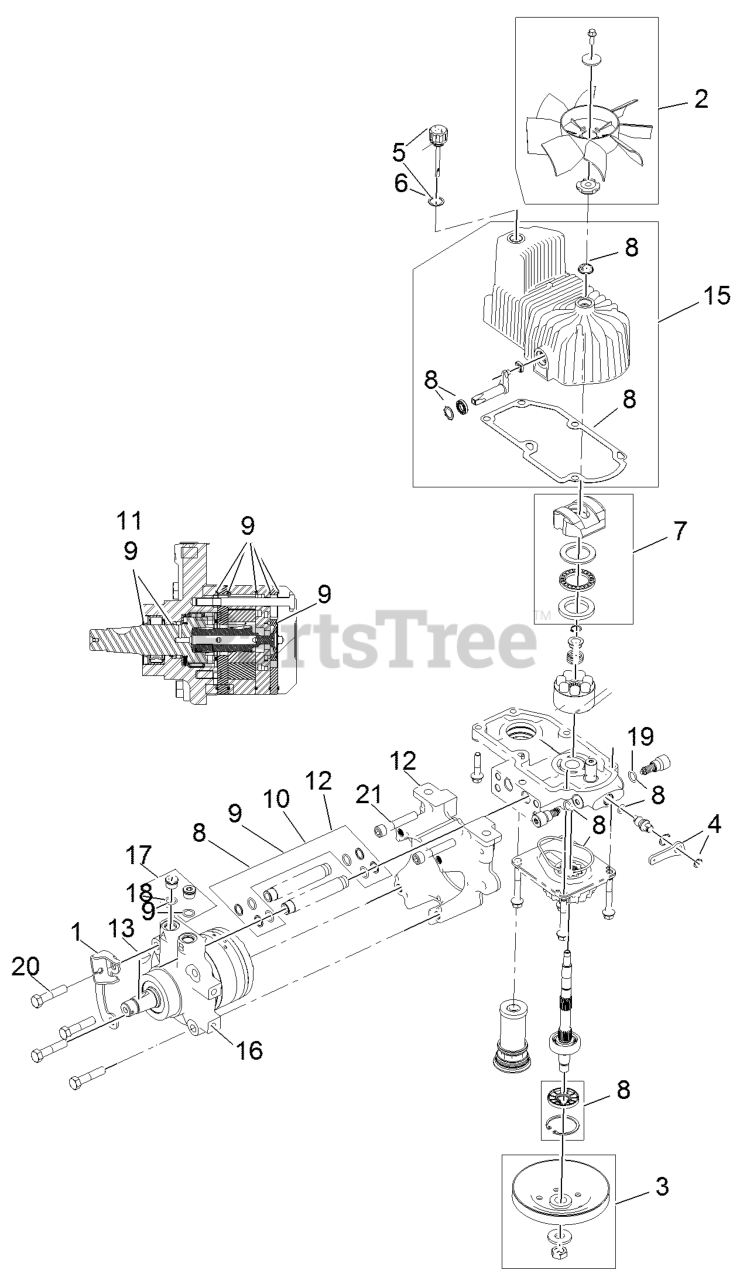

RH Hydro Assembly No. 116-6414 Parts Diagram

  • Title

1

Exmark 116-6859

BRACKET-ANCHOR, CABLE

$22.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0233

FAN KIT
(Superseded to 142-3603)

$132.99

$

In Stock, Qty 14

0

3

Exmark 116-0234

PULLEY KIT

$188.99

$

In Stock, only 3 left!

0

4

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

$56.99

$

In Stock, Qty 8

0

6

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

$15.99

$

In Stock, only 4 left!

0

7

Exmark 116-1367

SWASH BLOCK KIT

$611.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1368

PUMP SEAL KIT
(Superseded to 142-3604)

$183.99

$

In Stock, Qty 8

0

9

Exmark 116-1369

MOTOR SEAL KIT

$300.99

$

In Stock, only 1 left!

0

10

Exmark 116-1370

TUBE SEAL KIT

$37.99

$

In Stock, only 4 left!

0

11

Exmark 116-13711

Output Shaft Seal Kit

$

$

Currently unavailable

12

Exmark 116-54691

Nose Cup-Uht

$

$

Currently unavailable

13

Exmark 3257-421

Key-Woodruff 5/16 X 1

$

$

Currently unavailable

15

Exmark 116-32881

Housing-Rh

$

$

Currently unavailable

16

Exmark 116-89161

Motor-Hydraulic Rh 240cc

$

$

Currently unavailable

17

Exmark 116-79011

Magnetic Plugs Service Kit

$

$

Currently unavailable

18

Exmark 76-19002

O-Ring

$

$

Currently unavailable

19

Exmark 116-86622

O-Ring-Check Valve

$

$

Currently unavailable

20

Exmark 116-89744

Screw-Hh 1/2-20 X 2 1/4

$

$

Currently unavailable

21

Exmark 116-89752

Screw-Hsh 1/2-20 X 2 3/4

$

$

Currently unavailable

99

Exmark 116-13731

Flow Test Kit

Note: Not illustrated

$

$

Currently unavailable
