LZE742GKC60400 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742 (SN: 315000000 - 315999999) (2015)

60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742

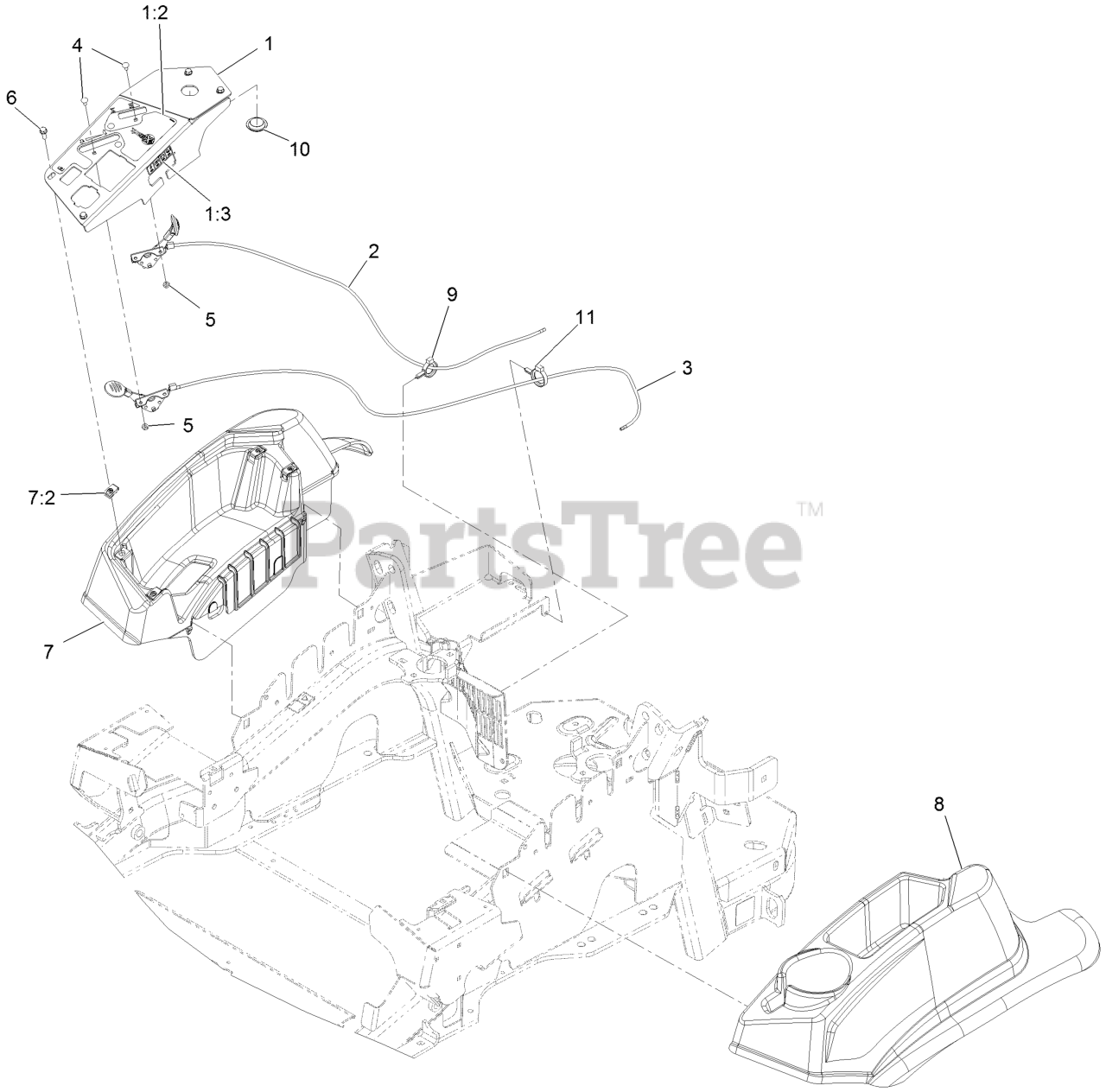

LZE742GKC60400 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742 (SN: 315000000 - 315999999) (2015) > Parts Diagrams (26) > Control Assembly

  • Title
116-1845

1

ASM,Console Panel W/Decal

Part# 116-1845

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.13

116-8724

1:2

Decal-Control Panel Non-Efi

Part# 116-8724

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.71

114-4466

1:3

Decal-Fuses

Part# 114-4466

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.80

109-8165

2

ASM, Choke Cable

Part# 109-8165

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.69

116-0969

3

ASM,Throttle Cable

Part# 116-0969

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.69

1-807513

4

Bolt-Carriage #10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.28

3296-2

5

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

32105-15

6

Screw-Machine 1/4-20 X 3/4

Part# 32105-15

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.42

116-1278

7

Console,RH As ASM

Part# 116-1278

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $114.65

107069

7:2

Nut-Retainer-Panel 1/4-20

Part# 107069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.47

109-9457

8

Console, LH As

Part# 109-9457

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $122.65

105-1853

9

Clamp-Hose

Part# 105-1853

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.81

116-1875

10

Plug,Plastic

Part# 116-1875

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.79

104-2490

11

Clamp-Hose

Part# 104-2490

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.63
