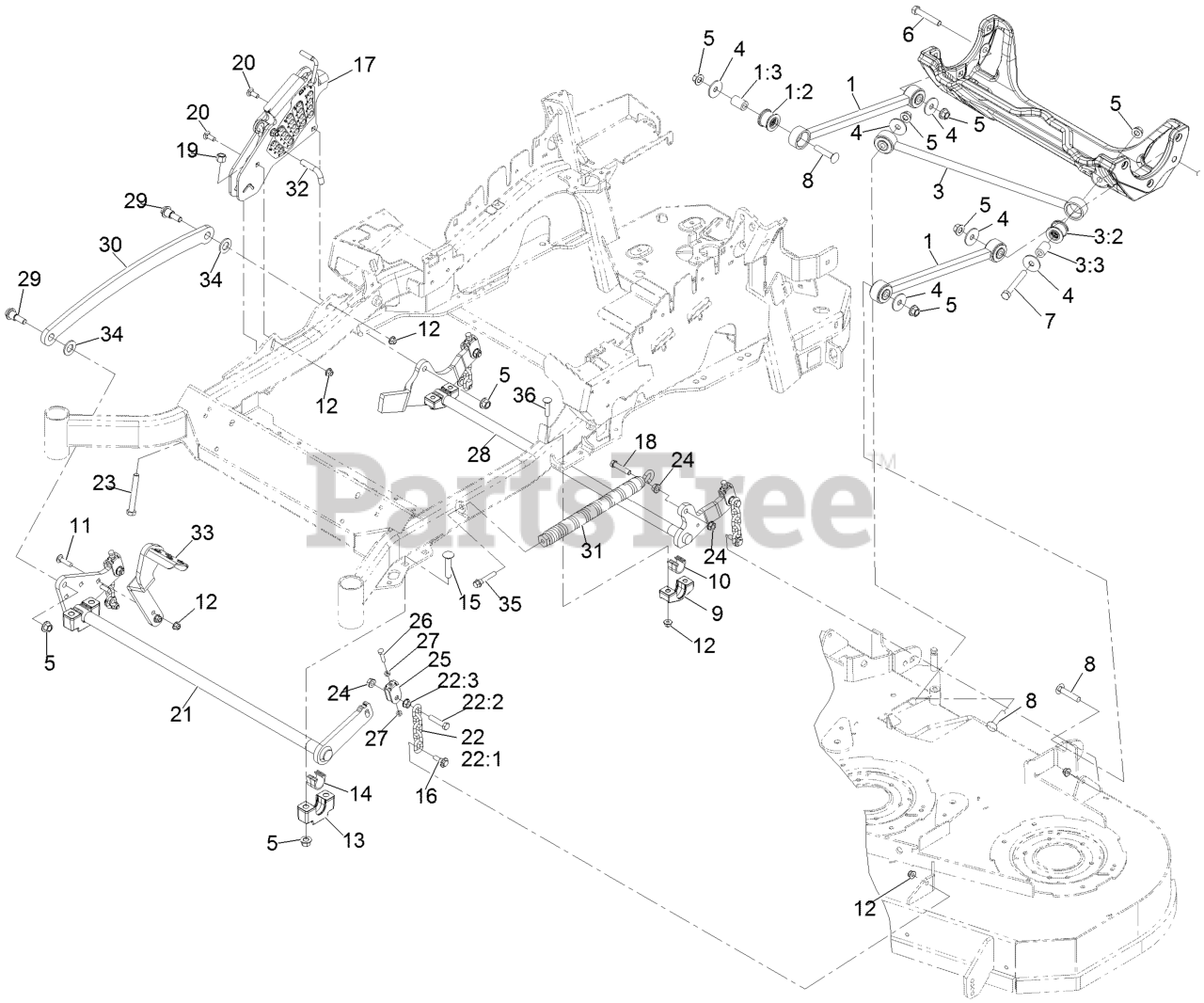

LZE742GKC60400 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742 (SN: 315000000 - 315999999) (2015) > Parts Diagrams (26) > Deck Lift Assembly

  • Title
116-2031

1

Long Strut ASM

Part# 116-2031

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $85.64

109-5009

1:2

Bushing-Suspension, Rubber

Part# 109-5009

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

109-5010

1:3

Spacer

Part# 109-5010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.43

109-5013

3

Panhard Rod ASM

Part# 109-5013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $100.32

109-5009

3:2

Bushing-Suspension, Rubber

Part# 109-5009

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

109-5010

3:3

Spacer

Part# 109-5010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.43

86-1990

4

Washer

Part# 86-1990

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.15

99-5107

5

Nut-Lock 1/2-13

Part# 99-5107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

325-12

6

Screw-HH 1/2-13 X 3

Part# 325-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.10

325-17

7

Screw-HH 1/2-13 X 4

Part# 325-17

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.03

3233-34

8

Bolt-Carriage 1/2-13 X 2 1/2

Part# 3233-34

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.84

116-0818-03

9

Support-Cross Shaft, Rear Bearing

Part# 116-0818-03 (Superseded to 132-4719)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.80

109-7173

10

Bearing-Cross Shaft, Rear

Part# 109-7173

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.63

3231-4

11

Bolt-Carriage 3/8-16 X 1 1/2

Part# 3231-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.61

104-8301

12

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

109-9409

13

Support-Cross Shaft, Front Bearing

Part# 109-9409

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.45

109-9410

14

Bearing-Cross Shaft, Front

Part# 109-9410

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.63

116-1700

15

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

Part# 116-1700

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.76

109-9840

16

Screw-Hex Flange 3/8-16 X .80

Part# 109-9840

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.40

109-7438

17

HOC ASM

Part# 109-7438

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $193.31

109-9065

18

Screw-HH 7/16-14 X 2

Part# 109-9065

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

3296-23

19

Nut-Nyloc 1/2-13

Part# 3296-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

3231-2

20

Bolt-Carriage 3/8-16 X 1

Part# 3231-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.50

126-2475-03

21

Decklift-Front

Part# 126-2475-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $135.82

116-0756

22

Deck Lift Chain ASM

Part# 116-0756

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.00

1-633447

22:1

Chain-Lift, Deck

Part# 1-633447

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.32

109-9065

22:2

Screw-HH 7/16-14 X 2

Part# 109-9065

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

32128-37

22:3

Nut-Whizlock 7/16-14

Part# 32128-37

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.47

116-0559

23

Bolt-HH 1/2-13 X 4 Tap

Part# 116-0559

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.63

32128-37

24

Nut-Whizlock 7/16-14

Part# 32128-37

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.47

109-9066

25

Yoke-Adjust, Deck

Part# 109-9066

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.40

322-47

26

Screw-HH 5/16-18 X 1 1/4

Part# 322-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.69

3218-2

27

Nut-Jam 5/16-18

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

116-0459-03

28

Lift-Deck, Rear

Part# 116-0459-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $242.26

116-0780

29

Screw-Shoulder HHF 1/2-13 X 1.12

Part# 116-0780

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.72

116-0797-03

30

Link-Lift, Deck

Part# 116-0797-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $96.65

116-0000

31

Extension Spring ASM

Part# 116-0000

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $96.65

116-5584

32

Pin-HOC

Part# 116-5584

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

116-1919-01

33

Lever-Foot

Part# 116-1919-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $69.73

3256-28

34

Washer-3/4 Sae

Part# 3256-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.87

92-7674

35

Screw-Shcs 3/8-16 X 2.212

Part# 92-7674

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.16

3231-5

36

Screw-CARR

Part# 3231-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.23
