LZE742GKC60400 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742 (SN: 315000000 - 315999999) (2015) Hydraulic Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742

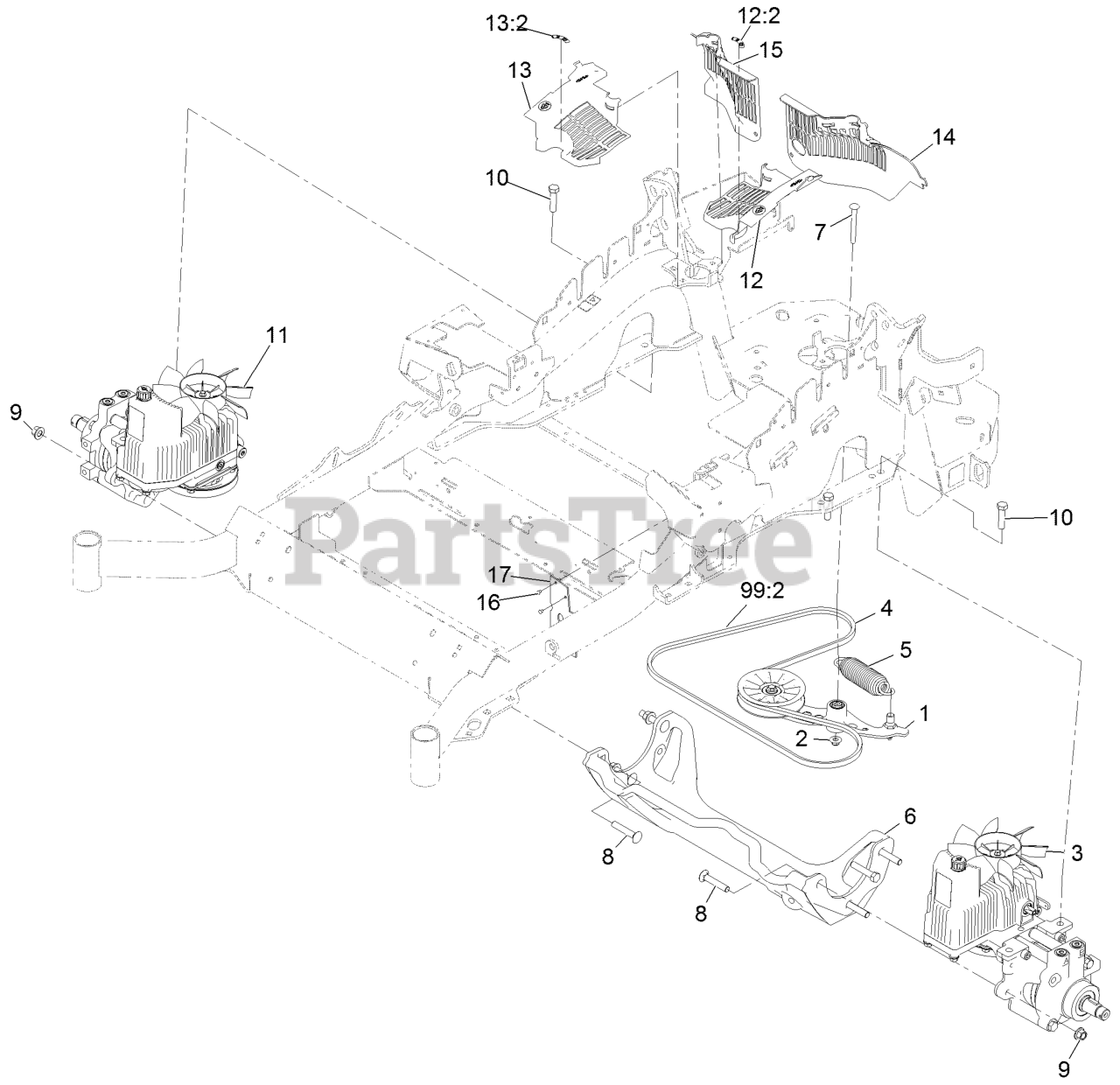

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

PUMP IDLER ASM

$213.99

$

In Stock, Qty 11

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 126-1323

LH HYDRO ASM (12CC W/ SHO
(Superseded to 135-7903)

$3380.99

$

In Stock, Qty 5

0

4

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

5

Exmark 116-6317

SPRING-EXTENSION

$27.99

$

In Stock, Qty 20+

0

6

Exmark 116-7558

CRADLE-HYDRO

$205.99

$

In Stock, only 3 left!

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, Qty 11

0

8

Exmark 126-0095

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

11

Exmark 126-1324

RH HYDRO ASM (12CC W/ SHO
(Superseded to 135-7904)

$3380.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0170

LH HYDRO GUARD ASM

$83.99

$

In Stock, only 4 left!

0

12:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

13

Exmark 116-0171

RH HYDRO GUARD ASM

$83.99

$

In Stock, only 1 left!

0

13:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

14

Exmark 109-9057

GUARD-HYDRO, REAR (LH)

$22.99

$

In Stock, Qty 6

0

15

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$23.99

$

In Stock, Qty 9

0

16

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 5

0

17

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

99

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 19

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

Bottle,Oil 1 Gallon Hydraulic

Note: Not illustrated

$70.99

$

In Stock, Qty 15

0

99

Exmark 116-3270

126-8103
(Superseded to 126-8103)

Note: Not illustrated

$241.99

$

In Stock, Qty 10

0

99:1

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 19

0

99:2

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

99:3

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+

0
