LZE742GKC604A3 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742 (SN: 402082300 - 404314158) (2018) Caster Wheel Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742

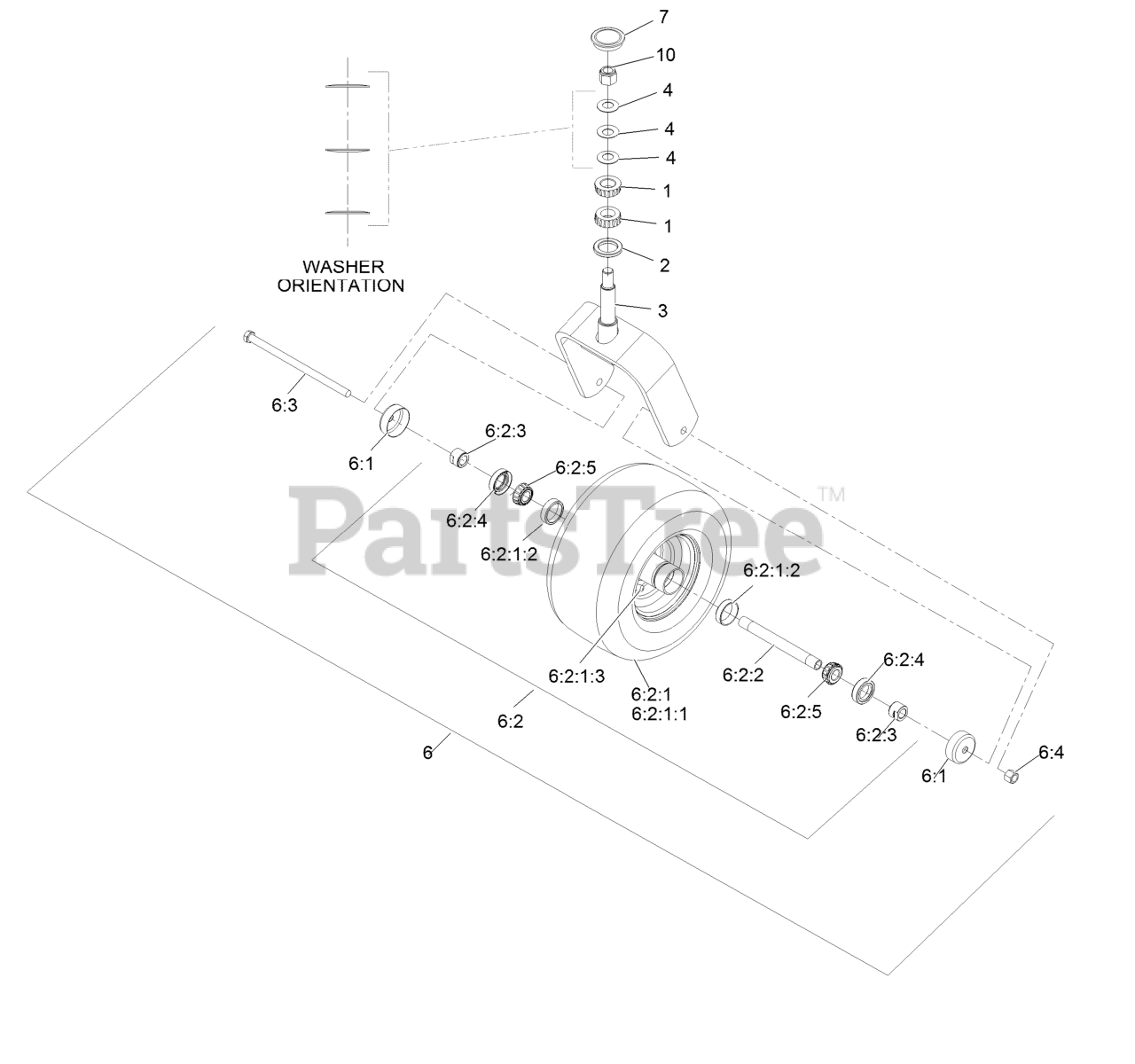

Caster Wheel Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

2

Exmark 116-5647

Seal-Grease

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-6707-01

Caster
(Superseded to 116-8888)

$180.99

$

In Stock, Qty 20+

0

4

Exmark 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

6

Exmark 117-0361

Caster Wheel ASM

$241.99

$

In Stock, only 2 left!

0

6:1

Exmark 103-2768

Guard-Seal

$3.49

$

In Stock, Qty 20+

0

6:2

Wheel ASM

$

$

Not available

6:2:1

Wheel And Tire ASM

$

$

Not available

6:2:1:1

Exmark 1-523009

Tire

$113.99

$

Usually ships in 3-6 days

0

6:2:1:2

Exmark 1-633584

Bearing-Cup

$9.49

$

In Stock, Qty 20+

0

6:2:1:3

Exmark 5108

Valve

$6.99

$

In Stock, Qty 13

0

6:2:2

Exmark 126-5361

Axle Caster ASM

$19.99

$

In Stock, only 3 left!

0

6:2:3

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 20+

0

6:2:4

Exmark 103-0063

Seal-Double Lip

$8.99

$

In Stock, Qty 13

0

6:2:5

Exmark 1-633585

Bearing-Cone Tapered Roller

$21.99

$

In Stock, Qty 20+

0

6:3

Exmark 325-39

Screw-HH 1/2-13 X 9 1/2

$18.99

$

In Stock, Qty 7

0

6:4

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

0

7

Exmark 103-4882

Cap-Grease

$7.99

$

In Stock, Qty 20+

0

10

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 20+

0
