LZE742GKC604A3 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742 (SN: 416150475 - 417930745) (Rev A) (2024) Caster Wheel Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742

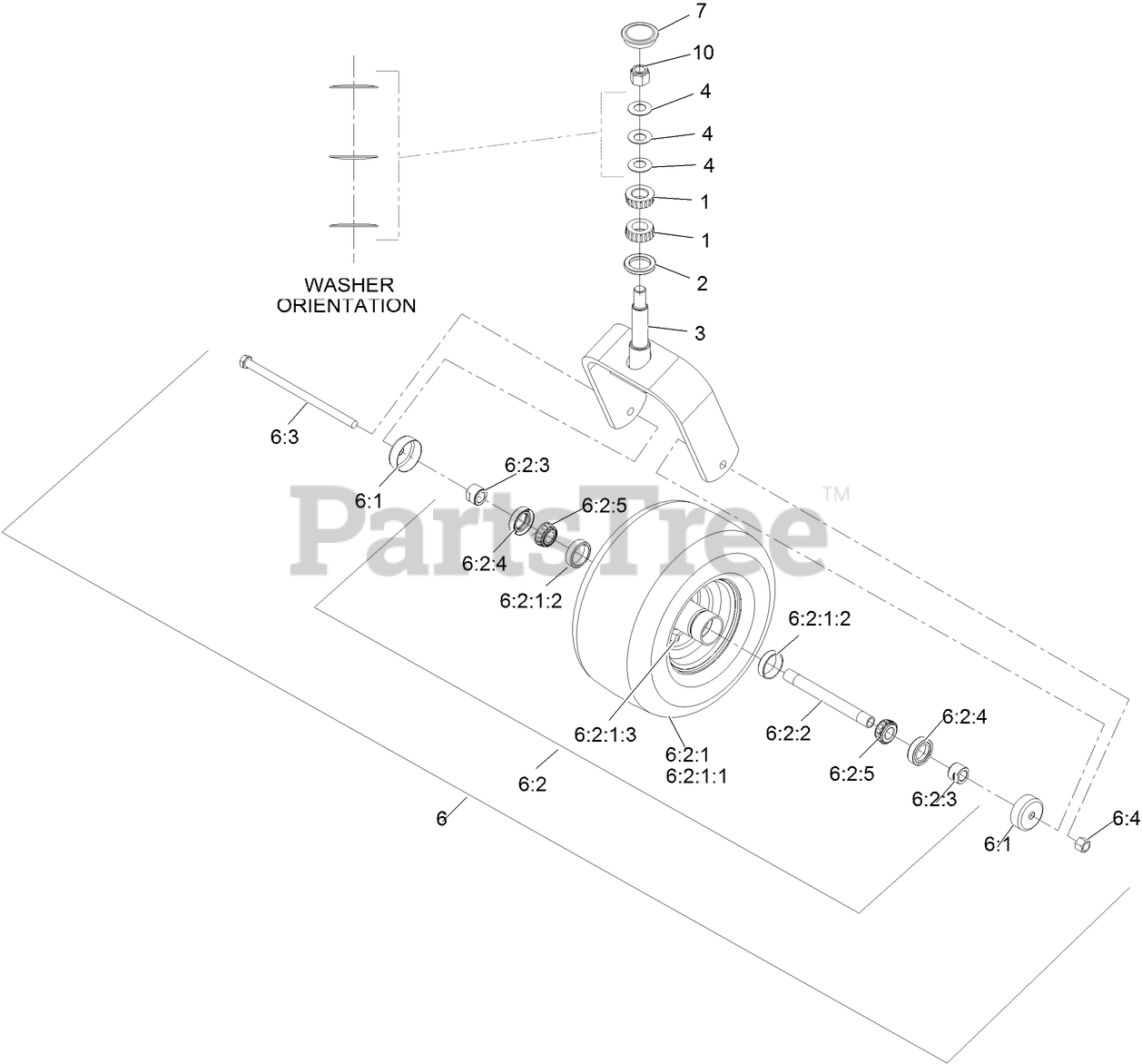

Caster Wheel Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

2

Exmark 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

3

Exmark 116-6707-01

116-8888
(Superseded to 116-8888)

$202.99

$

In Stock, Qty 7

0

4

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

6

Exmark 117-0361

CASTER WHEEL ASM

$246.99

$

In Stock, only 1 left!

0

6:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 6

0

6:2

Wheel ASM

Note: Not serviced separately

$

$

Not available

6:2:1

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

6:2:1:1

Exmark 1-523009

TIRE

$120.99

$

Usually ships in 3-6 days

0

6:2:1:2

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 6

0

6:2:1:3

Exmark 5108

VALVE

$7.99

$

In Stock, Qty 7

0

6:2:2

Exmark 126-5361

AXLE CASTER ASM

$20.99

$

In Stock, Qty 9

0

6:2:3

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, only 2 left!

0

6:2:4

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, only 3 left!

0

6:2:5

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$23.99

$

In Stock, Qty 17

0

6:3

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 9

0

6:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

10

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, only 2 left!

0
