LZE749EKC72RA1 - Exmark 72" Lazer Z E-Series Zero-Turn Mower, Kohler ECV749 (SN: 315000000 - 315999999) (2015) Engine Assembly Parts Diagram

72" Lazer Z E-Series Zero-Turn Mower, Kohler ECV749

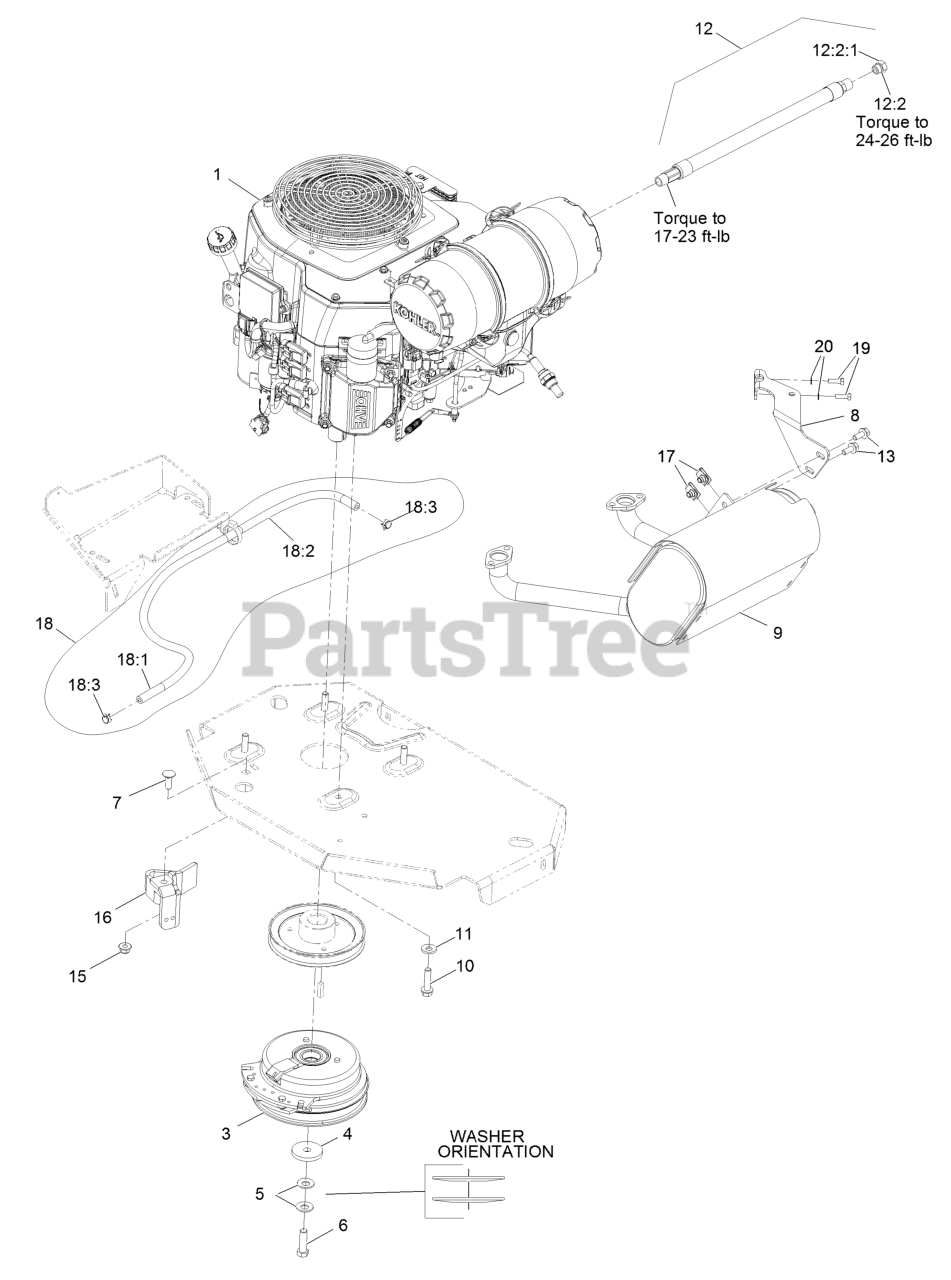

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler, Ps-Ecv749-3046

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

3

Exmark 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 17

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 15

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads

$5.49

$

In Stock, only 1 left!

0

7

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

8

Exmark 116-4297

MUFFLER BRACKET KIT

$72.99

$

Usually ships in 3-6 days

0

9

Exmark 116-2038

135-2127
(Superseded to 142-6858)

$455.99

$

In Stock, Qty 16

0

10

Exmark 32144-102

SCREW-HWH

$3.49

$

In Stock, Qty 5

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Exmark 116-5316

OIL DRAIN HOSE ASM

$53.99

$

In Stock, Qty 16

0

12:2

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

12:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-2612-01

CLUTCH-ANCHOR

$54.99

$

In Stock, only 4 left!

0

17

Exmark 94-2413

NUT-U

$2.99

$

In Stock, only 2 left!

0

18

Exmark 117-3893

FUEL LINE ASM

$47.99

$

Usually ships in 3-6 days

0

18:1

Exmark 109-0273

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

18:2

Exmark 117-3892

SLEEVE-THERMAL

$33.99

$

Usually ships in 3-6 days

0

18:3

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

19

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0
