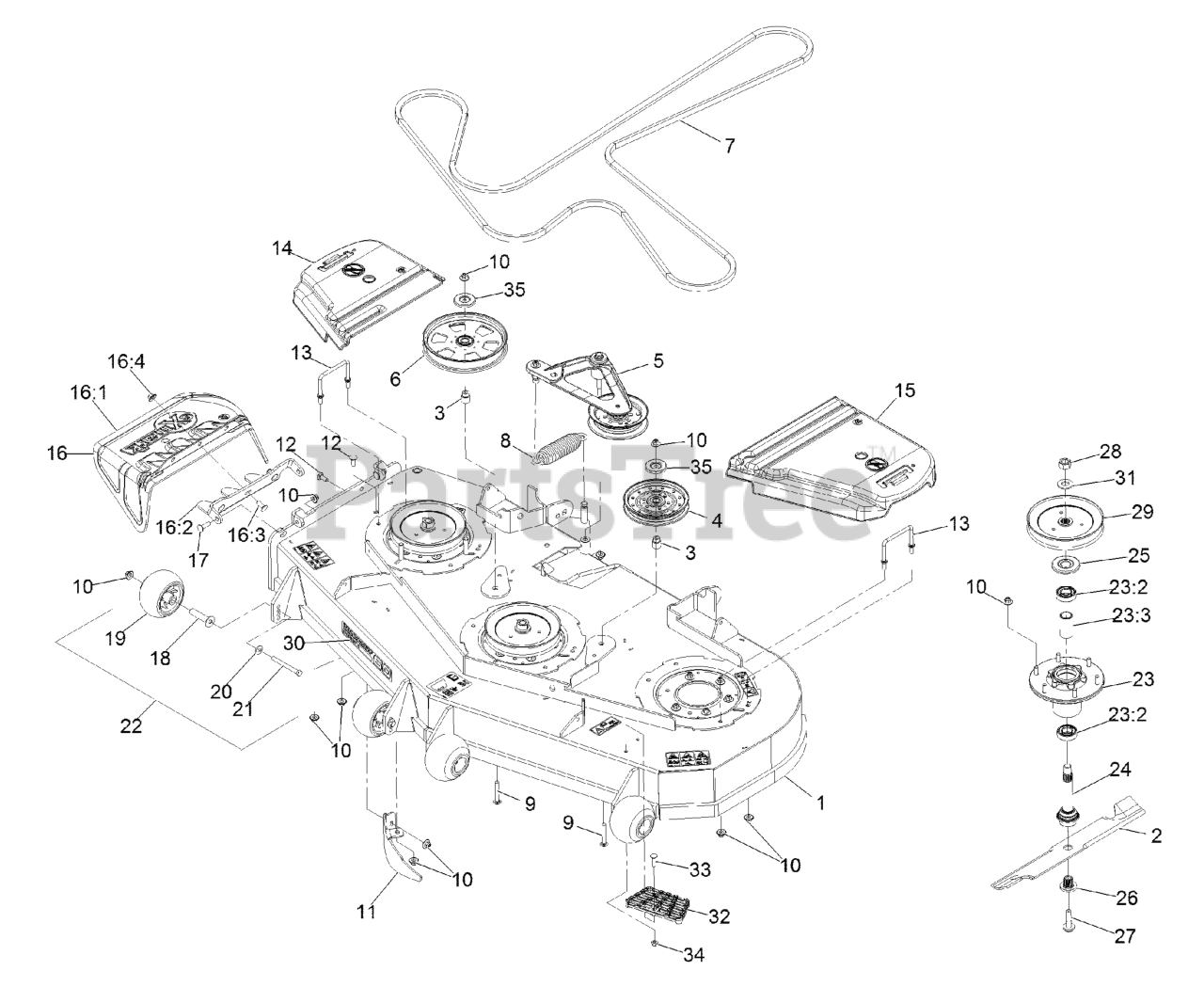

LZE751GKA604A1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) > Parts Diagrams (26) > Deck Assembly

  • Title
116-4232

1

Deck ASM,W/Decals 60

Part# 116-4232

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2978.02

116-5174

2

Blade-Extreme 2, 20.50"

Part# 116-5174

OEM Warranty Repair Part for Exmark

Currently unavailable

103-6403

2

Blade, Notched

Part# 103-6403 (Superseded to 103-6403-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.46

103-6393

2

Blade, Mulching

Part# 103-6393 (Superseded to 103-6393-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.24

103-6388

2

Blade, Low Lift

Part# 103-6388 (Superseded to 103-6388-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.13

103-6383

2

Blade, Solid

Part# 103-6383 (Superseded to 103-6383-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.68

1-633456

3

Bushing, Idler

Part# 1-633456

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.65

126-7685

4

Idler-Pulley, Flat 6.00X0.75

Part# 126-7685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.72

116-3755

5

Deck Idler ASM

Part# 116-3755

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $186.58

116-9639

6

Pulley-Idler, Flat

Part# 116-9639

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $75.85

109-8073

7

Belt,V-5V-198.75

Part# 109-8073 (Superseded to 135-5774)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $122.97

116-6317

8

Spring-Extension

Part# 116-6317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.55

3231-44

9

Bolt-Carriage 3/8-16 X 2 1/2

Part# 3231-44

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

109-6658

10

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

116-5614-01

11

Dogleg - Lz60

Part# 116-5614-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.47

3231-22

12

Bolt-Carriage 3/8-16 X 1

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

109-6982

13

Wireform-Cover

Part# 109-6982

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.17

116-0094

14

Cover-Belt, RH

Part# 116-0094

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $62.40

109-6938

15

Cover-Belt, LH

Part# 109-6938

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $69.73

109-7188

16

ASM,Discharge Chute

Part# 109-7188

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $77.31

109-2738

16:1

Chute, Discharge

Part# 109-2738

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.10

109-8675-01

16:2

Bracket,Discharge Chute

Part# 109-8675-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.29

3231-22

16:3

Bolt-Carriage 3/8-16 X 1

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

109-6658

16:4

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3231-28

17

Bolt-Carriage 3/8-16 X 1 1/4

Part# 3231-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.42

116-8131

18

Axle, Roller

Part# 116-8131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.88

103-8415

19

Roller-Anti-Scalp

Part# 103-8415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.57

98-5975

20

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

116-9362

21

Screw-HH 3/8-16 X 3 3/4 GR 8

Part# 116-9362

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.93

116-9981

22

Kit, Anti-Scalp Roller

Part# 116-9981

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.36

116-3344

23

ASM-Cutter Hsg With Bearings

Part# 116-3344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $123.55

116-0720

23:2

Bearing-Ball

Part# 116-0720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.90

116-3312

23:3

Spacer-Bearing

Part# 116-3312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.32

116-3341

24

ASM-Spindle And Seal

Part# 116-3341

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $65.47

116-1286

25

Guard,Bearing Top .989

Part# 116-1286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.86

103-3037

26

Bushing, Splined

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

109-9220

27

Screw-Sems 1/2-20 X 2.19

Part# 109-9220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

116-7306

28

Nut-Hex

Part# 116-7306

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

116-0676

29

Sheave,Blade Drive 7.25

Part# 116-0676

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $52.60

126-6589

30

Decal, 604

Part# 126-6589

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.86

103-2802

31

Washer-Spring Disc 3/4

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

126-4781-03

32

Step-Deck

Part# 126-4781-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.39

3230-3

33

Screw-CARR

Part# 3230-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.06

104-8300

34

Nut-Flange, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

126-8043

35

Shield-Dust

Part# 126-8043

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.65
