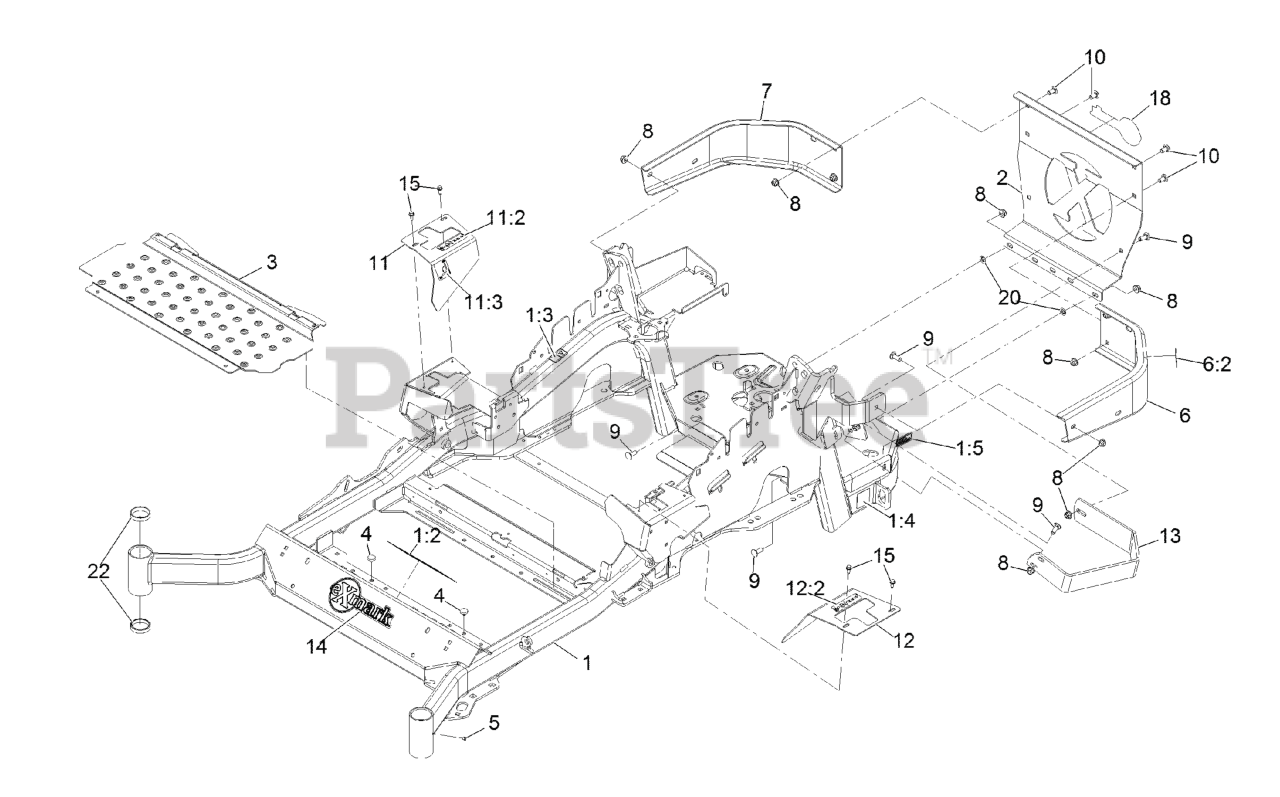

LZE751GKA604A1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) > Parts Diagrams (26) > Main Frame Assembly

  • Title
116-5902

1

Mainframe ASM

Part# 116-5902

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2320.81

132-0871

1:2

Decal-Danger

Part# 132-0871

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.44

106-5517

1:3

Decal-Warning

Part# 106-5517

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

106-2655

1:4

Decal-Hazard, Pinched Finger

Part# 106-2655

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.10

116-4858

1:5

Decal-Spark Arrester

Part# 116-4858

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

109-8863-03

2

Plate,Rear Guard

Part# 109-8863-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $119.82

116-8898-01

3

Floorpan

Part# 116-8898-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $78.29

1-513658

4

Bumper

Part# 1-513658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.17

1-811010

5

Plug

Part# 1-811010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.43

116-0180

6

LH Bumper ASM

Part# 116-0180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $193.31

106-5517

6:2

Decal-Warning

Part# 106-5517

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

116-0057-03

7

Bumper-RH

Part# 116-0057-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $155.39

104-8301

8

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

3231-22

9

Bolt-Carriage 3/8-16 X 1

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

3231-21

10

Bolt-Carriage 3/8-16 X 3/4

Part# 3231-21

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

116-5899

11

RH Motion Control Cover ASM

Part# 116-5899

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.47

99-8936

11:2

Decal-Control, Motion

Part# 99-8936

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.34

116-5988

11:3

Decal-Park Brake, CE

Part# 116-5988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.54

116-0580

12

LH Motion Control Cover ASM

Part# 116-0580

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.76

99-8936

12:2

Decal-Control, Motion

Part# 99-8936

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.34

126-2067-03

13

Guard-Muffler

Part# 126-2067-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.82

126-6969

14

Decal-Exmark Logo

Part# 126-6969

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.15

32144-10

15

Screw-HWH 1/4-20 X .62

Part# 32144-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.98

126-6965

18

Decal-Exmark Logo

Part# 126-6965 (Superseded to 126-6877)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.15

126-4345

19

Decal-Patent

Part# 126-4345

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.21

107-3154

20

Nut-Push 3/8-16

Part# 107-3154

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

117-3864

21

Decal-Fuel Fill, CE

Part# 117-3864

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.76

1-543508

22

Cup-Bearing Tapered Roller

Part# 1-543508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00
