LZE751GKA60RA1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Caster Wheel and Fork Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

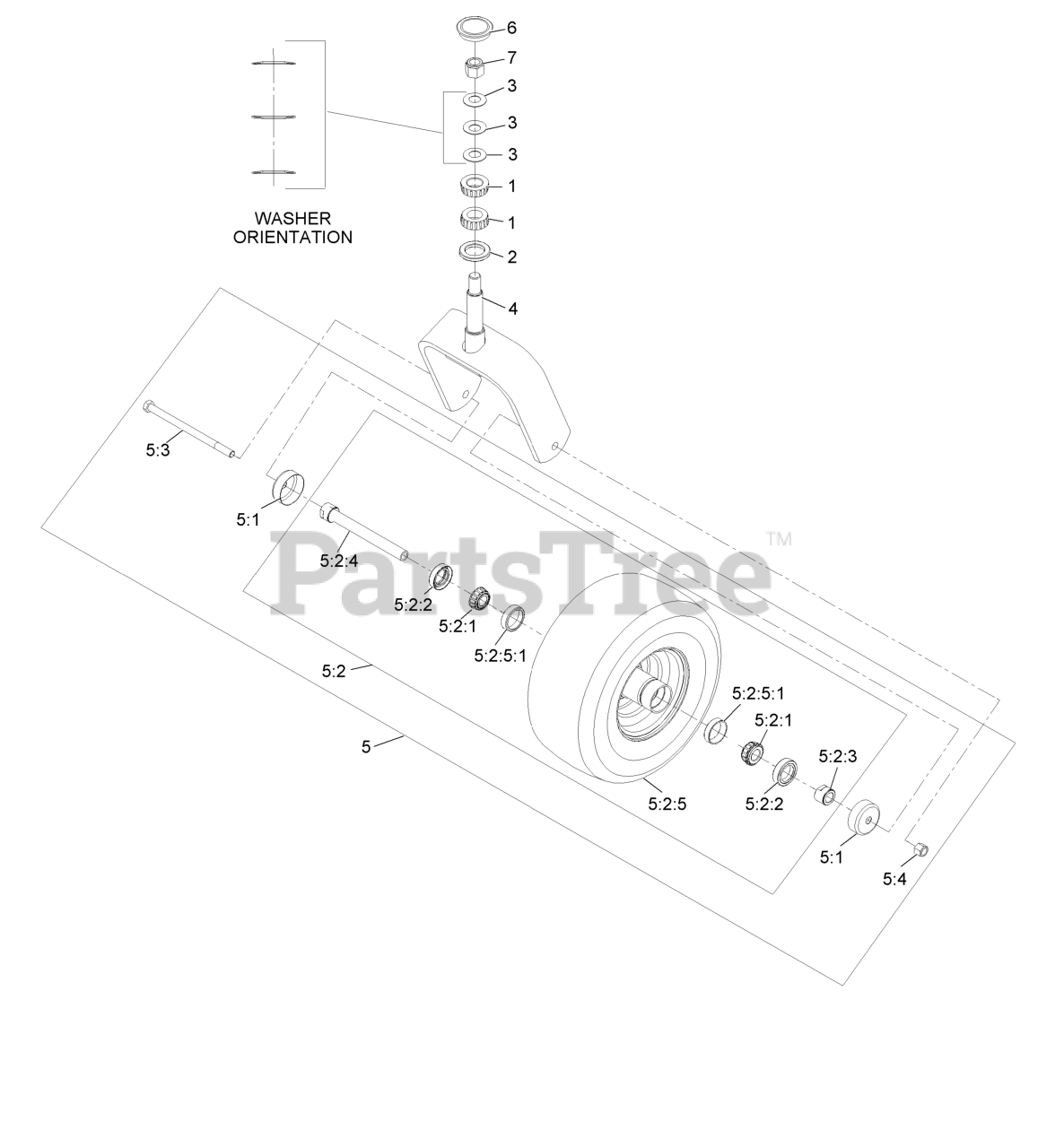

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Bearing-Roller, Tapered

$13.99

$

In Stock, Qty 20+

0

2

Exmark 116-5647

Seal-Grease

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-633508

Washer-Bellville

$3.49

$

In Stock, Qty 20+

0

4

Exmark 116-6707-01

Caster
(Superseded to 116-8888)

$180.99

$

In Stock, Qty 20+

0

5

Exmark 109-9127

Wheel & Tire ASM

$341.99

$

In Stock, Qty 8

0

5:1

Exmark 103-2768

Guard-Seal

$3.49

$

In Stock, Qty 20+

0

5:2

Wheel And Tire ASM

$

$

Not available

5:2:1

Exmark 1-633585

Bearing-Cone, Taper

$21.99

$

In Stock, Qty 20+

0

5:2:2

Exmark 103-0063

Seal-Caster

$8.99

$

In Stock, Qty 13

0

5:2:3

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 20+

0

5:2:4

Exmark 126-5361

Axle Caster ASM

$19.99

$

In Stock, only 3 left!

0

5:2:5

Wheel And Tire ASM

$

$

Not available

5:2:5:1

Exmark 1-633584

Bearing-Cup

$9.49

$

In Stock, Qty 20+

0

5:3

Exmark 325-39

Screw-HH

$18.99

$

In Stock, Qty 9

0

5:4

Exmark 3296-23

Nut-Lock, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-4882

Cap-Grease

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3296-51

Nut-Lock, NI

$6.49

$

In Stock, Qty 20+

0
