LZE751GKA60RA1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

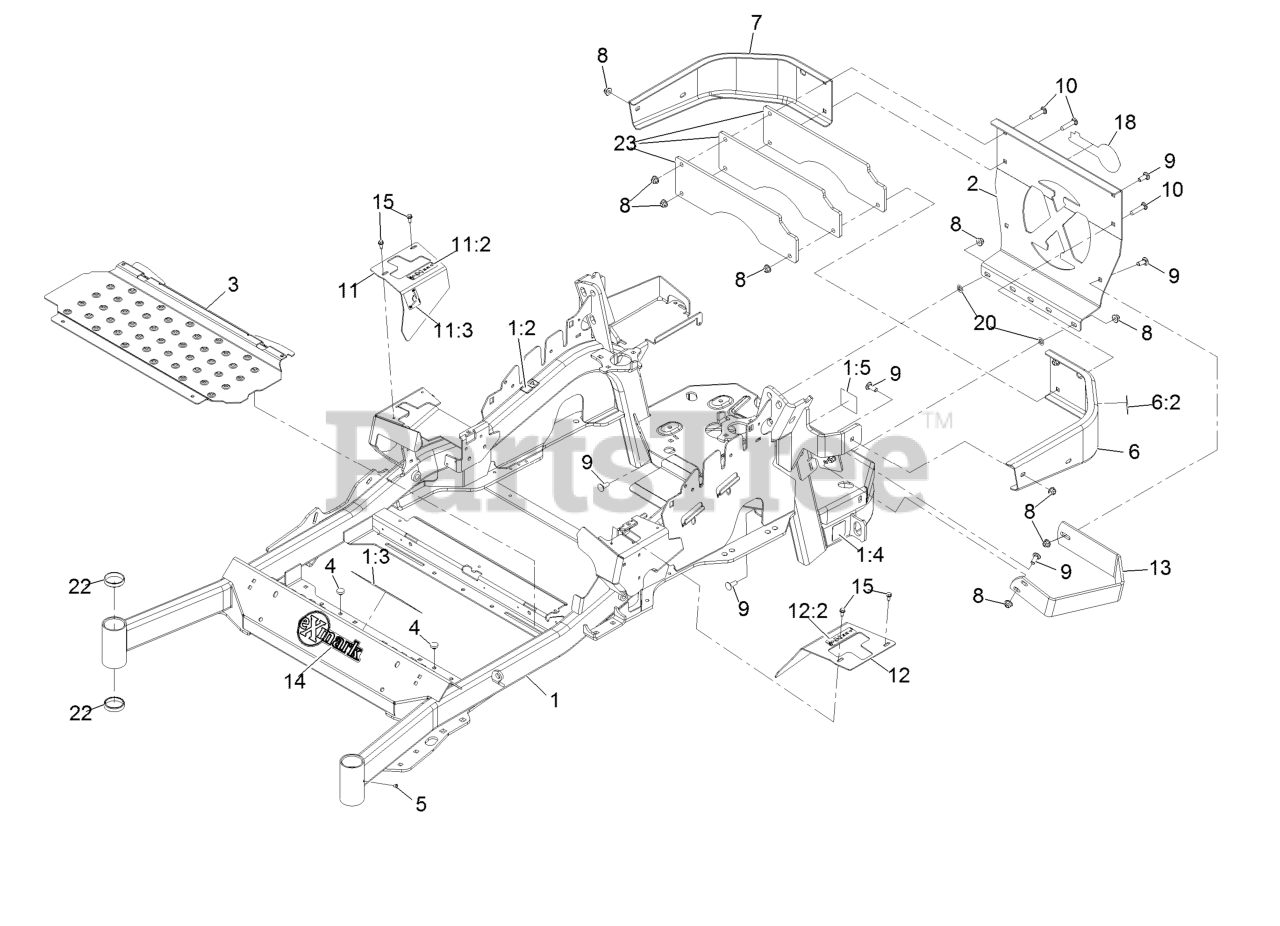

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-9720

Mainframe ASM

$1835.99

$

Usually ships in 3-6 days

0

1:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

1:3

Exmark 132-0871

Decal-Danger

$8.49

$

In Stock, only 2 left!

0

1:4

Exmark 106-2655

Decal-Hazard, Pinched Finger

$1.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

Decal-Spark Arrester

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

Plate,Rear Guard

$163.99

$

Usually ships in 3-6 days

0

3

Exmark 116-8898-01

Floorpan

$106.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 20+

0

5

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 20+

0

6

Exmark 116-0180

LH Bumper ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

7

Exmark 116-0057-03

Bumper-RH

$213.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

10

Exmark 3231-29

Bolt-Carriage 3/8-16 X 1 3/4

$7.49

$

In Stock, Qty 10

0

11

Exmark 116-5899

RH Motion Control Cover ASM

$47.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

Decal-Control, Motion

$20.99

$

Usually ships in 3-6 days

0

11:3

Exmark 116-5988

Decal-Park Brake, CE

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0580

LH Motion Control Cover ASM

$27.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

Decal-Control, Motion

$20.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2067-03

Guard-Muffler

$58.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2274

Decal-Exmark

$25.99

$

In Stock, only 2 left!

0

15

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 12

0

18

Exmark 126-6965

Decal-Exmark Logo
(Superseded to 126-6877)

$7.49

$

In Stock, Qty 20+

0

20

Exmark 107-3154

Nut-Push 3/8-16

$1.49

$

In Stock, Qty 12

0

22

Exmark 1-543508

Cup-Bearing Tapered Roller

$7.99

$

In Stock, Qty 20+

0

23

Exmark 126-4772-03

Plate-Weight, 6 Lb

$50.99

$

Usually ships in 3-6 days

0
