LZE751GKA60RA1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Seat Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

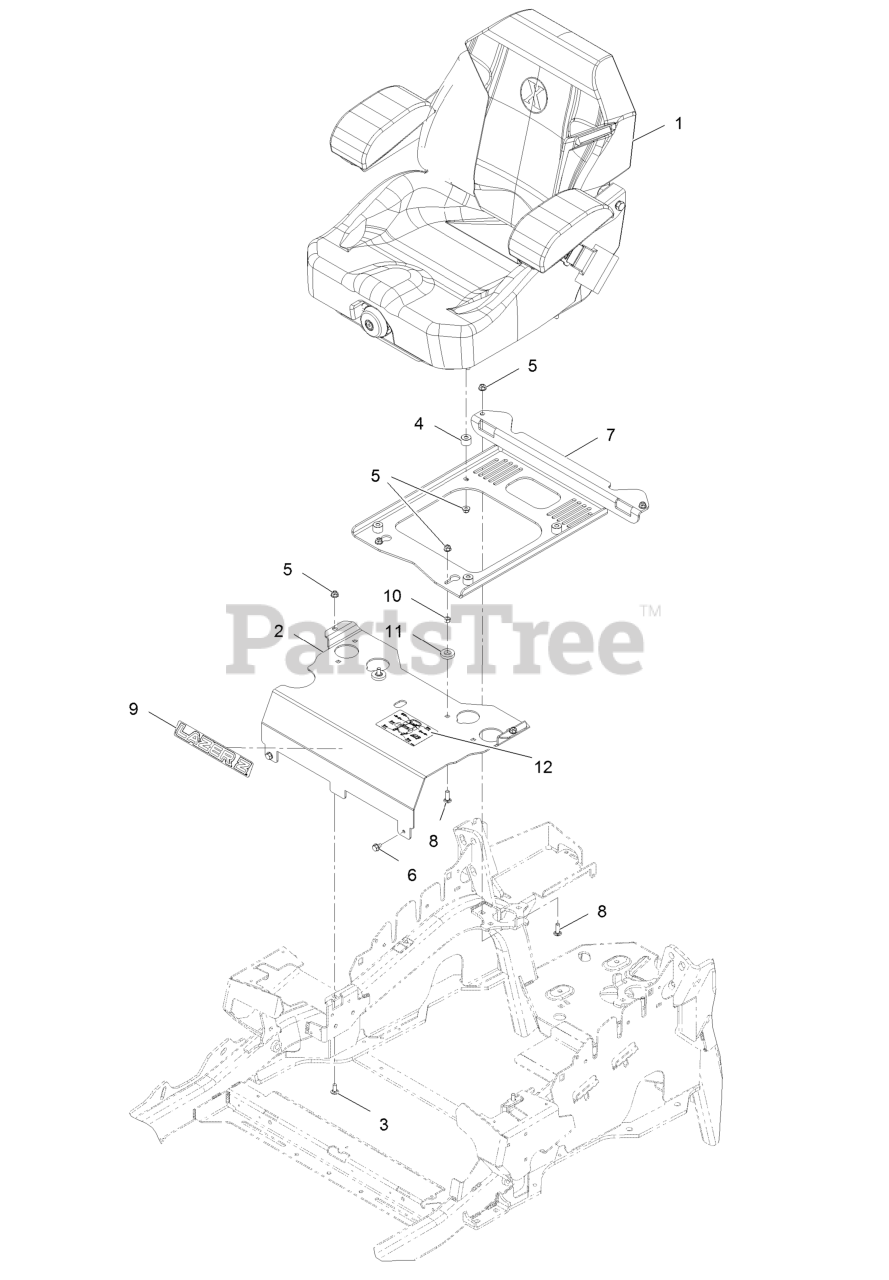

Seat Assembly Parts Diagram

  • Title

1

Exmark 116-8912

Kit-Suspension Seat

$1612.99

$

Usually ships in 3-6 days

0

2

Exmark 116-2130-03

Panel-Front, Seat Mount
(Superseded to 116-2323)

$234.99

$

Usually ships in 3-6 days

0

3

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

4

Exmark 116-9329

Spacer

$11.99

$

In Stock, only 3 left!

0

5

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 9266934

Screw-HWH 5/16 X 1/2 Tf

$8.99

$

In Stock, Qty 7

0

7

Exmark 116-0192-03

Plate-Support, Seat

$249.99

$

Usually ships in 3-6 days

0

8

Exmark 3230-22

Bolt-Carriage 5/16-18 X 1 Sp
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

9

Exmark 126-6574

Decal, Lazer Model

$5.99

$

In Stock, Qty 20+

0

10

Exmark 3217-6

Nut-Hex 5/16-18

$1.49

$

In Stock, Qty 5

0

11

Exmark 1-323539

Spacer-Blade Drive

$2.49

$

In Stock, Qty 20+

0

12

Exmark 114-4465

Decal-Service Aid

$26.99

$

Usually ships in 3-6 days

0
