LZE801GKA604B1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 316000000 - 399999999) (2016) Park Brake Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

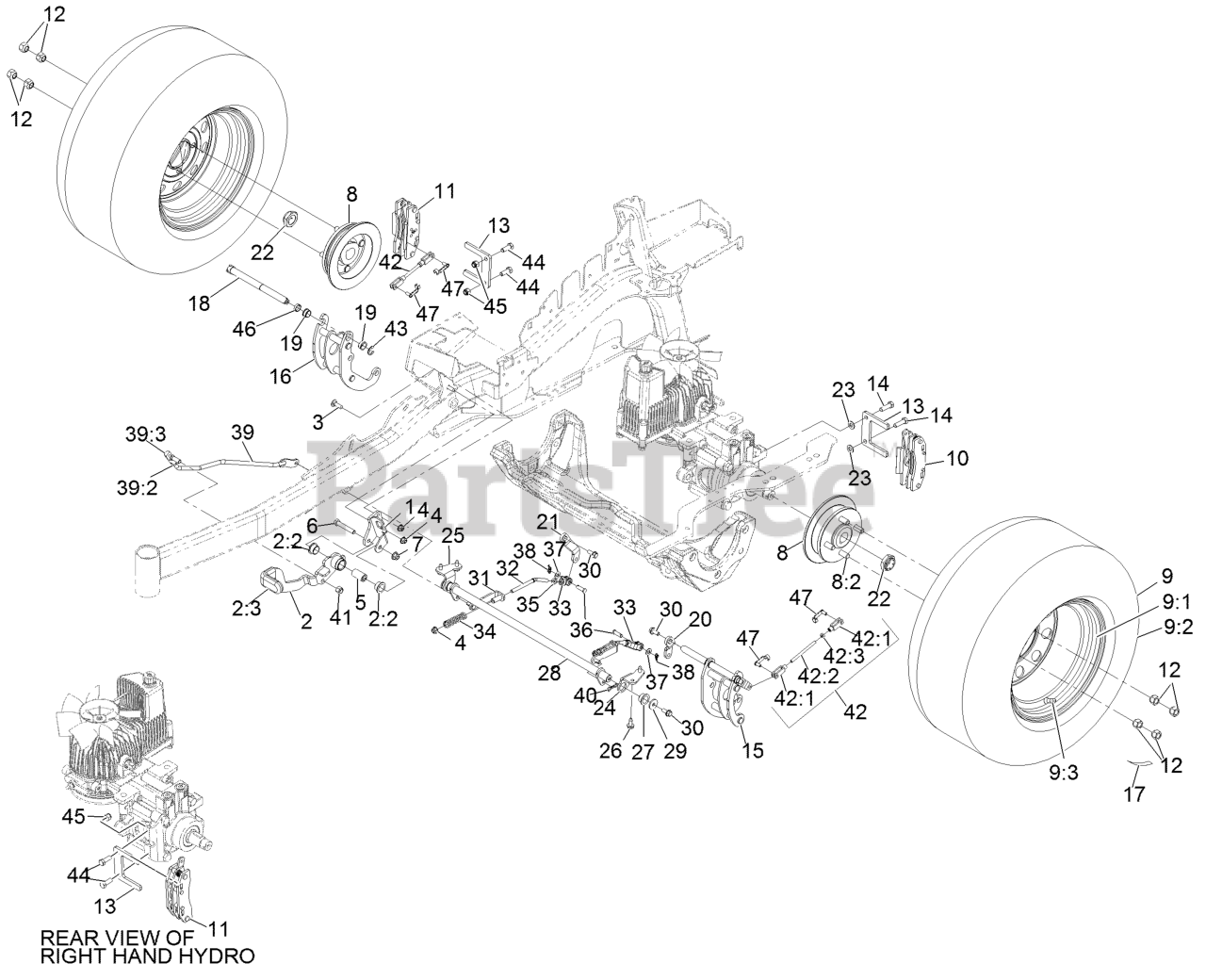

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 116-9096-01

BRACKET-MOUNT

$30.99

$

Usually ships in 3-6 days

0

2

Exmark 131-4623

BRAKE LEVER ASM W/ GRIP
(Superseded to 135-7982)

$71.99

$

Usually ships in 3-6 days

0

2:2

Exmark 109-8054

BUSHING-FLANGE

$5.99

$

In Stock, Qty 20+

0

2:3

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0

3

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-9117

HANDLE-PIVOT, BRAKE

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$127.99

$

In Stock, Qty 20+

0

8:2

Exmark 116-1696

STUD-WHEEL

$4.49

$

In Stock, Qty 20+

0

9

Exmark 116-8294

ASM-WHEEL AND TIRE

$449.99

$

Usually ships in 3-6 days

0

9:1

Exmark 116-8295

ASM-RIM 60

$187.99

$

In Stock, Qty 20+

0

9:2

Exmark 116-8296

TIRE-DRIVE

$381.99

$

Usually ships in 3-6 days

0

9:3

Exmark 232-27

Stem-Valve

$

$

Not available

10

Exmark 109-2889

CALIPER-BRAKE

$207.99

$

In Stock, Qty 20+

0

11

Exmark 116-9103

CALIPER-BRAKE, RH

$210.99

$

In Stock, only 4 left!

0

12

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

13

Exmark 109-0958

PLATE-MOUNT, BRAKE

$17.99

$

In Stock, Qty 9

0

14

Exmark 92-5727

SCREW-LOCK, PATCH

$3.99

$

In Stock, Qty 9

0

15

Exmark 126-4248

MOUNT-BELLCRANK, LH

$41.99

$

In Stock, only 2 left!

0

16

Exmark 126-4249

MOUNT-BELLCRANK, RH

$42.99

$

Usually ships in 3-6 days

0

17

Exmark 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.99

$

In Stock, Qty 11

0

18

Exmark 126-4251

BELLCRANK

$25.99

$

In Stock, only 2 left!

0

19

Exmark 126-6199

BUSHING

$8.49

$

In Stock, only 3 left!

0

20

Exmark 126-3715

ARM-INNER, LH

$6.99

$

Usually ships in 3-6 days

0

21

Exmark 126-3716

ARM-INNER, RH

$6.99

$

Usually ships in 3-6 days

0

22

Exmark 116-1399

LOCKNUT

$15.99

$

In Stock, Qty 10

0

23

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 116-9681

MOUNT-PIVOT, LH

$5.99

$

In Stock, Qty 5

0

25

Exmark 116-9682

MOUNT-PIVOT, RH

$5.99

$

In Stock, Qty 5

0

26

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

27

Exmark 109-8054

BUSHING-FLANGE

$5.99

$

In Stock, Qty 20+

0

28

Exmark 116-9080

SHAFT-CROSS
(Superseded to 135-7800)

$73.99

$

In Stock, only 1 left!

0

29

Exmark 115-7109

WASHER-FLAT

$1.49

$

In Stock, Qty 13

0

30

Exmark 98-9940

SCREW-HHF

$2.49

$

In Stock, Qty 10

0

31

Exmark 116-9608

BRACKET-L

$55.99

$

Usually ships in 3-6 days

0

32

Exmark 116-9086

LINKAGE-MID

$6.49

$

In Stock, only 1 left!

0

33

Exmark 126-3693

YOKE-OFFSET

$27.99

$

Usually ships in 3-6 days

0

34

Exmark 116-9085

SPRING-COMPRESSION

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

36

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

37

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

38

Exmark 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 3 left!

0

39

Exmark 116-9102

FRONT LINKAGE ASM
(Superseded to 135-7805)

$76.99

$

Usually ships in 3-6 days

0

39:2

Exmark 94-7572

END-TIE ROD, RH

$37.99

$

In Stock, Qty 5

0

39:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

40

Exmark 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 8

0

41

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

42

Exmark 126-7587

REAR LINKAGE ASM

$25.99

$

In Stock, only 4 left!

0

42:1

Exmark 126-7588

126-7587
(Superseded to 126-7587)

$25.99

$

In Stock, only 4 left!

0

42:2

Exmark 116-9069

126-7587
(Superseded to 126-7587)

$25.99

$

In Stock, only 4 left!

0

42:3

Exmark 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

43

Exmark 32120-19

E-RING

$2.99

$

In Stock, only 3 left!

0

44

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

45

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

46

Exmark 126-6200

SPACER

$3.49

$

In Stock, only 2 left!

0

47

Exmark 126-6395

PIN-CLEVIS, SPRING

$9.49

$

In Stock, Qty 5

0
