LZF 5227 (966956701) - Husqvarna 52" Zero-Turn Mower (2008-04) Blower Assembly Parts Diagram

52" Zero-Turn Mower

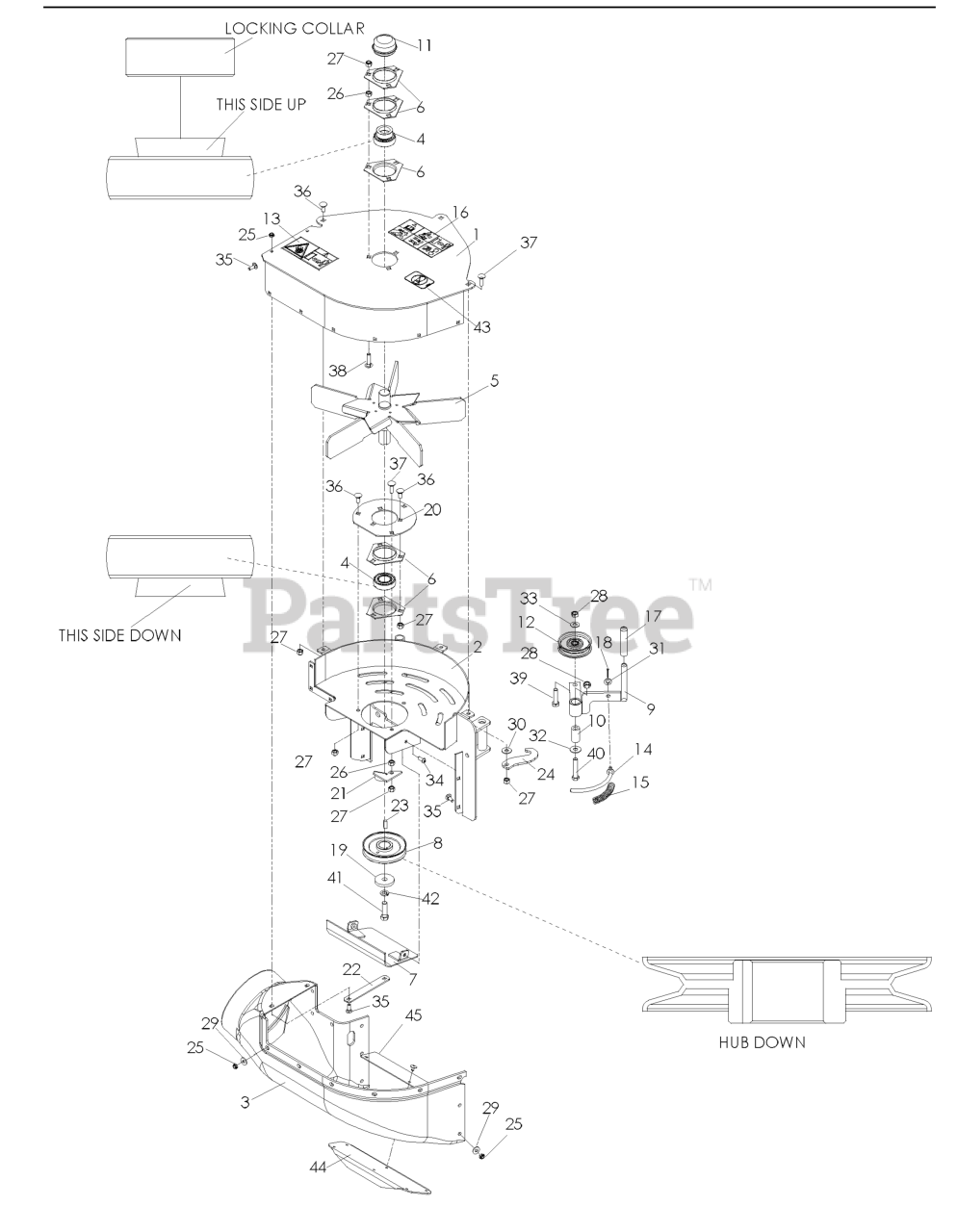

Blower Assembly Parts Diagram

  • Title

1

Husqvarna 539111331

FAN COVER W/DECALS

$

$

Not available

2

Husqvarna 539108941

BLOWER HOUSING

$

$

Not available

3

Husqvarna 539109900

LOWER HOUSING

$182.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106786

BEARING

$77.99

$

In Stock, only 1 left!

0

5

Husqvarna 539110111

FAN

$

$

Not available

6

Husqvarna 539102691

FLANGETTE

$

$

Not available

7

Husqvarna 539108301

COVER PLATE

$

$

Not available

8

Husqvarna 539106713

SHEAVE, 4"

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539106715

IDLER ARM

$

$

Not available

10

Husqvarna 539101836

SLEEVE BUSHING

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102535

CAP, GREASE
(Superseded to 595281301)

$5.99

$

In Stock, Qty 16

0

12

Husqvarna 539106721

IDLER

$28.99

$

In Stock, only 2 left!

0

13

Husqvarna 539106741

DECAL, SEVERING

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539106801

SPRING ROD

$121.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106720

SPRING

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105785

DECAL, WARNING

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101050

GRIP, VINYL

$5.49

$

In Stock, Qty 5

0

18

Husqvarna 539990037

PIN, COTTER 3/32 x 3/4

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

20

Husqvarna 539106809

BEARING PLATE

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539106811

BELT GUIDE

$

$

Not available

22

Husqvarna 539106812

BACKING

$

$

Not available

23

Husqvarna 539102067

KEY 1/4 SQ x 3/4

$6.99

$

In Stock, only 4 left!

0

24

Husqvarna 539111303

IDLER ARM KEEPER

$

$

Not available

25

Husqvarna 539108120

NUT 1/4-20, THIN, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990196

NUT 5/16-18 HEX NYLOC

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 539990546

NUT 3/8-16 CENTERLOCK

$

$

Not available

29

Husqvarna 539990598

WASHER 1/4

$

$

Not available

30

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 539990188

WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990517

WASHER 3/8 STD FLT

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 539111229

SCREW, 1/4-20 x 5/8 BTN

$

$

Not available

35

Husqvarna 539990074

RHSNB 1/4-20 x 3/4 GR2
(Superseded to 596238401)

$3.49

$

In Stock, only 3 left!

0

36

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539100472

RHSNB 5/16-18 x 1 1/4

$

$

Not available

39

Husqvarna 539990655

HCS 3/8-16 x 1 1/2

$4.99

$

In Stock, only 1 left!

0

40

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 539100141

HCS 7/16-20 x 1 1/2

$

$

Not available

42

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

43

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$6.99

$

In Stock, only 2 left!

0

44

Husqvarna 539111340

BLOWER SUPPORT

$

$

Not available

45

Husqvarna 539110058

PLATE, BLOWOUT

$

$

Not available
