LZF 5227 (966956701) - Husqvarna 52" Zero-Turn Mower (2008-04) Seat Parts Diagram

52" Zero-Turn Mower

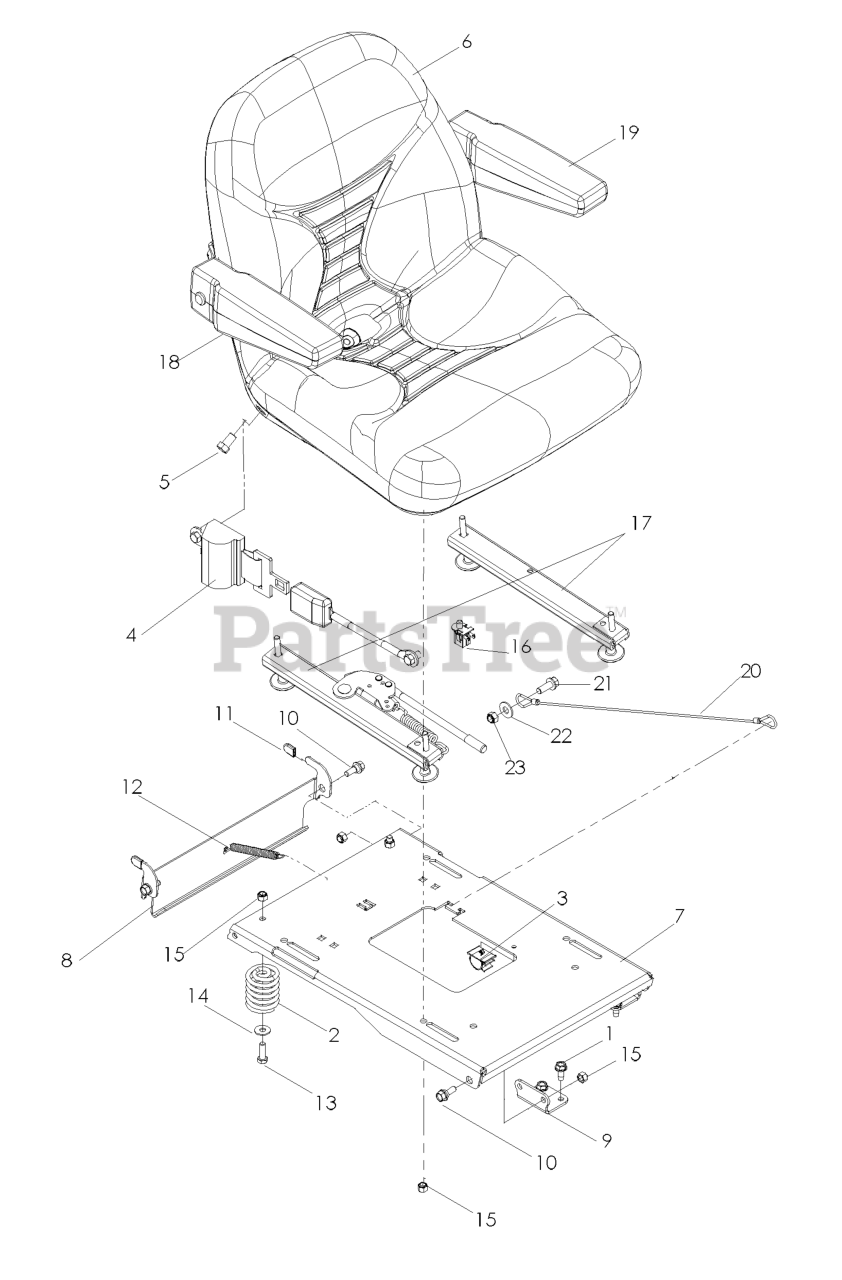

Seat Parts Diagram

  • Title

1

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

2

Husqvarna 539110300

SPRING, SEAT
(Superseded to 532124181)

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.99

$

In Stock, only 1 left!

0

4

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$143.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539112034

HCS 7/16-20 X .75 GD 5

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539130873

SEAT
(Superseded to 501580402)

$968.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539130785

PAN, SEAT - BLACK

$

$

Not available

8

Husqvarna 539130787

LATCH, SEAT - BLACK

$

$

Not available

9

Husqvarna 539130789

PIVOT, SEAT PAN

$

$

Not available

10

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539130898

GRIP, VINYL, .09 X .495 X.75

$

$

Not available

12

Husqvarna 539977250

SPRING

$

$

Not available

13

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 19

0

14

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$15.99

$

In Stock, Qty 14

0

17

Husqvarna 539112037

TRACK ADJUSTMENT KIT

$

$

Not available

18

Husqvarna 539112035

ARMREST KIT, RT SQUARE END
(Superseded to 574201601)

$119.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112036

ARMREST KIT, LT SQUARE END
(Superseded to 574201602)

$107.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539103247

SEAT LANYARD

$20.99

$

In Stock, only 1 left!

0

21

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$4.99

$

In Stock, Qty 10

0

22

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
