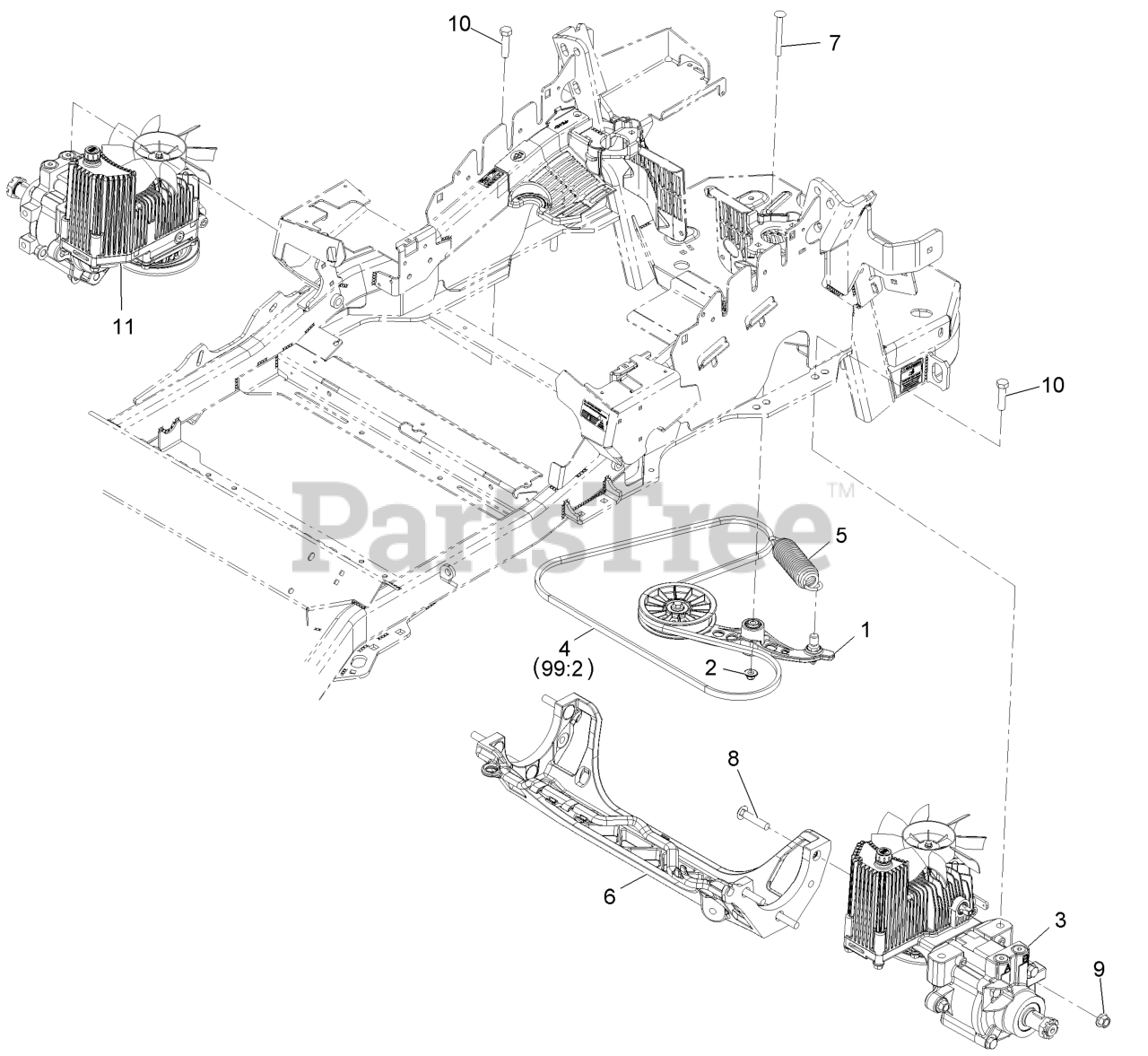

LZS27KC604CA - Exmark 60" Lazer Z S-Series Zero-Turn Mower, 27hp Kohler, CARB (SN: 920000 - 999999) (2011) Hydraulic Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, 27hp Kohler, CARB

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

PUMP IDLER ASM

$213.99

$

In Stock, Qty 11

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-1324

126-1323
(Superseded to 135-7903)

$3380.99

$

In Stock, Qty 5

0

4

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 20+

0

6

Exmark 109-9375

116-7558
(Superseded to 116-7558)

$205.99

$

In Stock, only 3 left!

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, Qty 11

0

8

Exmark 3233-34

SCREW-CARR

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

11

Exmark 116-1325

126-1324
(Superseded to 135-7904)

$3380.99

$

Usually ships in 3-6 days

0

99

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 19

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

Bottle,Oil 1 Gallon Hydraulic

Note: Not illustrated

$70.99

$

In Stock, Qty 15

0

99

Exmark 116-3270

126-8103
(Superseded to 126-8103)

Note: Not illustrated

$241.99

$

In Stock, Qty 10

0

99:1

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 19

0

99:2

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

99:3

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+

0
