LZS27KC604SS - Exmark 60" Lazer Z S-Series Zero-Turn Mower, 27hp Kohler (SN: 920000 - 999999) (2011) Rear Wheel and Park Brake Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, 27hp Kohler

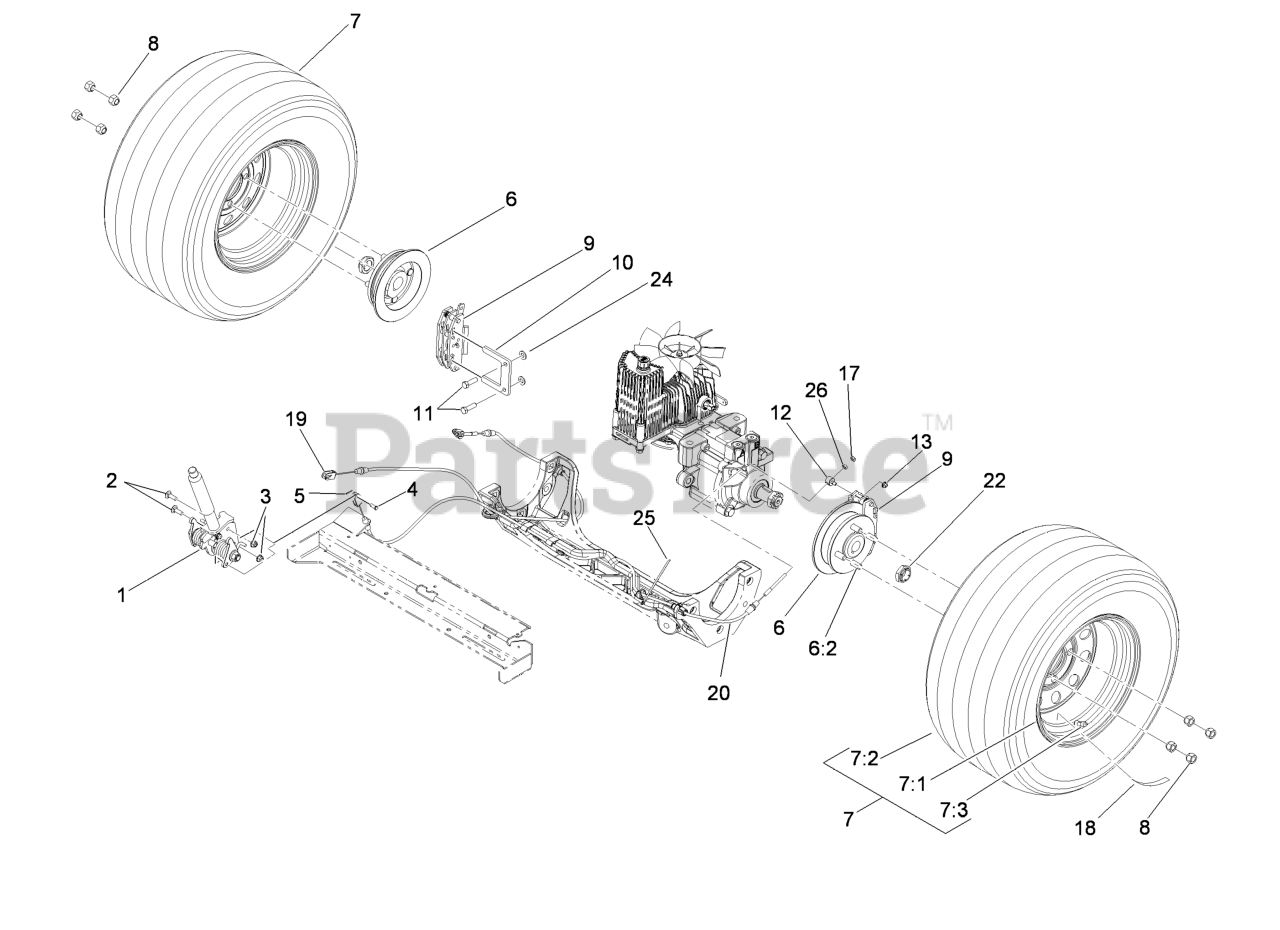

Rear Wheel and Park Brake Assembly Parts Diagram

  • Title

1

Exmark 116-1878

BRAKE HANDLE ASM

$299.99

$

Usually ships in 3-6 days

0

2

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 60-1730

PIN-CLEVIS

$5.49

$

In Stock, only 2 left!

0

5

Exmark 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

6

Exmark 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$117.99

$

In Stock, Qty 7

0

6:2

Exmark 116-1696

STUD-WHEEL

$5.49

$

In Stock, Qty 20+

0

7

Exmark 115-3588

WHEEL AND TIRE ASM

$440.99

$

Usually ships in 3-6 days

0

7:1

Exmark 109-2871

RIM

$322.99

$

Usually ships in 3-6 days

0

7:2

Exmark 1-633993

TIRE

$330.99

$

Usually ships in 3-6 days

0

7:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

9

Exmark 109-2889

CALIPER-BRAKE

$178.99

$

In Stock, only 2 left!

0

10

Exmark 109-0958

PLATE-MOUNT, BRAKE

$15.99

$

In Stock, Qty 14

0

11

Exmark 92-5727

SCREW-LOCK, PATCH

$3.49

$

In Stock, Qty 11

0

12

Exmark 112-8379

SWIVEL

$11.99

$

In Stock, Qty 12

0

13

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, only 4 left!

0

18

Exmark 116-2643

126-2055
(Superseded to 126-2055)

$6.49

$

In Stock, Qty 15

0

19

Exmark 115-3584

CABLE

$59.99

$

In Stock, Qty 6

0

20

Exmark 115-3585

CABLE

$59.99

$

In Stock, only 1 left!

0

22

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 3 left!

0

24

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 116-0940

TIE-CABLE

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 3219-1

NUT-HEX

$0.99

$

In Stock, Qty 11

0
