LZS29PKA724 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, 29hp Kawasaki Propane (SN: 920000 - 999999) (2011) Main Frame Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, 29hp Kawasaki Propane

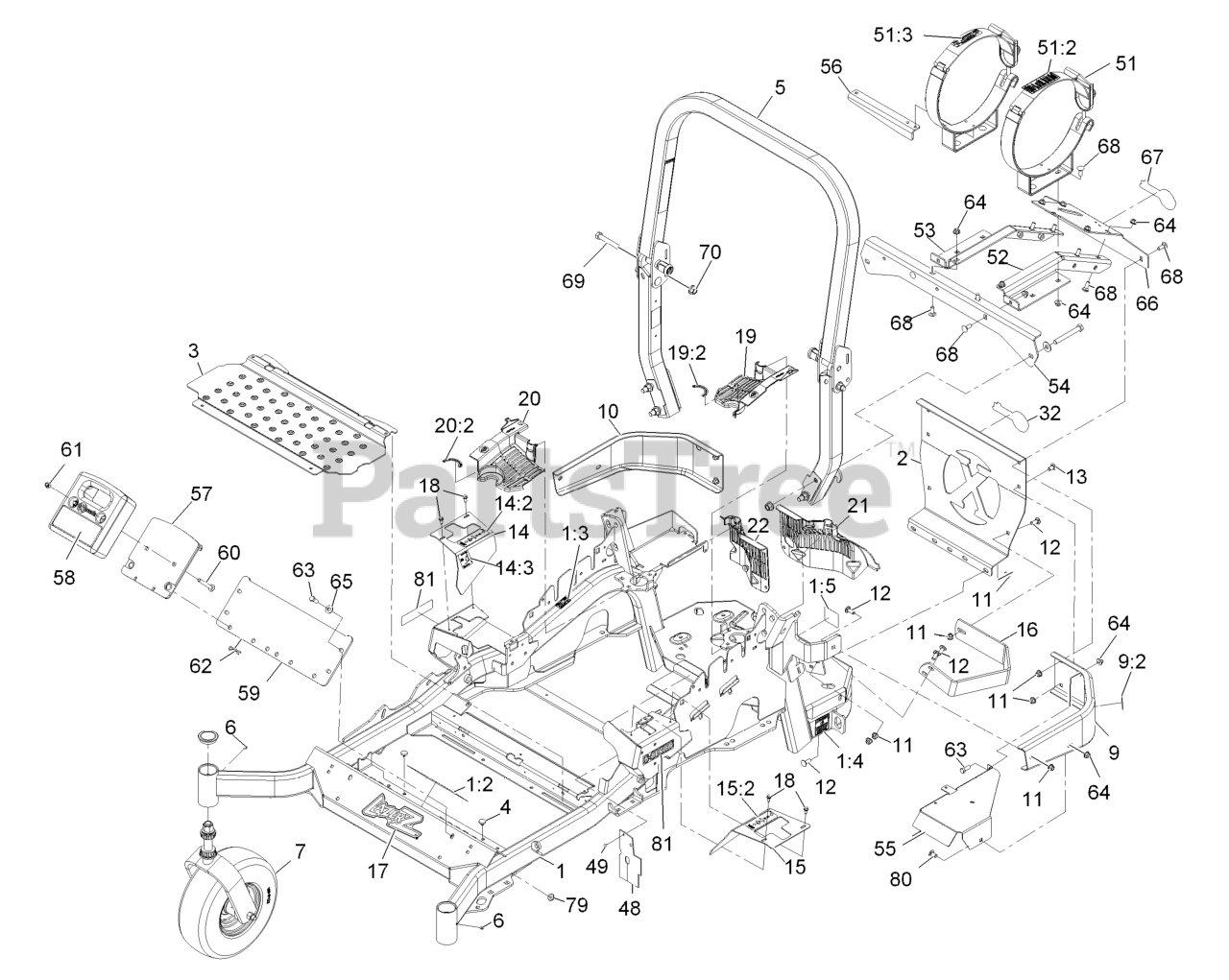

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-2126

MAIN FRAME ASM

$3759.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-3303

DECAL-SLOPE

$14.99

$

In Stock, only 1 left!

0

1:3

Exmark 103-2076

DECAL-CAUTION

$6.49

$

Usually ships in 3-6 days

0

1:4

Exmark 116-0205

DECAL-BELT DRIVE

$7.99

$

In Stock, only 1 left!

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$163.99

$

Usually ships in 3-6 days

0

3

Exmark 116-0024-01

116-8898-01
(Superseded to 116-8898-01)

$106.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 20+

0

5

Exmark 116-2882

ROPS ASM

$446.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

7

Asm,Front Caster W/Fork

Note: Not serviced separately

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

9:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

13

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Exmark 116-0579

116-5899
(Superseded to 116-5899)

$47.99

$

Usually ships in 3-6 days

0

14:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, Qty 5

0

14:3

Exmark 109-7929

116-5944
(Superseded to 116-5944)

$13.99

$

In Stock, Qty 14

0

15

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$27.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, Qty 5

0

16

Exmark 116-0043-03

126-2067-03
(Superseded to 126-2067-03)

$58.99

$

Usually ships in 3-6 days

0

17

Exmark 103-3113

DECAL,LAZER MODEL

$11.99

$

In Stock, Qty 14

0

18

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

19

Exmark 116-0170

LH HYDRO GUARD ASM

$83.99

$

In Stock, only 4 left!

0

19:2

Exmark 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

20

Exmark 116-0171

RH HYDRO GUARD ASM

$83.99

$

In Stock, only 1 left!

0

20:2

Exmark 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

21

Exmark 109-9057

GUARD-HYDRO, REAR (LH)

$22.99

$

In Stock, Qty 6

0

22

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$23.99

$

In Stock, Qty 9

0

32

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 15

0

48

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

49

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 5

0

51

Exmark 116-2817

TANK BRACKET ASM (SET)

$330.99

$

Usually ships in 3-6 days

0

51:2

Exmark 109-9875

DECAL-LPG WARNING

$11.99

$

Usually ships in 3-6 days

0

51:3

Exmark 116-1714

DECAL-LPG 43.5LB TANK

$28.99

$

Usually ships in 3-6 days

0

52

Exmark 116-2819-03

LH LPG FRAME ASM

$143.99

$

Usually ships in 3-6 days

0

53

Exmark 116-2820-03

RH LPG FRAME ASM

$143.99

$

Usually ships in 3-6 days

0

54

Exmark 116-2285-03

SUPPORT-LPG FRAME, FRONT

$129.99

$

Usually ships in 3-6 days

0

55

Exmark 116-4017-03

PANEL-LPG, AC

$84.99

$

Usually ships in 3-6 days

0

56

Exmark 116-2301-03

PLATE-INDEX, LPG TANK

$

$

Not available

57

Exmark 103-6364-01

WLD,WEIGHT MOUNT

$122.99

$

Usually ships in 3-6 days

0

58

Exmark 103-6367-01

WEIGHT,CAST 36LB

$401.99

$

Usually ships in 3-6 days

0

59

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$76.99

$

Usually ships in 3-6 days

0

60

Exmark 3231-10

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

61

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

62

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

63

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

64

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

65

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

66

Exmark 116-2553-03

SUPPORT-REAR FRAME, LPG

$96.99

$

Usually ships in 3-6 days

0

67

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 15

0

68

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

69

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

70

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

79

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

80

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

81

Exmark 116-3884

DECAL-S-SERIES

$7.49

$

In Stock, only 2 left!

0
