LZS651CKA484A2 - Exmark 48" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Fuel Assembly Parts Diagram

48" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX

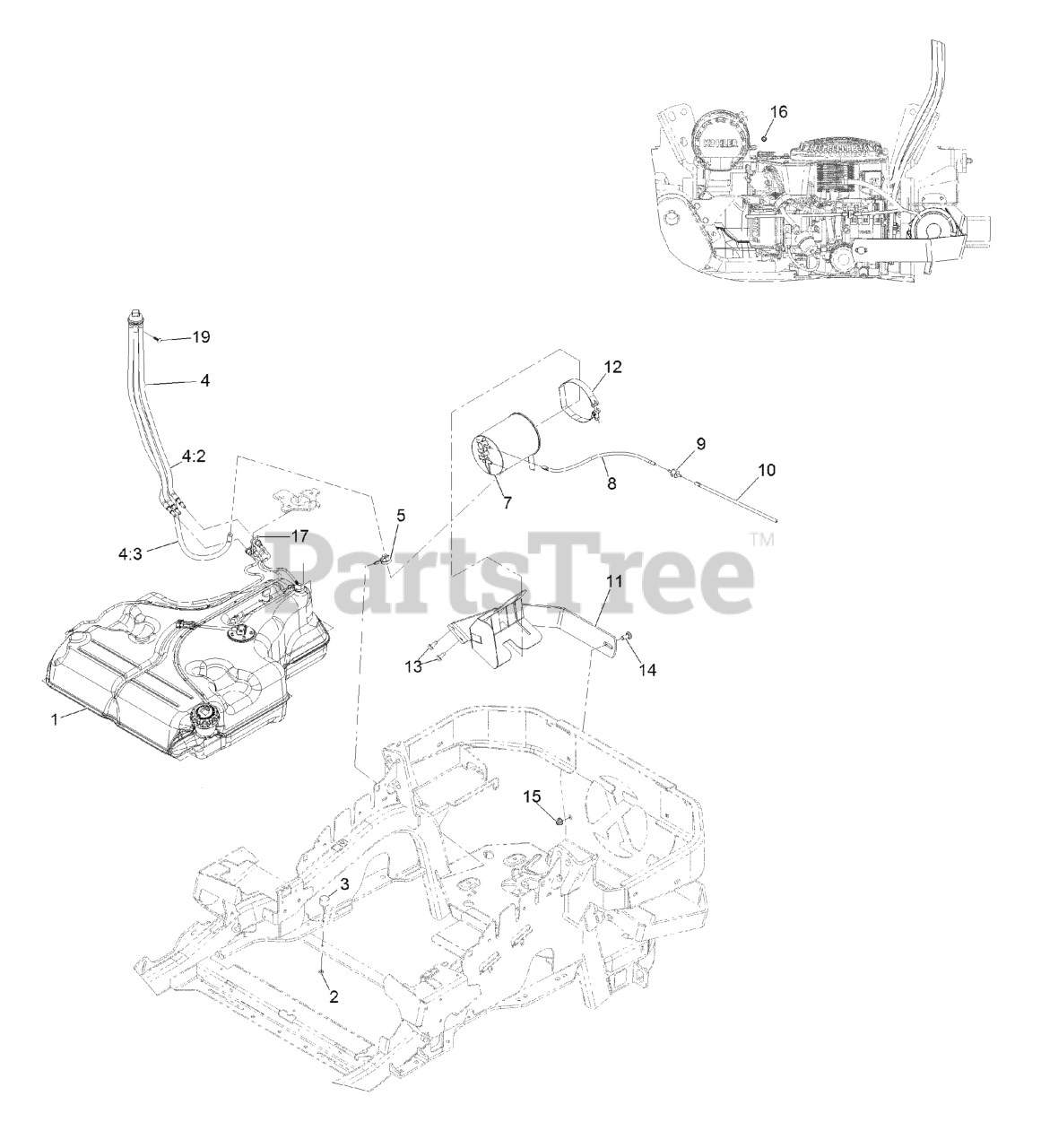

Fuel Assembly Parts Diagram

  • Title

1

Exmark 126-6494

135-0643
(Superseded to 135-0643)

$693.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 116-6380

1-523420
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 127-0583

FUEL MANIFOLD VENT ASM

$68.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 9

0

4:3

Exmark 108-5376

HOSE-FUEL

$42.99

$

In Stock, only 1 left!

0

5

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

7

Exmark 116-1442

CANISTER-CARBON, 1200CC

$157.99

$

Usually ships in 3-6 days

0

8

Exmark 116-2231

HOSE-VENT, FORMED

$34.99

$

Usually ships in 3-6 days

0

9

Exmark 116-2232

VALVE-CONTROL, VACUUM

$25.99

$

In Stock, only 3 left!

0

10

Exmark 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

11

Exmark 116-1433-03

MOUNT-CANISTER

$208.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2228

CLAMP, T-BOLT

$46.99

$

Usually ships in 3-6 days

0

13

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

14

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

17

Exmark 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

18

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0
