LZS651KA484 - Exmark 48" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX651V (SN: 314000000 - 314999999) (2014) Fuel Tank Assembly No. 116-3979 Parts Diagram

48" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX651V

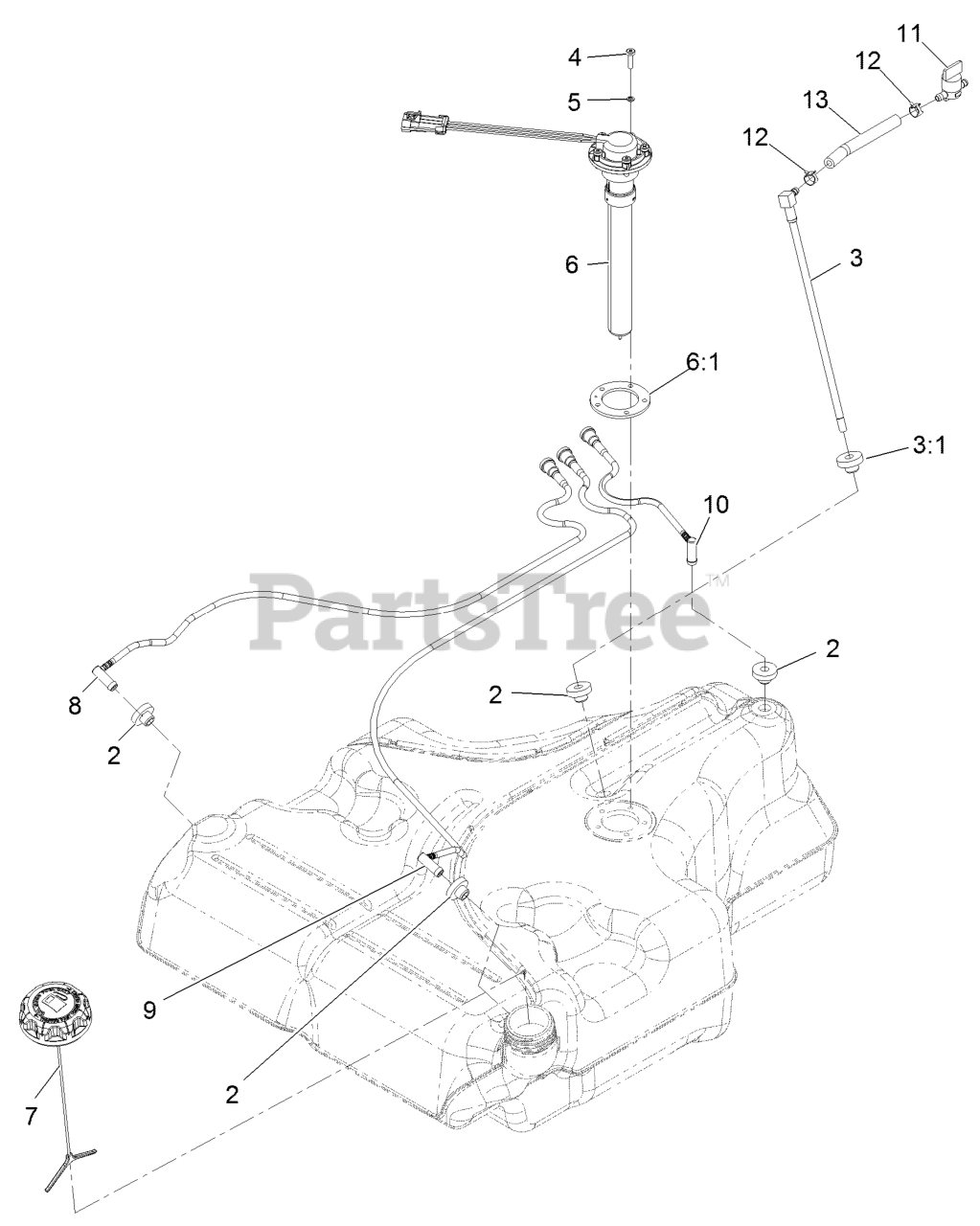

Fuel Tank Assembly No. 116-3979 Parts Diagram

  • Title
2

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

3

Exmark 116-2459

FUEL LINE KIT (WITH GROMMET)

$39.99

$

In Stock, only 2 left!

0

3:1

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

4

Exmark 9107944

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

6

Exmark 116-0003

126-7728
(Superseded to 126-7728)

$168.99

$

In Stock, only 3 left!

0

6:1

Exmark 109-9620

GASKET-SENDER, FUEL

$14.99

$

In Stock, only 2 left!

0

7

Exmark 126-1789

CAP-FUEL, RATCHETING

$36.99

$

In Stock, only 2 left!

0

8

Exmark 116-2460

RH VENT LINE KIT (WITH GROMMET)

$41.99

$

Usually ships in 3-6 days

0

9

Exmark 116-2461

LH VENT LINE KIT (WITH GROMMET)

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 116-2462

REAR VENT LINE KIT (WITH GROMMET)

$27.99

$

Usually ships in 3-6 days

0

11

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

12

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Exmark 109-0650

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0
