LZS740PKC604 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 314000000 - 314999999) (2014) Seat Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

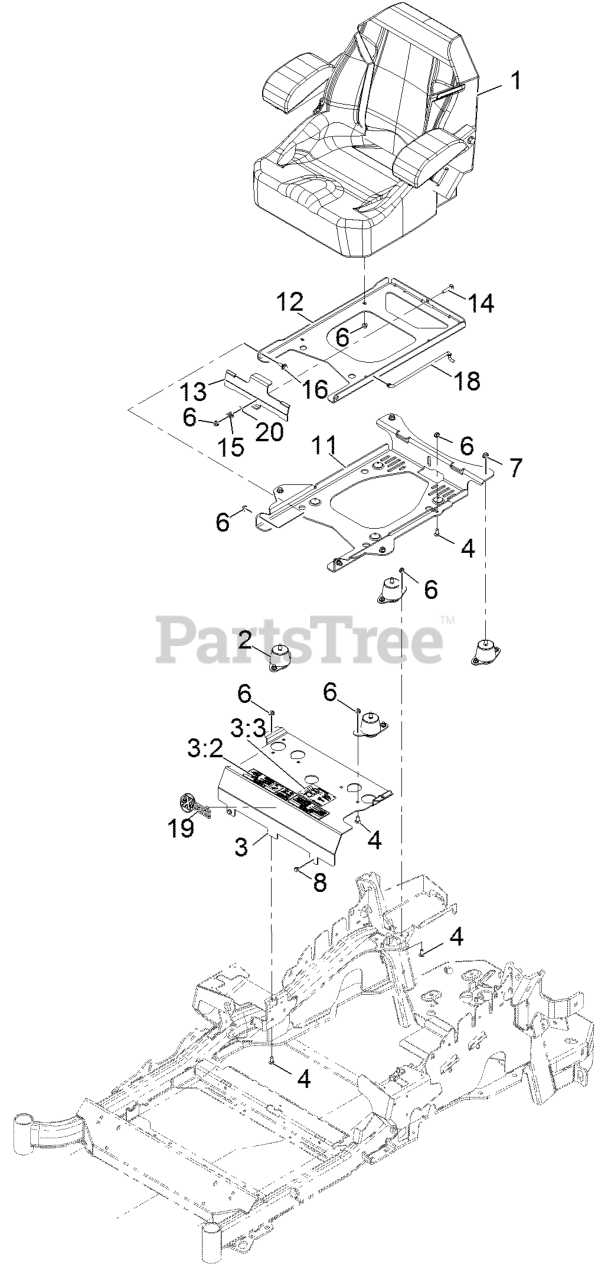

Seat Assembly Parts Diagram

  • Title

1

Exmark 116-4474

126-5801
(Superseded to 126-5801)

$1532.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9034

ISOLATOR-SEAT

$77.99

$

In Stock, only 2 left!

0

3

Exmark 116-3327

MOUNT-SEAT

$

$

Not available

3:2

Exmark 109-7069

DECAL-CONSOLE

$18.99

$

Usually ships in 3-6 days

0

3:3

Exmark 116-0211

DECAL-SERVICE AID

$

$

Not available

4

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

11

Exmark 116-3860-03

PLATE-TILT, SEAT SUPPORT

$207.99

$

Usually ships in 3-6 days

0

12

Exmark 116-3859-03

PLATE-FRAME, SEAT

$146.99

$

Usually ships in 3-6 days

0

13

Exmark 109-9881-03

PLATE-LATCH, SEAT

$22.99

$

Usually ships in 3-6 days

0

14

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

15

Exmark 107-3017

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 116-1297

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

18

Exmark 116-0070

ROD-PROP

$25.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 5

0

20

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
