LZS740PKC60400 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 316000000 - 399999999) (2016) Main Frame Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

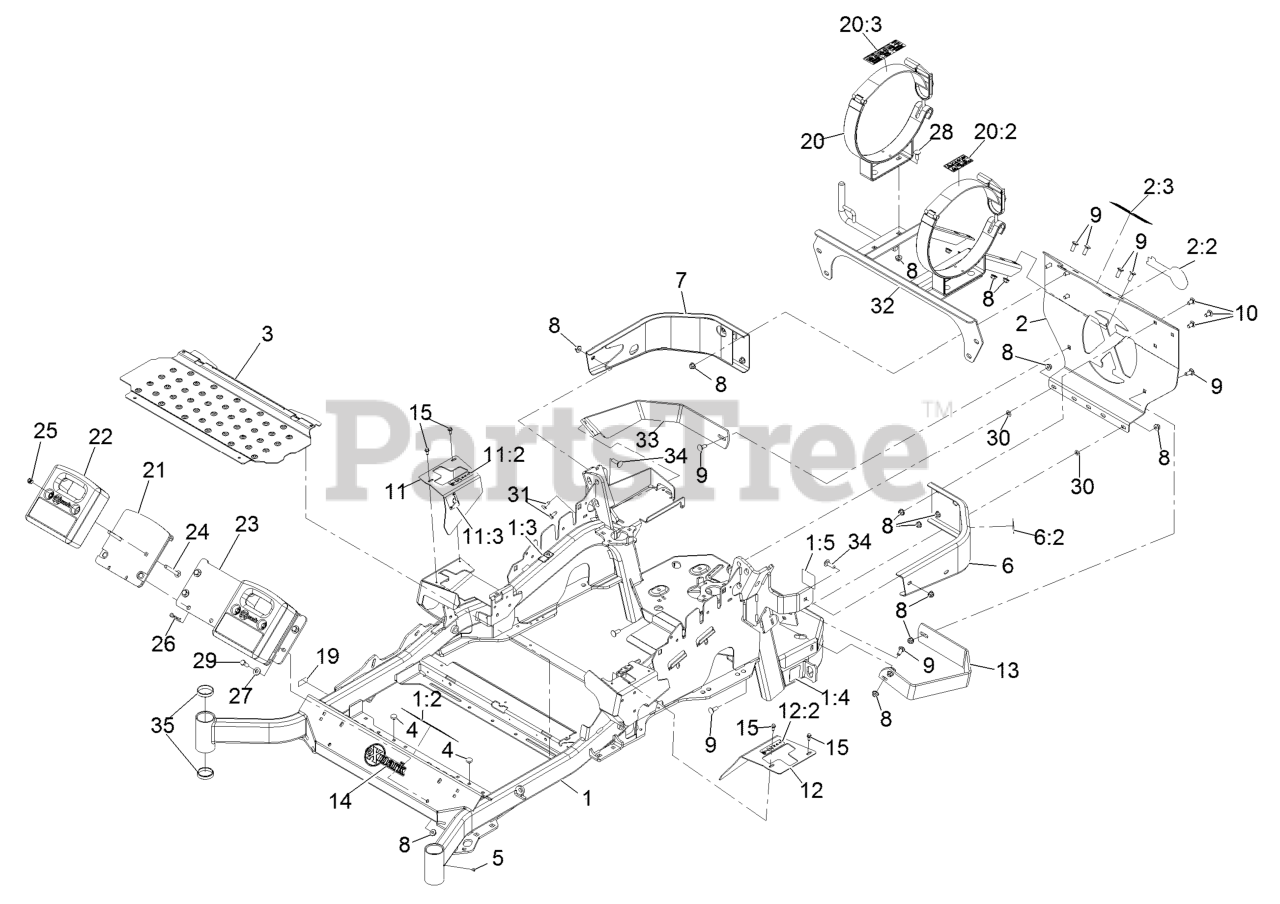

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 126-6619

116-5902
(Superseded to 142-7265)

$2752.99

$

Usually ships in 3-6 days

0

1:2

Exmark 132-0871

DECAL-DANGER

$10.99

$

In Stock, only 2 left!

0

1:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.99

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9304

REAR GUARD-LP W/DECALS

$270.99

$

Usually ships in 3-6 days

0

2:2

Exmark 126-6965

DECAL-EXMARK LOGO
(Superseded to 126-6877)

$8.49

$

In Stock, only 1 left!

0

2:3

Exmark 126-3277

Decal-LPG Fuel Tank Replacement

$8.49

$

Usually ships in 3-6 days

0

3

Exmark 116-8898-01

FLOORPAN

$115.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

5

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

6

Exmark 116-0180

LH BUMPER ASM

$162.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

7

Exmark 116-0057-03

BUMPER-RH

$240.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

10

Exmark 3231-21

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$53.99

$

In Stock, only 2 left!

0

11:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

11:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$30.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

13

Exmark 126-2067-03

GUARD-MUFFLER

$66.99

$

Usually ships in 3-6 days

0

14

Exmark 126-6969

DECAL-EXMARK LOGO

$8.49

$

In Stock, Qty 13

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0

19

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

20

Exmark 116-2817

TANK BRACKET ASM (SET)

$380.99

$

Usually ships in 3-6 days

0

20:2

Exmark 126-3275

Decal-LPG Warning

$11.99

$

Usually ships in 3-6 days

0

20:3

Exmark 126-4553

Decal-LPG Tank Spec

$9.99

$

Usually ships in 3-6 days

0

21

Exmark 103-6364-01

WLD,WEIGHT MOUNT

$145.99

$

Usually ships in 3-6 days

0

22

Exmark 103-6367-01

WEIGHT,CAST 36LB

$468.99

$

Usually ships in 3-6 days

0

23

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$91.99

$

In Stock, only 1 left!

0

24

Exmark 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

25

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

27

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Exmark 107-3154

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

32

Exmark 116-3558-03

SUPPORT-TANK

$273.99

$

Usually ships in 3-6 days

0

33

Exmark 116-1432-03

STRAP-GUARD

$100.99

$

Usually ships in 3-6 days

0

34

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

35

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 20+

0
