LZS740PKC60400 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

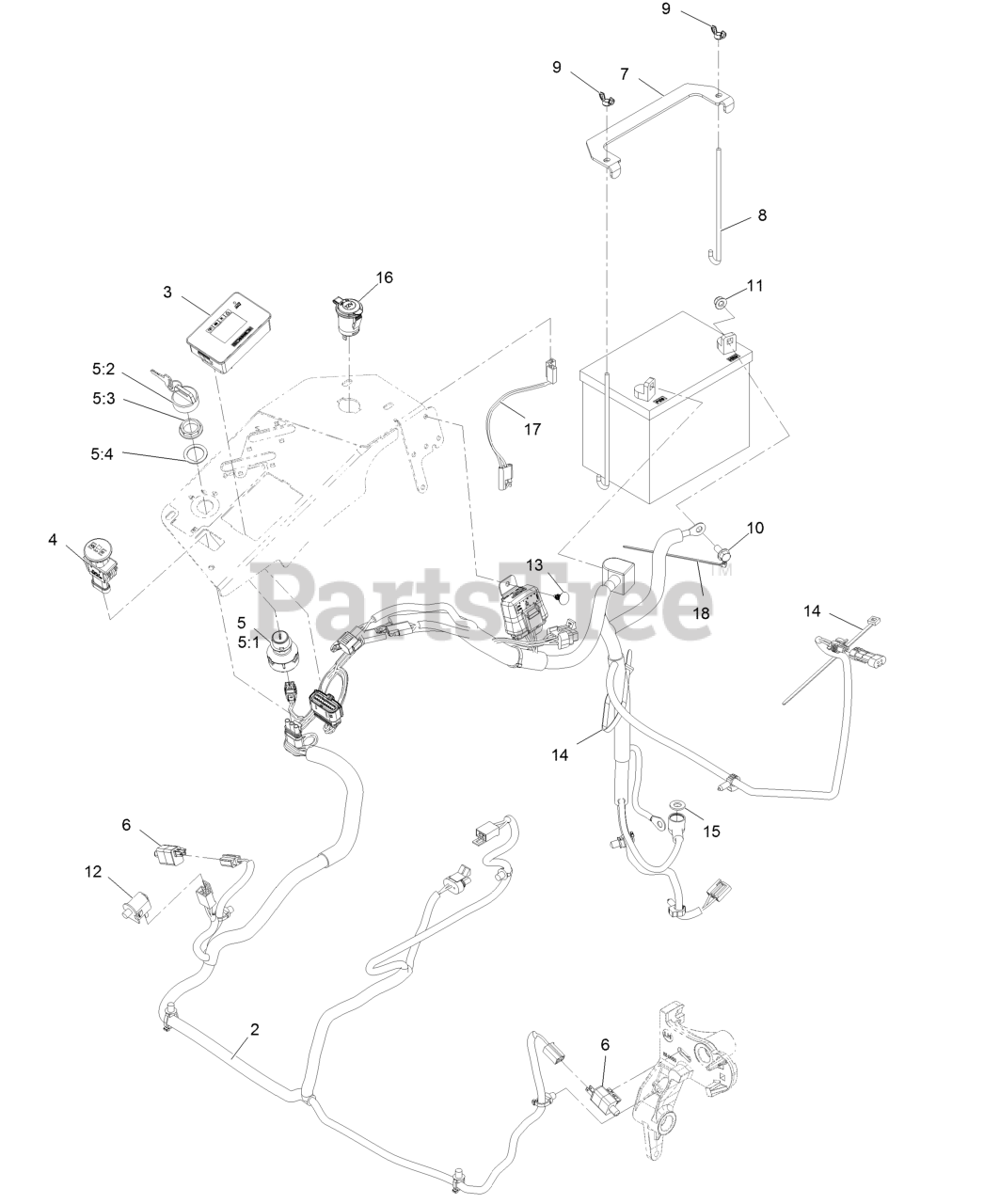

Electrical Assembly Parts Diagram

  • Title

2

Exmark 126-5875

Wire Harness ASM
(Superseded to 135-5753)

$420.99

$

In Stock, only 1 left!

0

3

Exmark 135-2471

Meter-Hour

$

$

Not available

4

Exmark 126-6187

Switch-PTO, Sealed

$52.99

$

In Stock, Qty 15

0

5

Exmark 126-6285

Ignition Switch ASM

$52.99

$

In Stock, Qty 10

0

5:1

Switch-Ignition

$

$

Not available

5:2

Exmark 108-8660

Nut-Mounting

$33.99

$

In Stock, only 4 left!

0

5:3

Exmark 106-5270

Ignition Key Set

$21.99

$

Usually ships in 3-6 days

0

5:4

Exmark 108-8659

Washer-Backup

$14.99

$

In Stock, only 2 left!

0

6

Exmark 110-6765

Switch

$13.99

$

In Stock, Qty 20+

0

7

Exmark 116-0042-03

Strap-Tie Down, Battery

$21.99

$

In Stock, only 4 left!

0

8

Exmark 1-633651

Bolt-Holddown

$7.99

$

In Stock, Qty 20+

0

9

Exmark 1-543792

Wingnut-Nyloc 1/4-20

$6.49

$

In Stock, Qty 20+

0

10

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, Qty 5

0

11

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 82-2190

Switch

$14.99

$

In Stock, Qty 20+

0

13

Exmark 117-2382

Plug-Plastic

$0.99

$

In Stock, Qty 15

0

14

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

15

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

16

Exmark 126-6499

Port-Power, 12V

$15.99

$

In Stock, only 2 left!

0

17

Exmark 126-7290

Harness-Receptacle, 12V

$23.99

$

Usually ships in 3-6 days

0

18

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0
