LZS740PKC60400 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 406294345 - 408644345) (Rev A) (2020) Main Frame Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

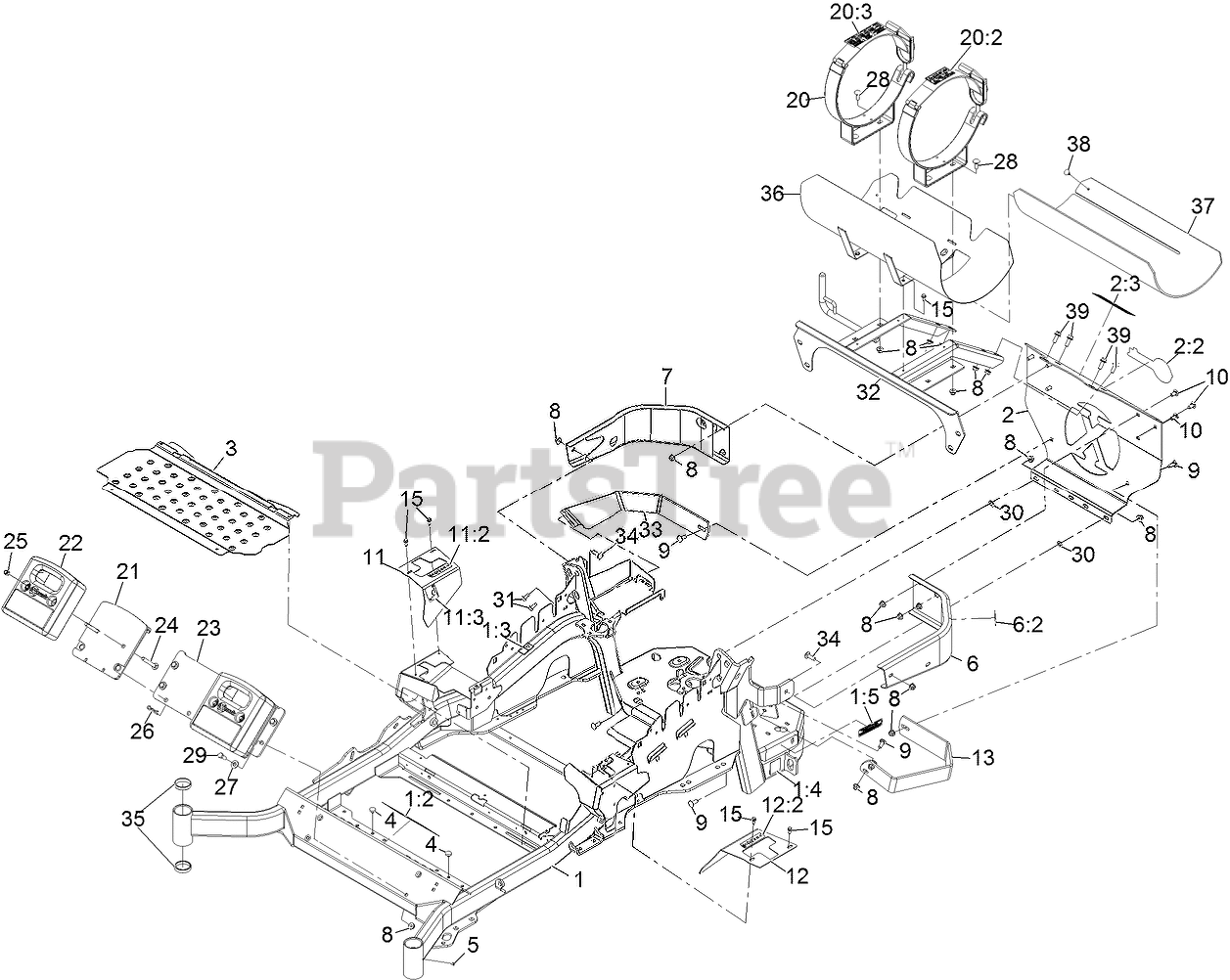

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5902

MAINFRAME ASM

$

$

Not available

1:2

Exmark 132-0871

DECAL-DANGER

$8.49

$

In Stock, only 2 left!

0

1:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

Usually ships in 3-6 days

0

1:5

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9304

REAR GUARD-LP W/DECALS

$225.99

$

Usually ships in 3-6 days

0

2:2

Exmark 126-6877

DECAL, EXMARK LOGO

$7.49

$

In Stock, Qty 20+

0

2:3

Exmark 126-3277

Decal-LPG Fuel Tank Replacement

$7.49

$

Usually ships in 3-6 days

0

3

Exmark 116-8898-01

FLOORPAN

$106.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 20+

0

5

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

6

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

7

Exmark 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

10

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$47.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$20.99

$

Usually ships in 3-6 days

0

11:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$27.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$20.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2067-03

GUARD-MUFFLER

$58.99

$

Usually ships in 3-6 days

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

20

Exmark 116-2817

TANK BRACKET ASM (SET)

$330.99

$

Usually ships in 3-6 days

0

20:2

Exmark 126-3275

Decal-LPG Warning

$9.99

$

Usually ships in 3-6 days

0

20:3

Exmark 126-4553

Decal-LPG Tank Spec

$8.49

$

Usually ships in 3-6 days

0

21

Exmark 103-6364-01

WLD,WEIGHT MOUNT

$122.99

$

Usually ships in 3-6 days

0

22

Exmark 103-6367-01

WEIGHT,CAST 36LB

$401.99

$

Usually ships in 3-6 days

0

23

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$76.99

$

Usually ships in 3-6 days

0

24

Exmark 3231-10

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

25

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

27

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

28

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 12

0

31

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

32

Exmark 116-3558-03

SUPPORT-TANK

$238.99

$

Usually ships in 3-6 days

0

33

Exmark 116-1432-03

STRAP-GUARD

$84.99

$

Usually ships in 3-6 days

0

34

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

35

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 20+

0

36

Exmark 135-4812-03

Wld,LP Tank Heat Shield

$174.99

$

Usually ships in 3-6 days

0

37

Exmark 135-6957

THERMAL BARRIER-43# LP TANK

$118.99

$

Usually ships in 3-6 days

0

38

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 15

0

39

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 17

0
