LZS740PKC72400 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

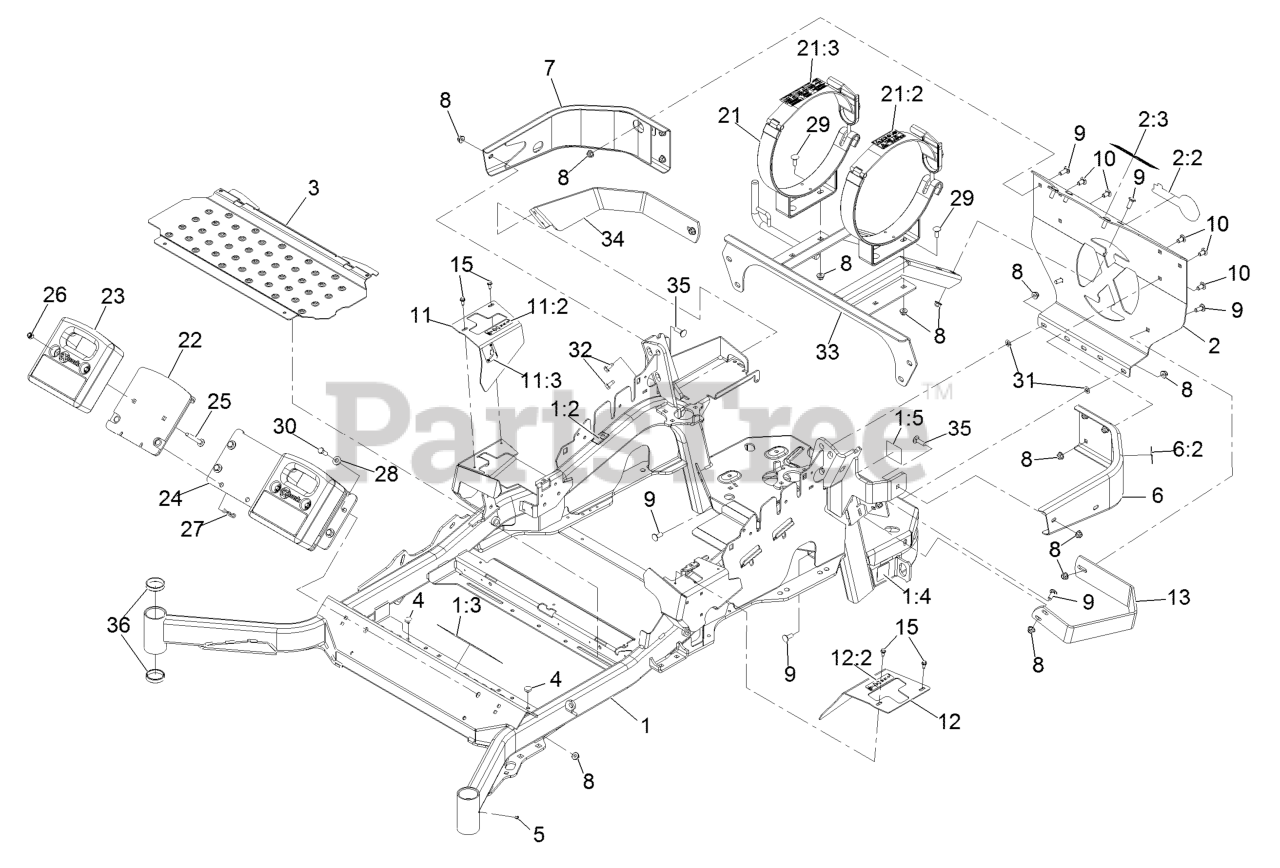

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5904

Mainframe ASM
(Superseded to 142-7266)

$2392.99

$

Usually ships in 3-6 days

0

1:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

1:3

Exmark 132-0871

Decal-Danger

$8.49

$

In Stock, only 2 left!

0

1:4

Exmark 106-2655

Decal-Hazard, Pinched Finger

$1.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

Decal-Spark Arrester

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 116-9304

Rear Guard-LP W/Decals

$225.99

$

Usually ships in 3-6 days

0

2:2

Exmark 126-6965

Decal-Exmark Logo
(Superseded to 126-6877)

$7.49

$

In Stock, Qty 20+

0

2:3

Exmark 126-3277

Decal-LPG Fuel Tank Replacement

$7.49

$

Usually ships in 3-6 days

0

3

Exmark 116-8898-01

Floorpan

$106.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 20+

0

5

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 20+

0

6

Exmark 116-0180

LH Bumper ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

7

Exmark 116-0057-03

Bumper-RH

$213.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

10

Exmark 3231-21

Bolt-Carriage 3/8-16 X 3/4

$1.49

$

In Stock, only 1 left!

0

11

Exmark 116-5899

RH Motion Control Cover ASM

$47.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

Decal-Control, Motion

$20.99

$

Usually ships in 3-6 days

0

11:3

Exmark 116-5988

Decal-Park Brake, CE

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0580

LH Motion Control Cover ASM

$27.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

Decal-Control, Motion

$20.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2067-03

Guard-Muffler

$58.99

$

Usually ships in 3-6 days

0

15

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 12

0

21

Exmark 116-2817

Tank Bracket ASM (Set)

$330.99

$

Usually ships in 3-6 days

0

21:2

Exmark 126-3275

Decal-LPG Warning

$9.99

$

Usually ships in 3-6 days

0

21:3

Exmark 126-4553

Decal-LPG Tank Spec

$8.49

$

Usually ships in 3-6 days

0

22

Exmark 103-6364-01

Asm, Weight W/Decals

$122.99

$

Usually ships in 3-6 days

0

23

Exmark 103-6367-01

Weight,Cast 36Lb

$401.99

$

Usually ships in 3-6 days

0

24

Exmark 103-6368-01

Plate, Weight Mounting

$76.99

$

Usually ships in 3-6 days

0

25

Exmark 3231-10

Bolt-Carriage 3/8-16 X 3

$4.49

$

In Stock, Qty 5

0

26

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

27

Exmark 9335124

Hairpin-Cotter

$2.99

$

In Stock, only 1 left!

0

28

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

29

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 20+

0

30

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

31

Exmark 107-3154

Nut-Push 3/8-16

$1.49

$

In Stock, Qty 12

0

32

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

33

Exmark 116-3558-03

Support-LPG Tank

$238.99

$

Usually ships in 3-6 days

0

34

Exmark 116-1432-03

Strap-Guard

$84.99

$

Usually ships in 3-6 days

0

35

Exmark 3231-25

Bolt-Carriage 3/8-16 X 1 1/4
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

36

Exmark 1-543508

Cup-Bearing Tapered Roller

$7.99

$

In Stock, Qty 20+

0
