LZS740PKC72400 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 406294345 - 408644345) (Rev B) (2020) Engine Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

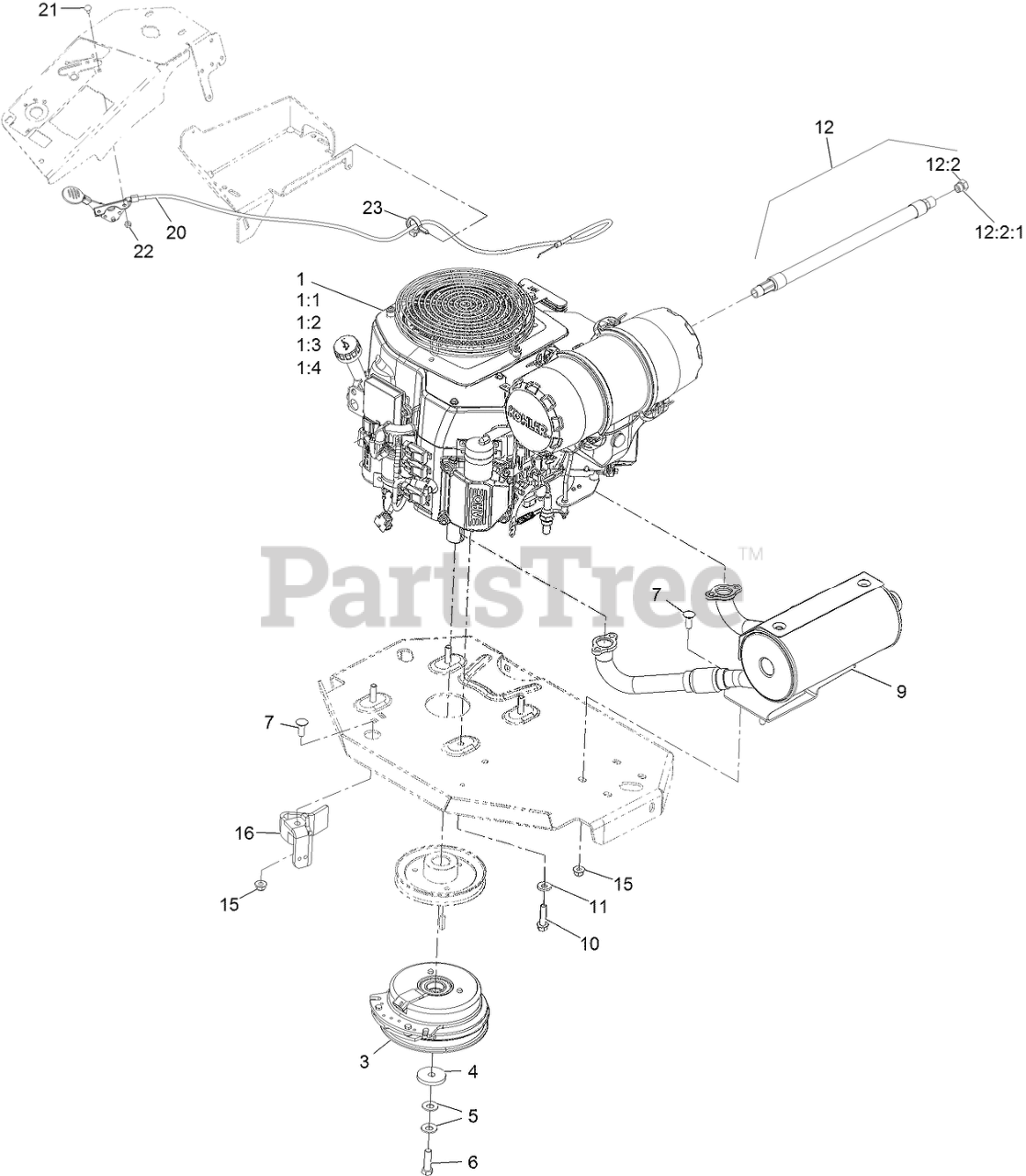

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler Pcv740-3021

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Kohler 52 050 02-S Engine Oil Filter

Note: Not serviced separately

$

$

Not available

1:2

Kohler 25 083 01-S Engine Air Filter

Note: Not serviced separately

$

$

Not available

1:3

Kohler 25 083 04-S Safety Filter

Note: Not serviced separately

$

$

Not available

1:4

Kohler 25 050 50-S Propane Fuel Filter

Note: Not serviced separately

$

$

Not available

3

Exmark 116-1620

CLUTCH KIT

$380.99

$

In Stock, Qty 20+

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, Qty 13

0

7

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

9

Exmark 142-2899

KIT,MUFFLER
(Superseded to 142-6858)

$466.99

$

In Stock, Qty 5

0

10

Exmark 32144-102

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

12

Exmark 116-5316

OIL DRAIN HOSE ASM

$58.99

$

In Stock, Qty 15

0

12:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.99

$

In Stock, only 3 left!

0

12:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-2612-01

CLUTCH-ANCHOR

$59.99

$

In Stock, only 1 left!

0

20

Exmark 116-0969

ASM,THROTTLE CABLE

$53.99

$

In Stock, Qty 8

0

21

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

22

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0
