LZS740PKC72400 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 406294345 - 408644345) (Rev B) (2020) Seat Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

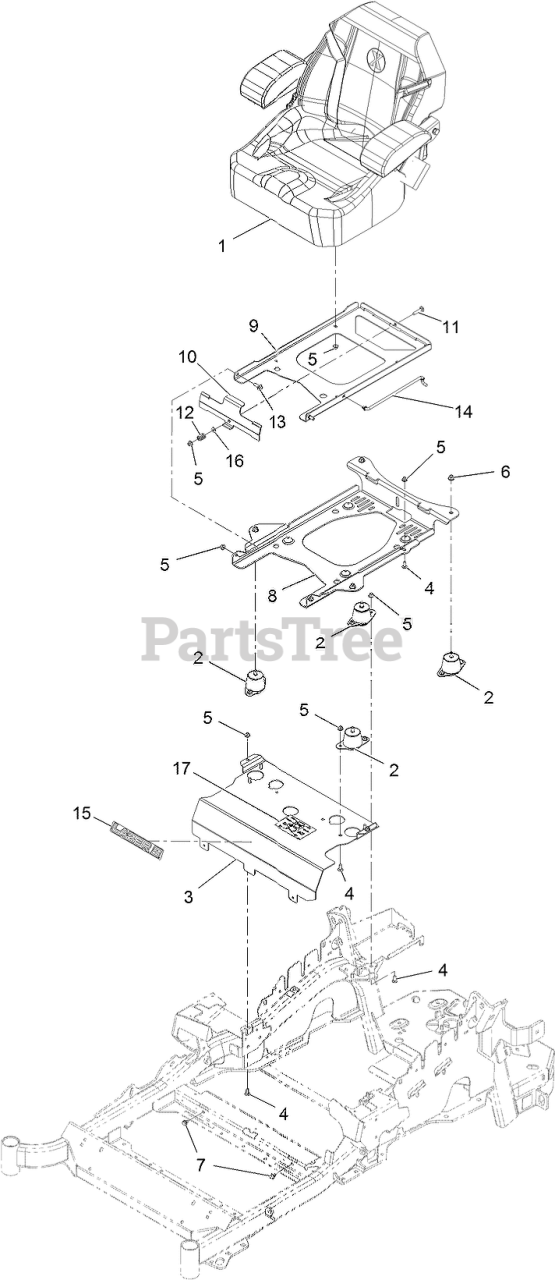

Seat Assembly Parts Diagram

  • Title

1

Exmark 126-5801

SEAT-EXMARK STANDARD

$1490.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9034

ISOLATOR-SEAT

$72.99

$

In Stock, only 2 left!

0

3

Exmark 116-3326-03

Panel,Seat Mount-Front
(Superseded to 116-3327)

$

$

Not available

4

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 9266934

SCREW

$9.49

$

In Stock, Qty 7

0

8

Exmark 116-3860-03

PLATE-TILT, SEAT SUPPORT

$201.99

$

Usually ships in 3-6 days

0

9

Exmark 116-3859-03

PLATE-FRAME, SEAT

$142.99

$

Usually ships in 3-6 days

0

10

Exmark 109-9881-03

PLATE-LATCH, SEAT

$20.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 10

0

12

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

13

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 116-0070

ROD-PROP

$22.99

$

Usually ships in 3-6 days

0

15

Exmark 126-6574

DECAL, LAZER MODEL

$6.49

$

In Stock, only 3 left!

0

16

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Exmark 114-4465

DECAL-SERVICE AID

$31.99

$

Usually ships in 3-6 days

0
