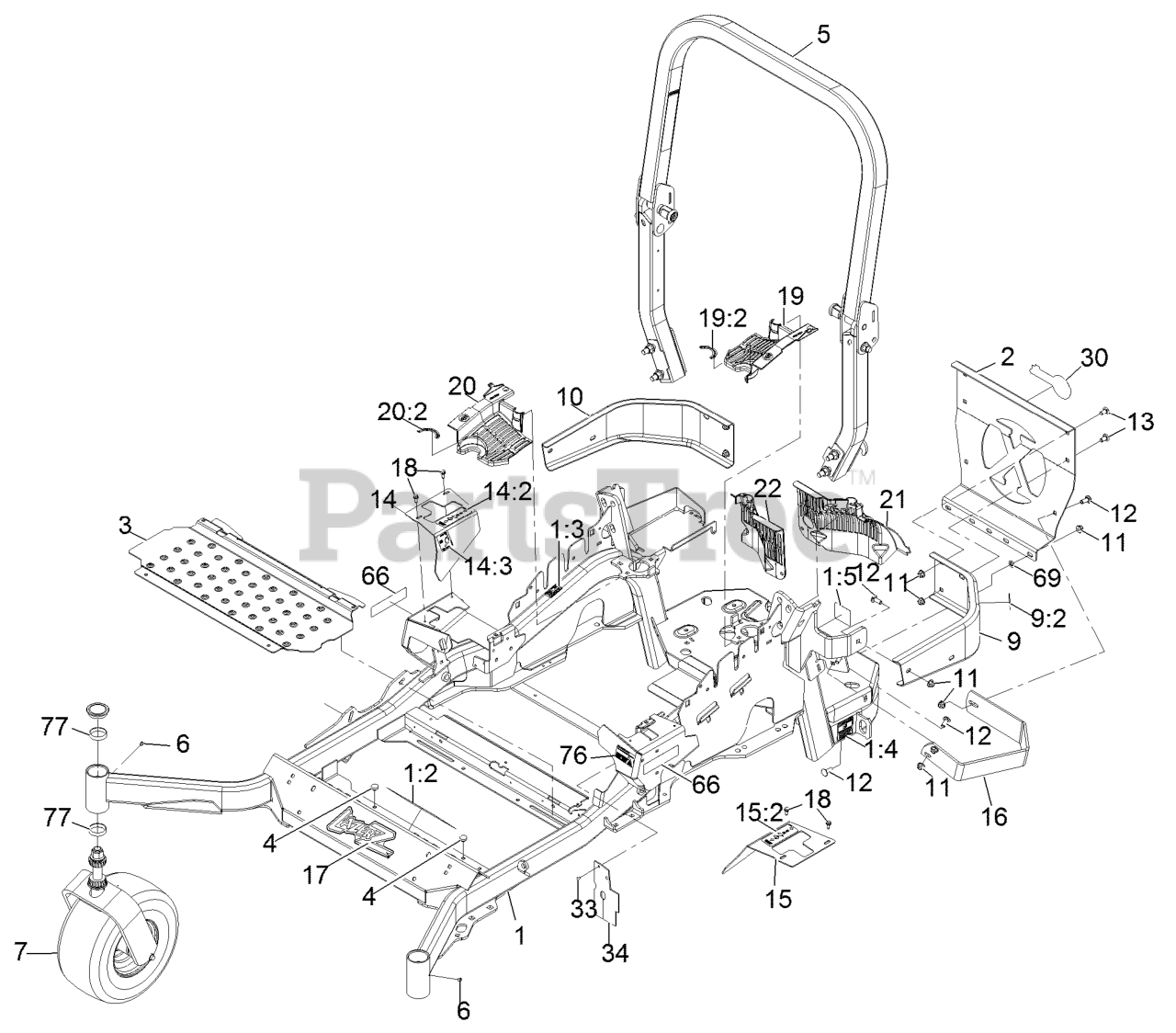

LZS742KC604 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler CV742 (SN: 314000000 - 314999999) (2014) Main Frame Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler CV742

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5902

MAINFRAME ASM

$

$

Not available

1:2

Exmark 116-3303

DECAL-SLOPE

$18.99

$

Usually ships in 3-6 days

0

1:3

Exmark 103-2076

DECAL-CAUTION

$6.99

$

Usually ships in 3-6 days

0

1:4

Exmark 116-0205

DECAL-BELT DRIVE

$8.99

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.99

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$192.99

$

Usually ships in 3-6 days

0

3

Exmark 116-8898-01

FLOORPAN

$115.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 16

0

5

Exmark 116-0230

ASM,ROPS SERVICE EXMARK

$474.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

7

Caster Wheel Asm

Note: Not serviced separately

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$157.99

$

Usually ships in 3-6 days

0

9:2

Exmark 103-2076

DECAL-CAUTION

$6.99

$

Usually ships in 3-6 days

0

10

Exmark 116-0057-03

BUMPER-RH

$233.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 7

0

13

Exmark 3231-21

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$52.99

$

Usually ships in 3-6 days

0

14:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0
