LZS801PKA604 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kawasaki Propane (SN: 312000000 - 312999999) (2012) LP Valve, Tank and Hose Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kawasaki Propane

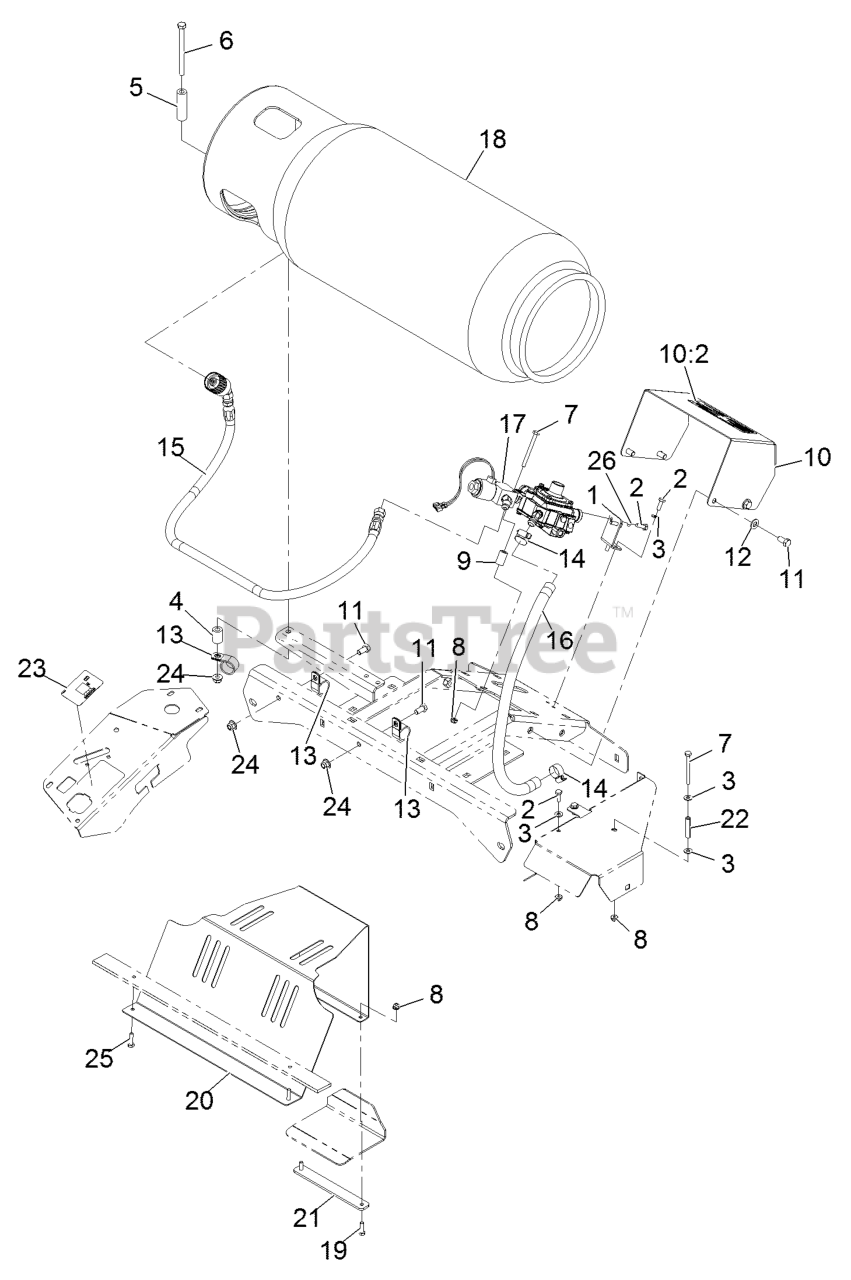

LP Valve, Tank and Hose Assembly Parts Diagram

  • Title

1

Exmark 116-2571-03

BRACKET-REGULATOR

$21.99

$

Usually ships in 3-6 days

0

2

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

6

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

7

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

8

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Exmark 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

10

Exmark 116-2818

COVER ASM

$103.99

$

Usually ships in 3-6 days

0

10:2

Exmark 109-9906

DECAL-TANK REPLACEMENT

$15.99

$

In Stock, only 2 left!

0

11

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

12

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 1-543892

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

15

Exmark 116-2821

LPG FUEL HOSE ASM

$

$

Not available

16

Exmark 116-7817

HOSE-LPG

$75.99

$

Usually ships in 3-6 days

0

17

Exmark 116-9162

LPG REGULATOR ASM

$1063.99

$

Usually ships in 3-6 days

0

18

Exmark 116-1694

126-4507
(Superseded to 126-4507)

$646.99

$

In Stock, only 2 left!

0

19

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 116-3358-03

SHEILD-FAN

$120.99

$

Usually ships in 3-6 days

0

21

Exmark 116-3359-03

STRAP

$20.99

$

Usually ships in 3-6 days

0

22

Exmark 56-7740

SPACER-SPLIT

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 116-3446

DECAL-METER, HOUR

$55.99

$

Usually ships in 3-6 days

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0
