LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 408644346 - 411294211) (Rev A) (2021) Crankshaft and Piston Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

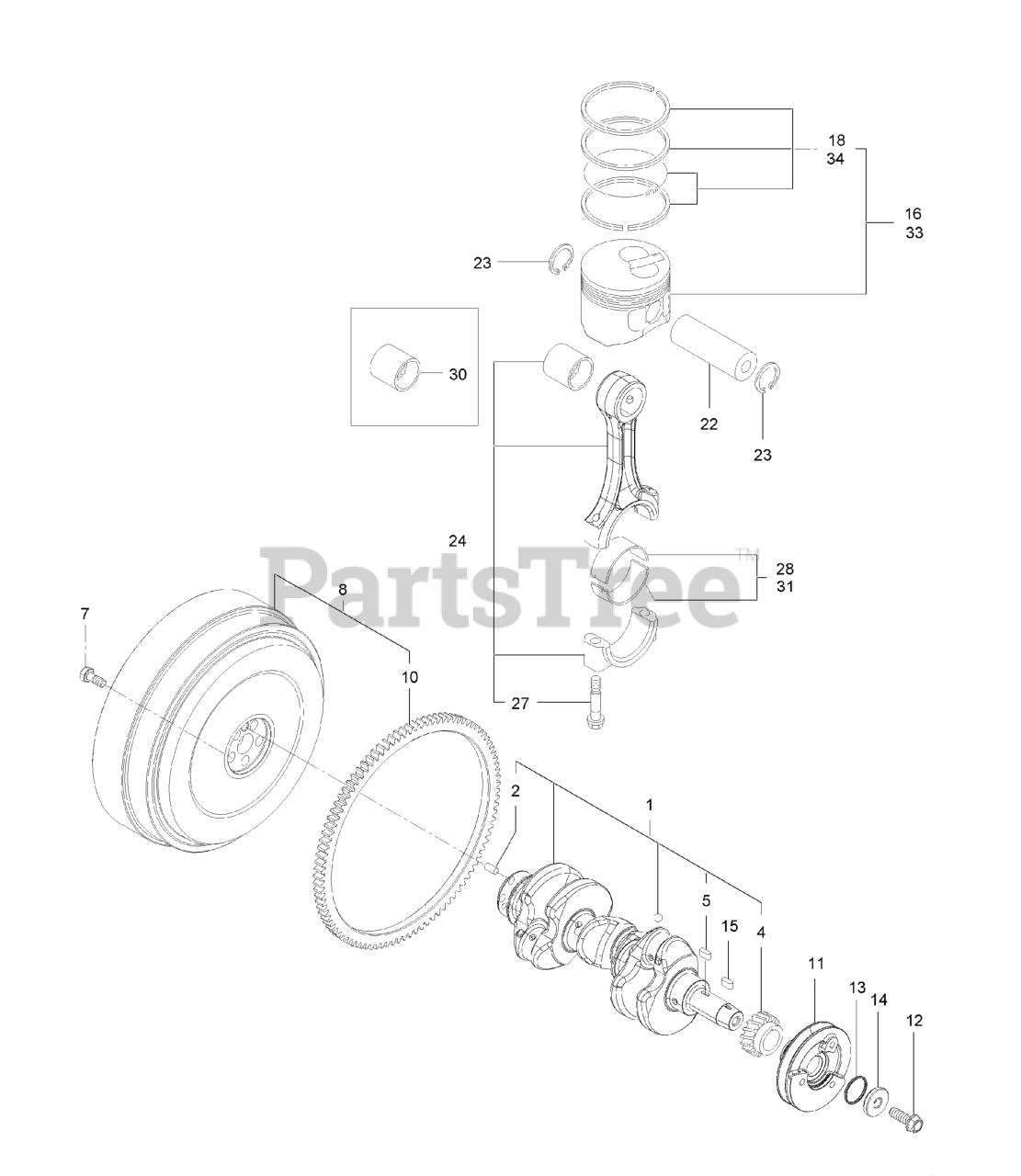

Crankshaft and Piston Assembly Parts Diagram

  • Title

1

Exmark 135-4152

CRANKSHAFT ASM

$2246.99

$

Usually ships in 3-6 days

0

2

Exmark 125-6995

PIN

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 135-4153

GEAR-CRANKSHAFT

$252.99

$

Usually ships in 3-6 days

0

5

Exmark 135-4154

KEY

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 135-4155

BOLT, FLYWHEEL 5

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 135-4156

FLYWHEEL ASM

$2657.99

$

Usually ships in 3-6 days

0

10

Exmark 135-4157

GEAR-RING

$329.99

$

Usually ships in 3-6 days

0

11

Exmark 135-4158

V-PULLEY, CRANKSHAFT 1

$481.99

$

Usually ships in 3-6 days

0

12

Exmark 135-4159

BOLT, FLANGE 12X1.25 1

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 135-4160

GASKET-WASHER

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 135-4161

WASHER

$52.99

$

Usually ships in 3-6 days

0

15

Exmark 135-4154

KEY

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 135-4163

PISTON ASM

$304.99

$

Usually ships in 3-6 days

0

18

Exmark 135-4164

RING ASM

$132.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4165

PIN-PISTON

$27.99

$

Usually ships in 3-6 days

0

23

Exmark 135-4166

RING

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 135-4167

ROD ASM-CONNECTING

$451.99

$

Usually ships in 3-6 days

0

27

Exmark 135-4168

BOLT-CONNECTING ROD

$15.99

$

Usually ships in 3-6 days

0

28

Exmark 135-4169

BEARING-CRANK PIN

$35.99

$

Usually ships in 3-6 days

0

30

Exmark 135-4170

BEARING-PISTON PIN

$15.99

$

Usually ships in 3-6 days

0

31

Exmark 135-4171

BEARING, PIN 0.25

$68.99

$

Usually ships in 3-6 days

0

33

Exmark 135-4172

PISTON ASM

$445.99

$

Usually ships in 3-6 days

0

34

Exmark 135-4173

RING ASM

$166.99

$

Usually ships in 3-6 days

0
