LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 411294212 - 413950473) (Rev A) (2022) Cylinder Block Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

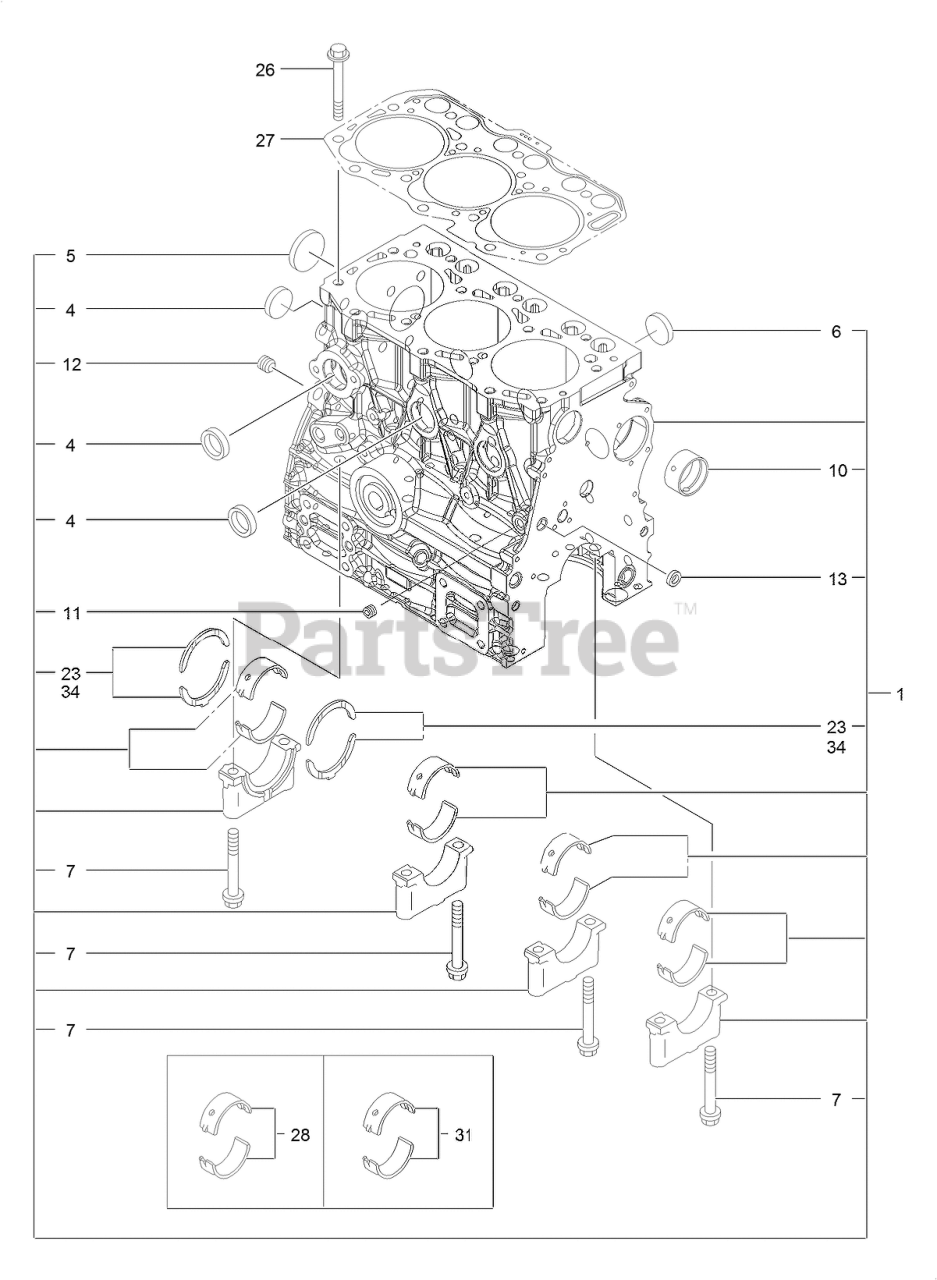

Cylinder Block Assembly Parts Diagram

  • Title

1

Exmark 135-4030

BLOCK ASM-CYLINDER

$7062.99

$

Usually ships in 3-6 days

0

4

Exmark 135-4031

PLUG, CUP TYPE 30

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 135-4032

PLUG-DISH

$9.49

$

Usually ships in 3-6 days

0

6

Exmark 135-4033

PLUG-CUP TYPE 25

$7.99

$

Usually ships in 3-6 days

0

7

Exmark 135-4034

BOLT-METAL CAP

$10.99

$

Usually ships in 3-6 days

0

10

Exmark 135-4035

BUSH-CAMSHAFT

$42.99

$

Usually ships in 3-6 days

0

11

Exmark 125-6969

PLUG

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 125-6973

PLUG

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 125-7237

PLUG

$2.49

$

Usually ships in 3-6 days

0

23

Exmark 135-4036

BEARING ASSY-THRUST

$15.99

$

Usually ships in 3-6 days

0

26

Exmark 135-4037

BOLT, CYLINDER HEAD

$7.99

$

Usually ships in 3-6 days

0

27

Exmark 135-4038

GASKET SET-HEAD

$102.99

$

Usually ships in 3-6 days

0

28

Exmark 135-4039

BEARING ASSY-MAIN

$84.99

$

Usually ships in 3-6 days

0

31

Exmark 135-4040

BEARING ASSY-MAIN

$104.99

$

Usually ships in 3-6 days

0

34

Exmark 135-4041

BEARING-THRUST

$52.99

$

Usually ships in 3-6 days

0
