LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 413950474 - 416150474) (Rev B) (2023) Engine Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

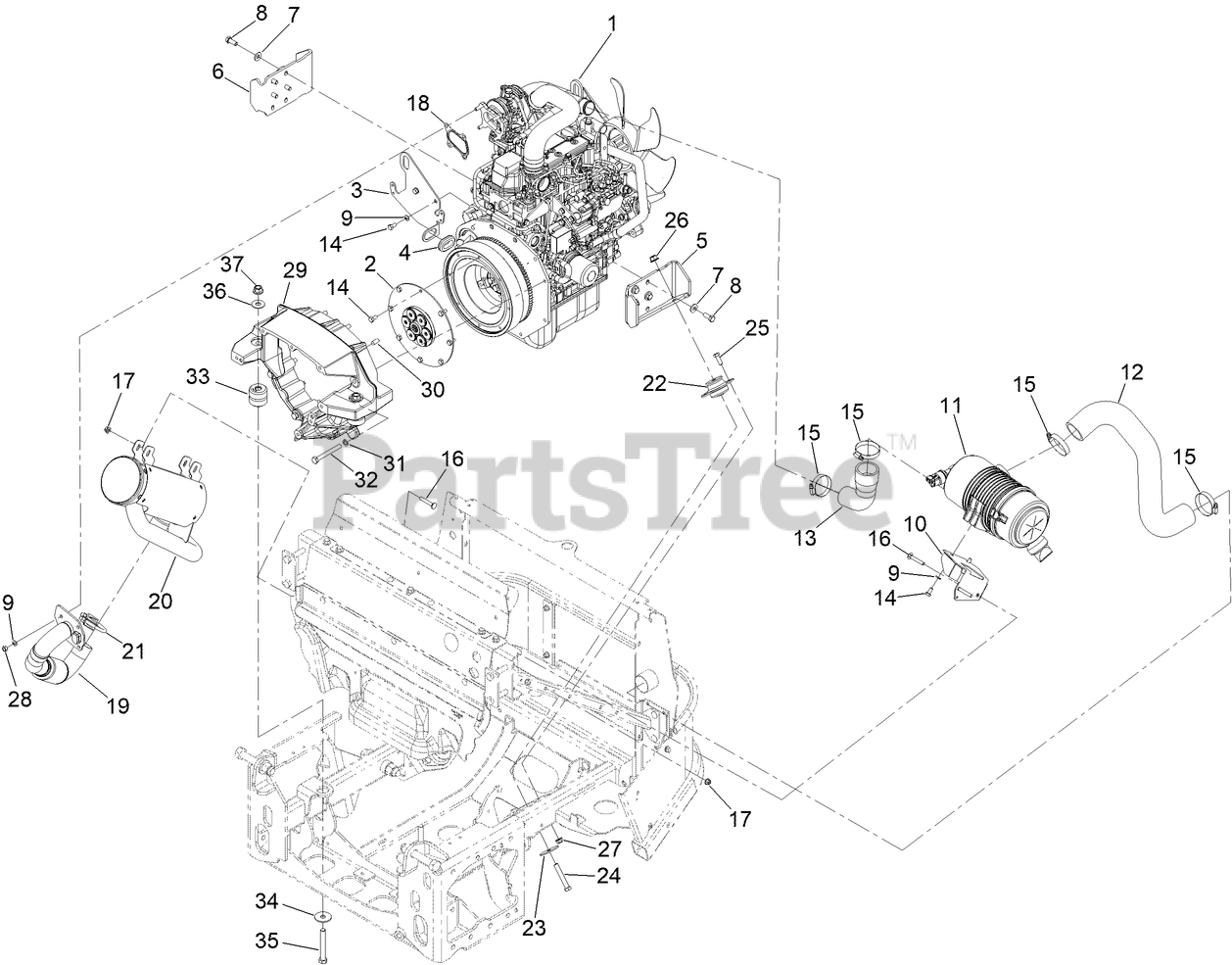

Engine Assembly Parts Diagram

  • Title

1

Exmark 138-6926

Engine,Yanmar 3Tnv80Ft-Zmtr1

$11845.99

$

Usually ships in 3-6 days

0

2

Exmark 126-6531

Flywheel Coupling ASM

$312.99

$

Usually ships in 3-6 days

0

3

Exmark 126-7610-03

BRACKET-GUIDE

$39.99

$

Usually ships in 3-6 days

0

4

Exmark 108-3723

GROMMET

$8.99

$

Usually ships in 3-6 days

0

5

Exmark 126-9282-03

MOUNT-ENGINE, LH

$98.99

$

Usually ships in 3-6 days

0

6

Exmark 126-9285-03

MOUNT-ENGINE, RH

$98.99

$

Usually ships in 3-6 days

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Exmark 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

9

Exmark 3290-475

WASHER-BELLEVILLE

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 126-8730-03

BRACKET-CLEANER, AIR

$48.99

$

Usually ships in 3-6 days

0

11

Exmark 142-3554

ASM, HDAC

$203.99

$

In Stock, only 1 left!

0

12

Exmark 120-9177

HOSE-AIR

$83.99

$

Usually ships in 3-6 days

0

13

Exmark 126-7288

HOSE-AIR

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

15

Exmark 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

16

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

18

Exmark 136-2307

GASKET-HEADER

$11.99

$

Usually ships in 3-6 days

0

19

Exmark 126-9329

HEADER PIPE

$310.99

$

Usually ships in 3-6 days

0

20

Exmark 126-8911

MUFFLER

$550.99

$

Usually ships in 3-6 days

0

21

Exmark 18-2130

CLAMP

$39.99

$

Usually ships in 3-6 days

0

22

Exmark 142-8456

Mount- Isolator, Engine

$68.99

$

In Stock, only 2 left!

0

23

Exmark 87-5100

WASHER-SNUBBING

$4.49

$

Usually ships in 3-6 days

0

24

Exmark 324-11

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

25

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Exmark 114-8417

NUT-HF, NI

$2.99

$

In Stock, only 4 left!

0

27

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

29

Exmark 126-8786

Housing-Flywheel

$409.99

$

Usually ships in 3-6 days

0

30

Exmark 126-8893

PIN-DOWEL

$17.99

$

Usually ships in 3-6 days

0

31

Exmark 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

32

Exmark 33115-090

SCREW-HH

$19.99

$

Usually ships in 3-6 days

0

33

Exmark 142-8457

Mount-Isolator

$62.99

$

Usually ships in 0 days

0

34

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

0

35

Exmark 325-15

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

37

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 14

0
