LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 413950474 - 416150474) (Rev B) (2023) Oil Pump Assembly (cont.) Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

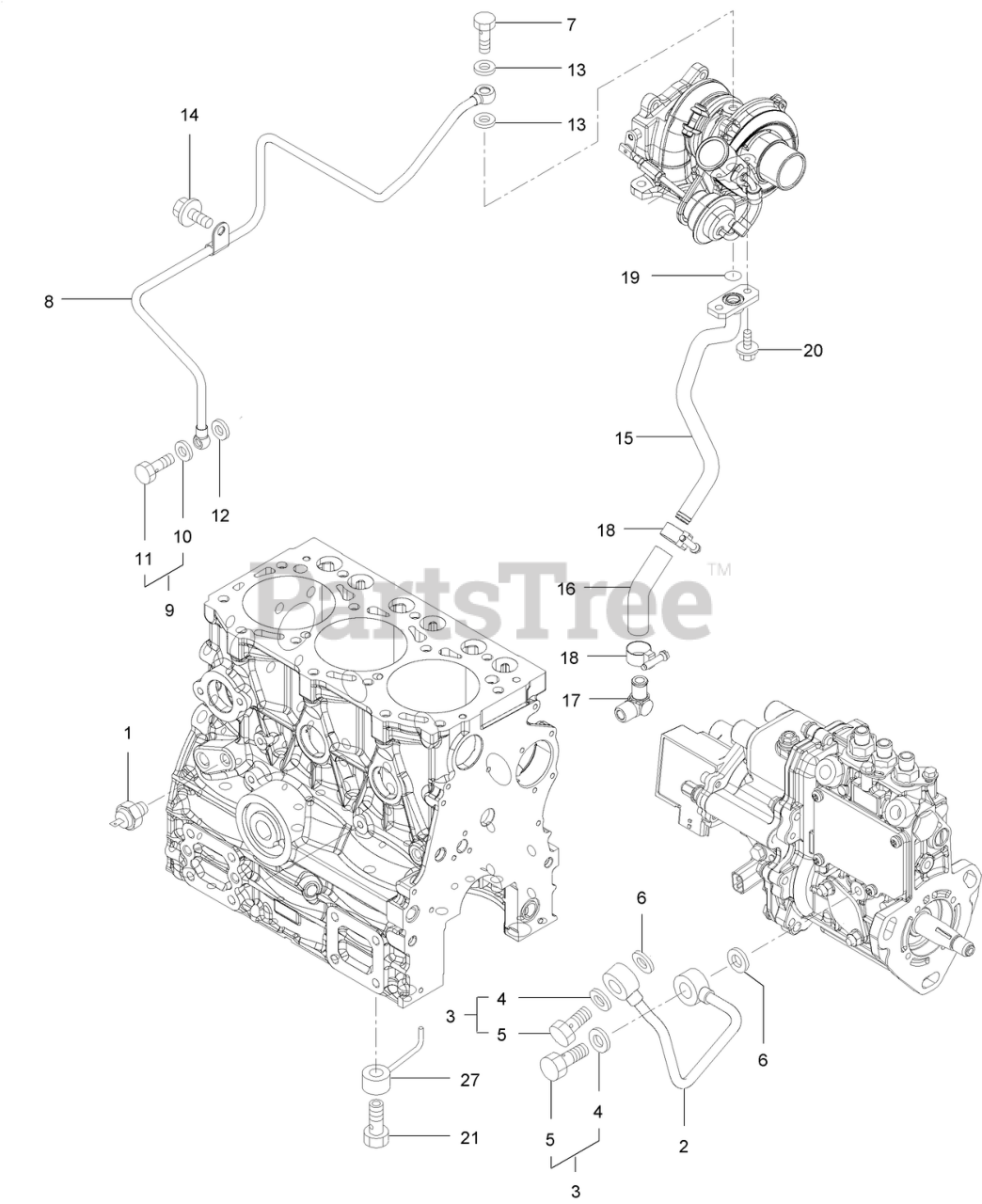

Oil Pump Assembly (cont.) Parts Diagram

  • Title

1

Exmark 125-6918

SWITCH-OIL

$31.99

$

Usually ships in 3-6 days

0

2

Exmark 135-4182

PIPE-OIL

$121.99

$

Usually ships in 3-6 days

0

3

Exmark 125-6988

JOINT BOLT ASM

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 125-7174

WASHER-SEAL

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 125-7194

BOLT-JOINT

$5.99

$

Usually ships in 3-6 days

0

6

Exmark 125-7174

WASHER-SEAL

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 125-6952

BOLT-JOINT, PIPE

$21.99

$

Usually ships in 3-6 days

0

8

Exmark 135-4183

PIPE ASM-LO

$251.99

$

Usually ships in 3-6 days

0

9

Exmark 125-6988

JOINT BOLT ASM

$12.99

$

Usually ships in 3-6 days

0

10

Exmark 125-7174

WASHER-SEAL

$6.49

$

Usually ships in 3-6 days

0

11

Exmark 125-7194

BOLT-JOINT

$5.99

$

Usually ships in 3-6 days

0

12

Exmark 125-7174

WASHER-SEAL

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 125-7193

GASKET

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 125-7212

BOLT

$3.49

$

Usually ships in 3-6 days

0

15

Exmark 135-4184

PIPE-LO RETURN

$222.99

$

Usually ships in 3-6 days

0

16

Exmark 127-2992

JOINT

$44.99

$

Usually ships in 3-6 days

0

17

Exmark 127-3003

Elbow

$35.99

$

Usually ships in 3-6 days

0

18

Exmark 127-3169

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

19

Exmark 125-7198

O-RING

$8.49

$

Usually ships in 3-6 days

0

20

Exmark 125-7208

BOLT

$4.49

$

Usually ships in 3-6 days

0

21

Exmark 135-4185

VALVE ASM-CHECK

$77.99

$

Usually ships in 3-6 days

0

27

Exmark 135-4186

NOZZLE ASM-PISTON

$77.99

$

Usually ships in 3-6 days

0
