LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 413950474 & Above) (Rev A) (2023) Seat Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

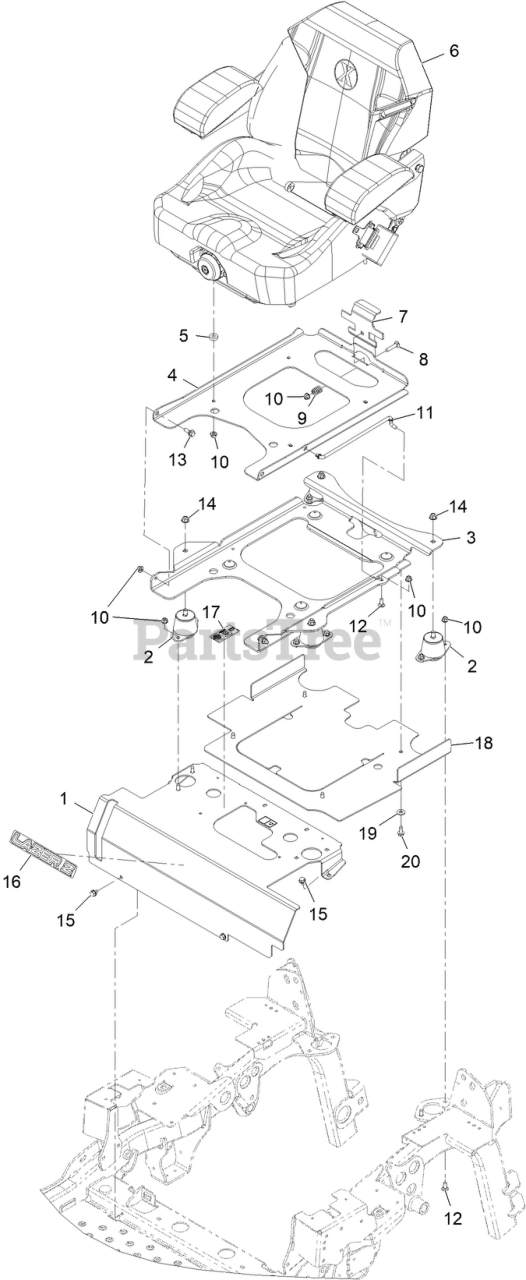

Seat Assembly Parts Diagram

  • Title

1

Exmark 142-6637

MOUNT-SEAT W/DECALS

$177.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9034

ISOLATOR-SEAT

$72.99

$

In Stock, only 2 left!

0

3

Exmark 142-9423-03

Plate,Tilt Seat Support

$319.99

$

Usually ships in 0 days

0

4

Exmark 126-2700-03

PLATE-FRAME, SEAT

$113.99

$

Usually ships in 3-6 days

0

5

Exmark 26-4840

5-0652

$6.99

$

In Stock, only 2 left!

0

6

Exmark 116-8912

KIT-SUSPENSION SEAT

$1726.99

$

Usually ships in 3-6 days

0

7

Exmark 126-1855

PLATE, SEAT LATCH

$20.99

$

Usually ships in 3-6 days

0

8

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 10

0

9

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-0070

ROD-PROP

$22.99

$

Usually ships in 3-6 days

0

12

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 9266934

SCREW

$9.49

$

In Stock, Qty 7

0

16

Exmark 126-6574

DECAL, LAZER MODEL

$6.49

$

In Stock, only 3 left!

0

17

Exmark 135-2838

DECAL-TRANS FLUID

$8.49

$

Usually ships in 3-6 days

0

18

Exmark 142-9671

SHIELD-HEAT

$57.99

$

Usually ships in 3-6 days

0

19

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0
