LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Starting Motor Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

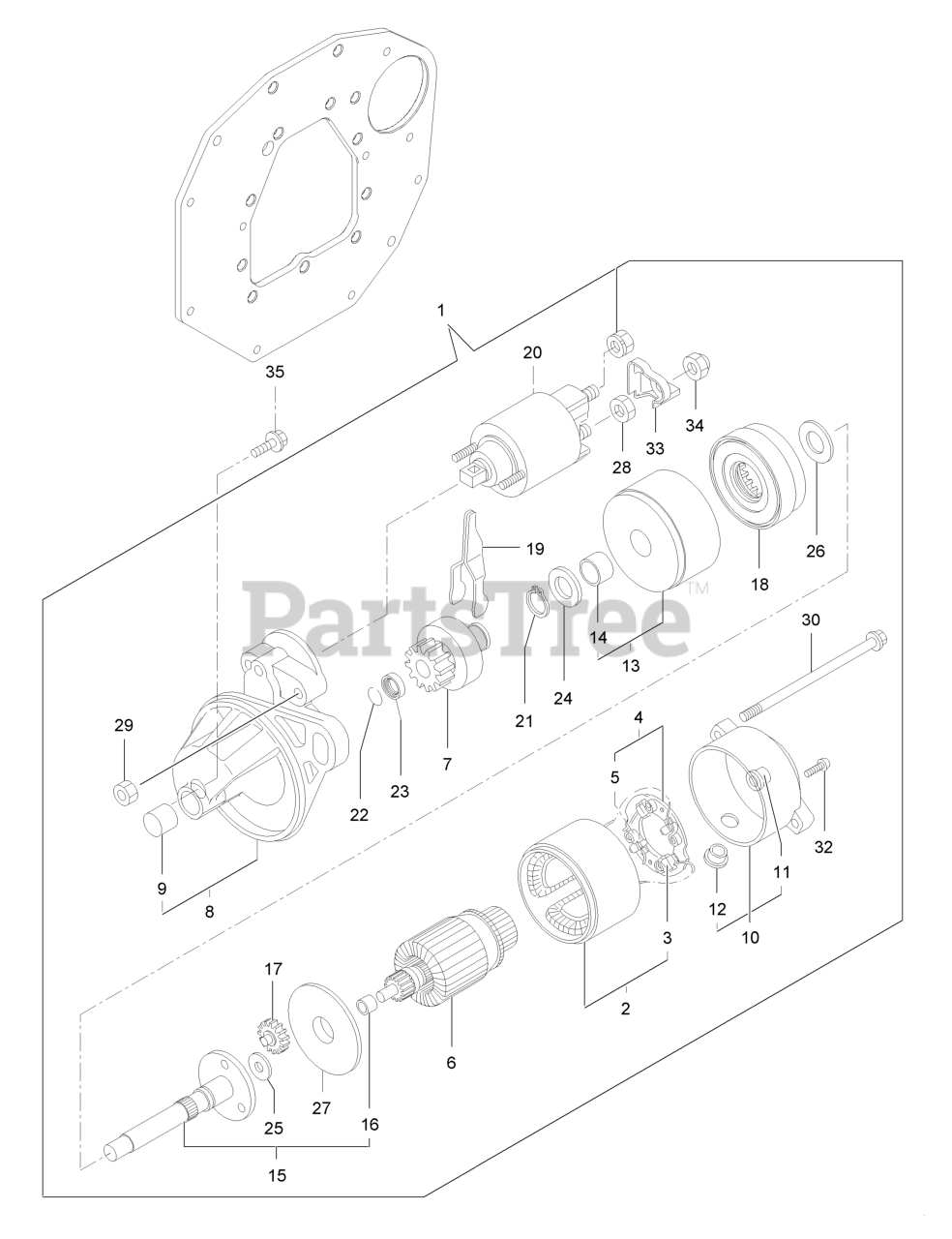

Starting Motor Assembly Parts Diagram

  • Title

1

Exmark 135-4244

Starter ASM

$1121.99

$

Usually ships in 3-6 days

0

2

Exmark 135-4245

Yoke ASM

$474.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4246

Starter Kit

$9.49

$

Usually ships in 3-6 days

0

4

Exmark 135-4247

Holder ASM

$82.99

$

Usually ships in 3-6 days

0

5

Exmark 135-4248

Spring

$7.49

$

Usually ships in 3-6 days

0

6

Exmark 135-4249

Armature ASM

$608.99

$

Usually ships in 3-6 days

0

7

Exmark 135-4250

Clutch ASM

$234.99

$

Usually ships in 3-6 days

0

8

Exmark 135-4251

Housing ASM

$205.99

$

Usually ships in 3-6 days

0

9

Exmark 135-4252

Bearing, Needle 1

$48.99

$

Usually ships in 3-6 days

0

10

Exmark 135-4253

Frame ASM

$75.99

$

Usually ships in 3-6 days

0

11

Exmark 135-4254

Bearing

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 135-4255

Cover

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 135-4256

Bearing ASM

$110.99

$

Usually ships in 3-6 days

0

14

Exmark 135-4257

Bearing

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 135-4258

Shaft Assy 1

$68.99

$

Usually ships in 3-6 days

0

16

Exmark 135-4259

Bearing

$6.49

$

Usually ships in 3-6 days

0

17

Exmark 135-4260

Gear

$20.99

$

Usually ships in 3-6 days

0

18

Exmark 135-4261

Gear

$66.99

$

Usually ships in 3-6 days

0

19

Exmark 135-4262

Lever

$30.99

$

Usually ships in 3-6 days

0

20

Exmark 135-4263

Switch ASM

$319.99

$

Usually ships in 3-6 days

0

21

Exmark 135-4264

Ring

$3.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4265

Ring

$7.49

$

Usually ships in 3-6 days

0

23

Exmark 135-4266

Nut

$6.99

$

Usually ships in 3-6 days

0

24

Exmark 135-4267

Washer

$6.49

$

Usually ships in 3-6 days

0

25

Exmark 135-4268

Washer

$3.99

$

Usually ships in 3-6 days

0

26

Exmark 135-4269

Washer

$4.99

$

Usually ships in 3-6 days

0

27

Exmark 135-4270

Plate

$19.99

$

Usually ships in 3-6 days

0

28

Exmark 135-4271

Nut

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 135-4272

Nut

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 135-4273

Bolt-Through

$22.99

$

Usually ships in 3-6 days

0

32

Exmark 135-4274

Screw

$4.49

$

Usually ships in 3-6 days

0

33

Exmark 135-4275

Cover-Terminal

$8.99

$

Usually ships in 3-6 days

0

34

Exmark 135-4276

Nut

$9.49

$

Usually ships in 3-6 days

0

35

Exmark 127-3179

Bolt

$4.99

$

Usually ships in 3-6 days

0
