LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (Rev B) (2019) Power Frame Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

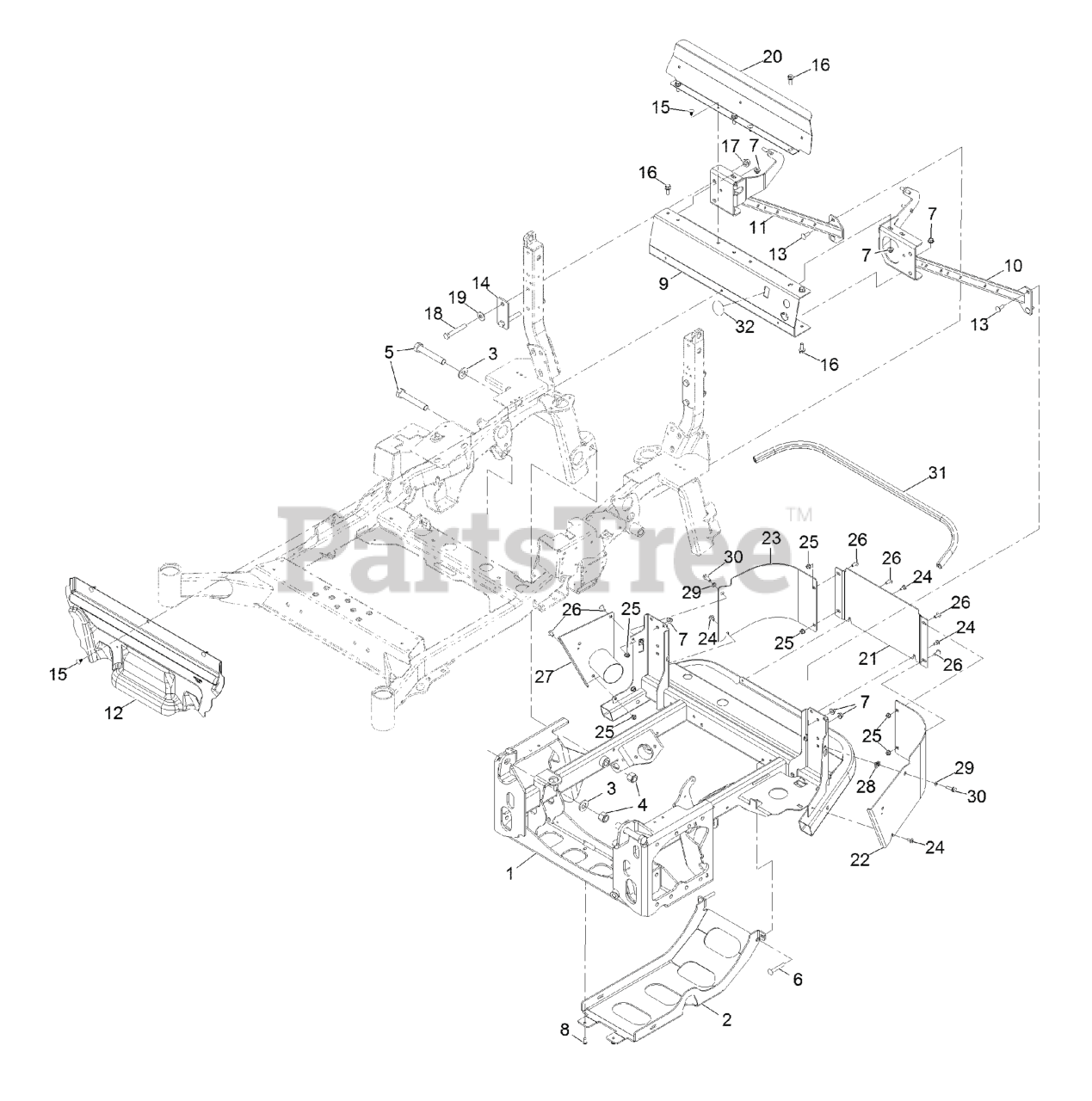

Power Frame Assembly Parts Diagram

  • Title

1

Exmark 126-5929-03

FRAME-POWER

$1307.99

$

Usually ships in 3-6 days

0

2

Exmark 126-5922-03

PLATE-SKID

$192.99

$

Usually ships in 3-6 days

0

3

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

4

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

5

Exmark 328-8

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

6

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 613381

SCREW-BHTF

$5.49

$

In Stock, Qty 15

0

9

Exmark 126-8567-03

CHANNEL-CROSS

$79.99

$

Usually ships in 3-6 days

0

10

Exmark 126-8563-03

BRACE-ROPS, LH

$147.99

$

Usually ships in 3-6 days

0

11

Exmark 126-8565-03

BRACE-ROPS, RH

$

$

Not available

12

Exmark 126-7458

PANEL-DEFLECTOR, HEAT

$192.99

$

Usually ships in 3-6 days

0

13

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

14

Exmark 135-0412-03

PLATE-SPACER

$7.49

$

Usually ships in 3-6 days

0

15

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 14

0

16

Exmark 131-2220

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

18

Exmark 112-7264

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

19

Exmark 109-9505

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

20

Exmark 126-6557-03

SHIELD-AIR

$39.99

$

Usually ships in 3-6 days

0

21

Exmark 126-8954-03

PLATE-BUMPER, CENTER

$52.99

$

Usually ships in 3-6 days

0

22

Exmark 126-8952-03

PLATE-BUMPER, LH

$76.99

$

Usually ships in 3-6 days

0

23

Exmark 126-8953-03

PLATE-BUMPER, RH

$55.99

$

Usually ships in 3-6 days

0

24

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 6

0

27

Exmark 135-0880

PLATE-EXHAUST

$52.99

$

Usually ships in 3-6 days

0

28

Exmark 112-3306

NUT

$3.49

$

Usually ships in 3-6 days

0

29

Exmark 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

31

Exmark 126-6845

SEAL-BULB

$27.99

$

Usually ships in 3-6 days

0

32

Exmark 135-3728

DECAL-COVER

$2.99

$

Usually ships in 3-6 days

0
