LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 406294345 - 408644345) (Rev A) (2020) Cooling Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

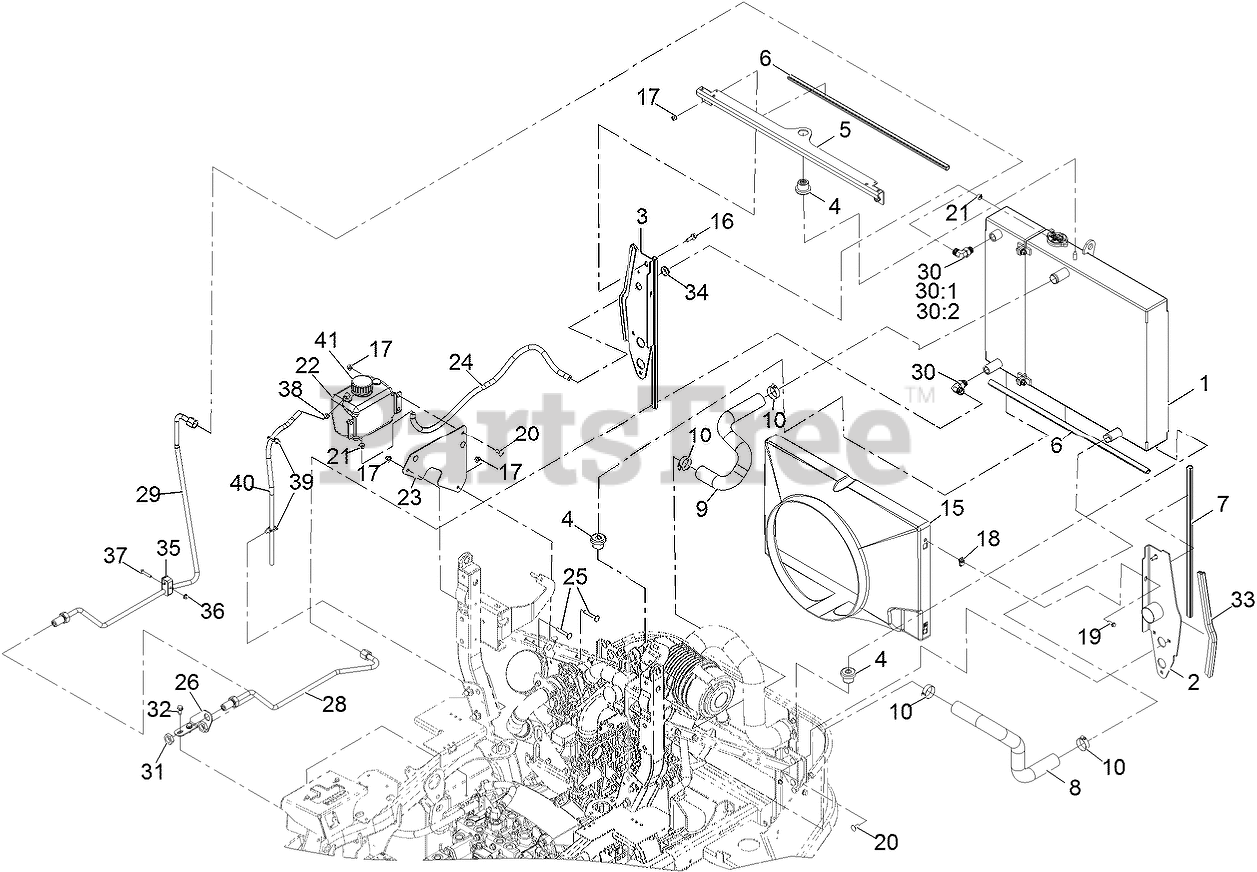

Cooling Assembly Parts Diagram

  • Title

1

Exmark 121-3330

COOLING ASM

$1949.99

$

Usually ships in 3-6 days

0

2

Exmark 126-9026-03

SUPPORT-RADIATOR, LH

$56.99

$

Usually ships in 3-6 days

0

3

Exmark 126-9028-03

SUPPORT-RADIATOR, RH

$37.99

$

Usually ships in 3-6 days

0

4

Exmark 119-1422

MOUNT-ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

5

Exmark 120-0068-03

BRACKET-COOLING, TOP

$52.99

$

Usually ships in 3-6 days

0

6

Exmark 119-1427

SEAL-BULB

$16.99

$

Usually ships in 3-6 days

0

7

Exmark 119-1426

SEAL-BULB

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 126-7787

HOSE-RADIATOR, LOWER

$33.99

$

Usually ships in 3-6 days

0

9

Exmark 126-7788

HOSE-RADIATOR, UPPER

$29.99

$

Usually ships in 3-6 days

0

10

Exmark 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

15

Exmark 126-6720

SHROUD-FAN

$212.99

$

Usually ships in 3-6 days

0

16

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

19

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

20

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Exmark 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4692

TANK-OVERFLOW, W/CAP

$74.99

$

Usually ships in 3-6 days

0

23

Exmark 126-9178-03

BRACKET-BOTTLE

$21.99

$

Usually ships in 3-6 days

0

24

Exmark 126-7648

HOSE

$19.99

$

Usually ships in 3-6 days

0

25

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

26

Exmark 126-6781-03

BRACKET-BULKHEAD

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 126-8691

HYDRAULIC TUBE ASM

$69.99

$

Usually ships in 3-6 days

0

29

Exmark 126-8690

HYDRAULIC TUBE ASM

$72.99

$

Usually ships in 3-6 days

0

30

Exmark 340-98

FITTING-ELBOW, 90 DEG

$32.99

$

In Stock, only 1 left!

0

30:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

30:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

31

Exmark 340-127

NUT-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

32

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

33

Exmark 126-6847

SEAL-BULB

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

35

Exmark 135-0641

CLAMP-TWIN

$6.49

$

Usually ships in 3-6 days

0

36

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Exmark 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

38

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

39

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

40

Exmark 110-4103

HOSE-FUEL

$20.99

$

Usually ships in 3-6 days

0

41

Exmark 135-4693

CAP-W/TETHER

$21.99

$

In Stock, only 4 left!

0
