LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 417930746 & Above) (Rev A) (2025) Parking Brake Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

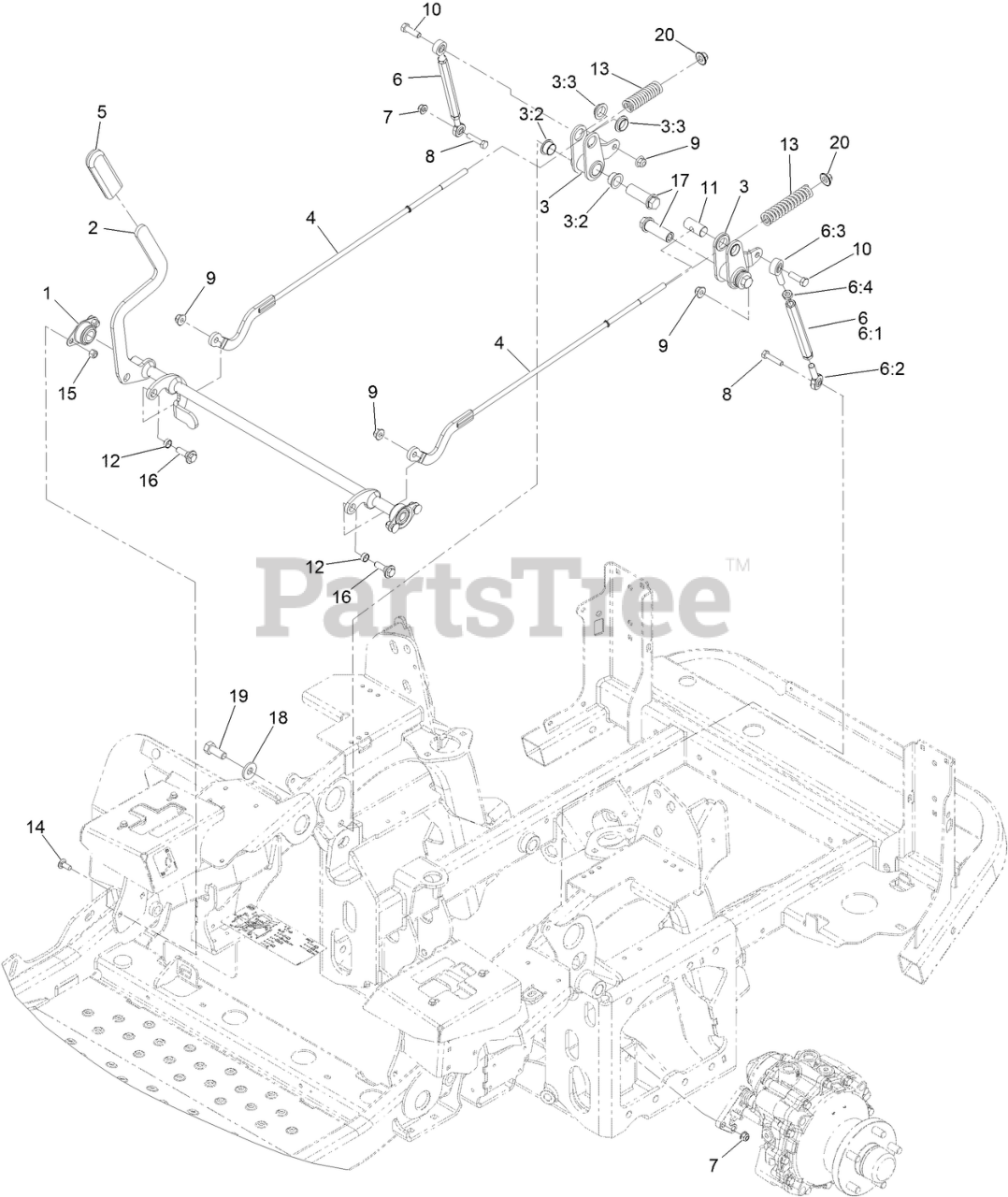

Parking Brake Assembly Parts Diagram

  • Title

1

Exmark 1-633102

BEARING-FLANGE, SIDE

$20.99

$

In Stock, only 3 left!

0

2

Exmark 142-4901

SHAFT-BRAKE

$174.99

$

Usually ships in 3-6 days

0

3

Exmark 126-3010

BRAKE BELLCRANK ASM

$105.99

$

Usually ships in 3-6 days

0

3:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3:3

Exmark 135-2840

BUSHING-FLANGE

$6.99

$

Usually ships in 3-6 days

0

4

Exmark 142-4897

LINK-BRAKE, UPPER

$62.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 8

0

6

Exmark 126-9171

TURNBUCKLE ASM

$104.99

$

Usually ships in 3-6 days

0

6:1

Exmark 126-9172

TURNBUCKLE

$50.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-9302

BEARING-END, LH ROD

$20.99

$

Usually ships in 3-6 days

0

6:3

Exmark 1-613204

BALLJOINT

$35.99

$

In Stock, Qty 20+

0

6:4

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

8

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 9

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Exmark 1-633144

PIN-TRUNION

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 133-5109

BEARING-SLEEVE

$2.99

$

In Stock, only 3 left!

0

13

Exmark 109-2230

SPRING-COMPRESSION

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 5

0

17

Exmark 109-5891

HUB-THREADED

$15.99

$

In Stock, only 1 left!

0

18

Exmark 1-513435

WASHER-SPRING

$5.99

$

In Stock, Qty 5

0

19

Exmark 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0
