LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 417930746 & Above) (Rev A) (2025) RH Motor Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

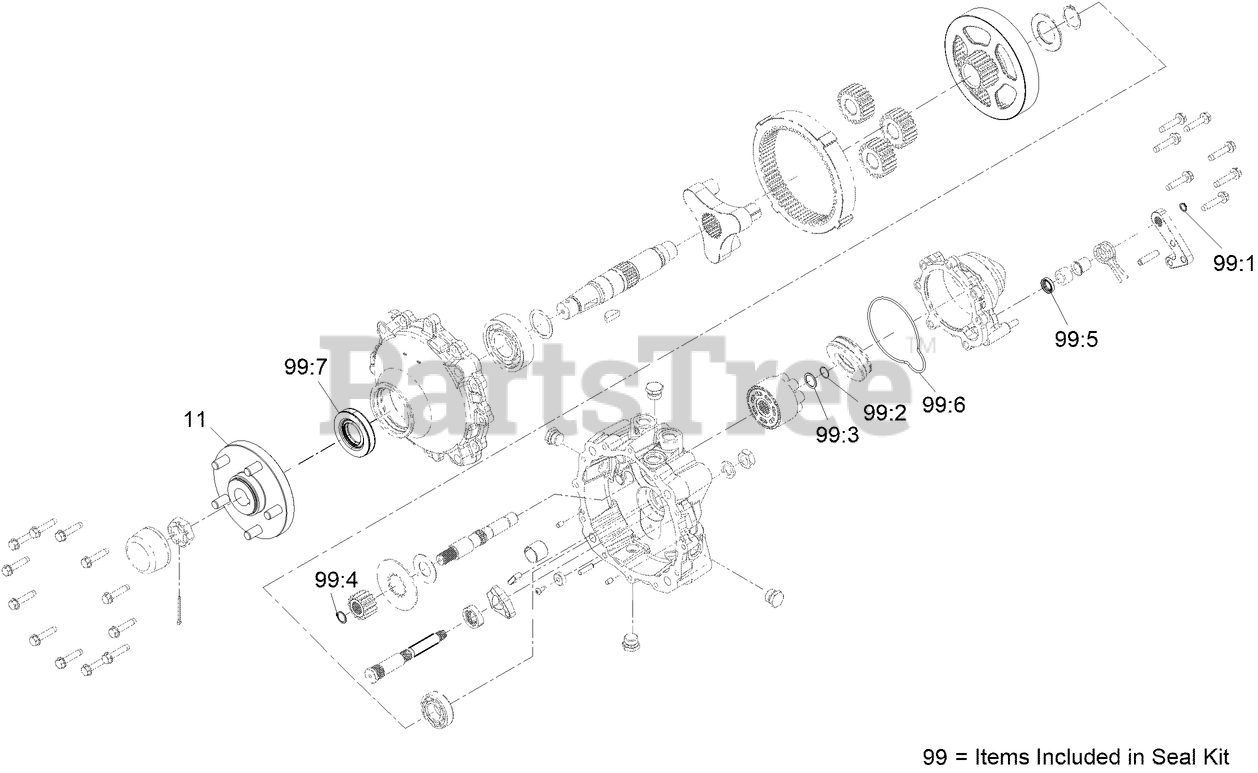

RH Motor Assembly Parts Diagram

  • Title

11

Exmark 135-5333

5 STUD WHEEL HUB KIT

$322.99

$

In Stock, Qty 8

0

99

Exmark 126-0315

SEAL KIT

$80.99

$

Usually ships in 3-6 days

0

99:1

Exmark 161-0915

RETAINER RING

$3.99

$

Usually ships in 0 days

0

99:2

Exmark 104-5307

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

99:3

Exmark 161-0916

Washer

$

$

Currently unavailable

99:4

Exmark 104-5340

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

99:5

Exmark 145-3637

Seal, Brake

$6.99

$

Usually ships in 3-6 days

0

99:6

Exmark 161-0917

O-Ring, Round

$

$

Currently unavailable

99:7

Exmark 161-0942

Seal, Axle

$

$

Currently unavailable
