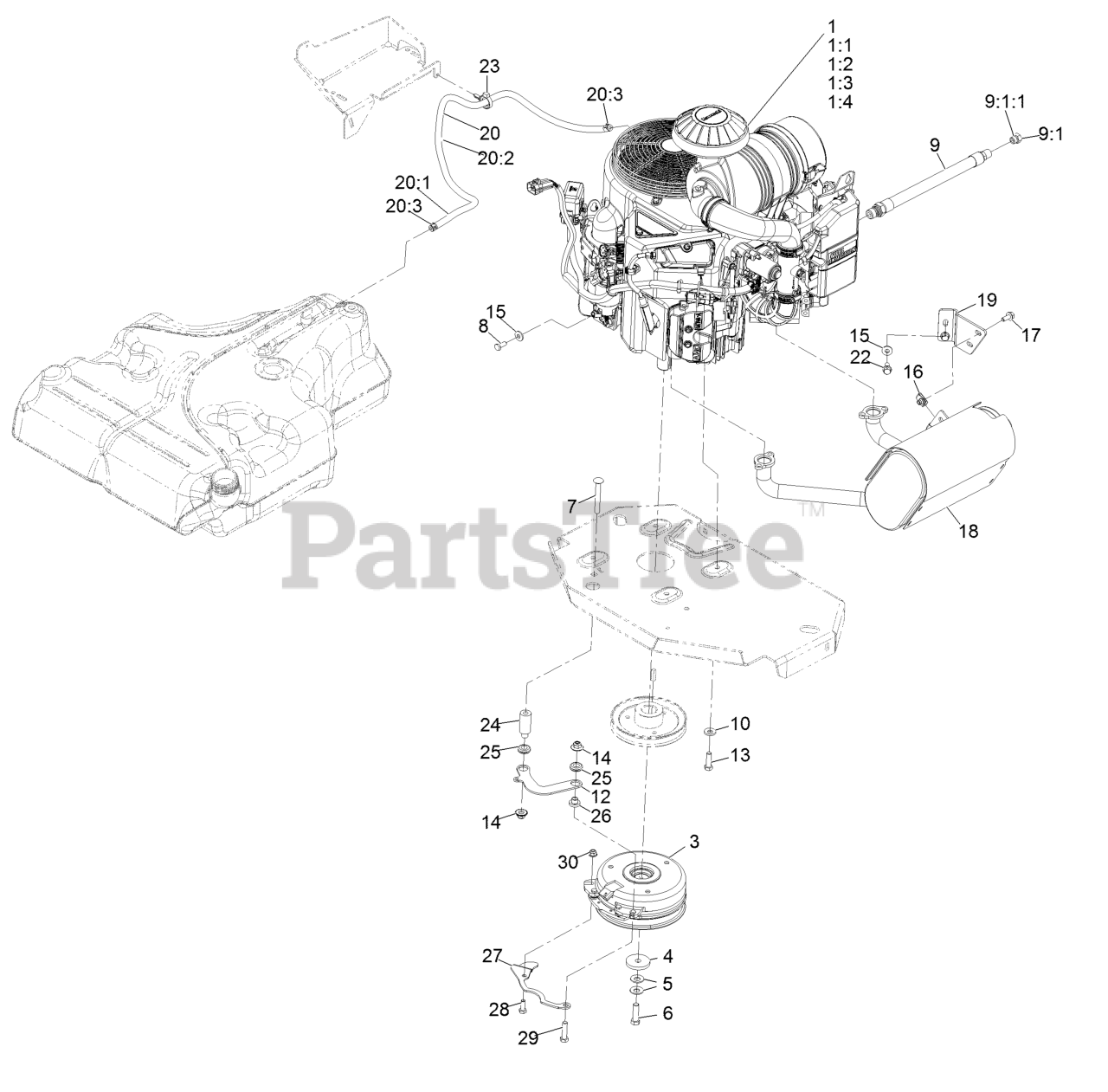

LZS850EKA604W0 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX850V (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX850V

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki Fx850Efi

$

$

Not available

1:1

Kawasaki 49065-2078 Engine Oil Filter

$

$

Not available

1:2

Kawasaki 49019-0031 Fuel Filter

$

$

Not available

1:3

Kawasaki 11013-7039 Safety Filter

$

$

Not available

1:4

Kawasaki 11013-7038 Air Filter

$

$

Not available

3

Exmark 126-4185

Clutch Kit

$771.99

$

In Stock, only 1 left!

0

4

Exmark 109-6919

Washer-Clutch

$5.49

$

In Stock, Qty 15

0

5

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-9761

Screw-HH 7/16-20 X 1 1/2 W/Loctite

$5.49

$

In Stock, only 1 left!

0

7

Exmark 3231-42

Bolt-Carriage 3/8-16 X 3

$2.99

$

In Stock, Qty 20+

0

8

Exmark 33114-020

Screw-HH M8-1.25 X 20Mm

$0.99

$

In Stock, Qty 13

0

9

Exmark 116-4924

Asm-Hose Oil Drain W/Plug

$36.99

$

In Stock, Qty 6

0

9:1

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, only 1 left!

0

9:1:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

10

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

12

Exmark 116-3317-01

Link-Anchor, Clutch

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, Qty 7

0

16

Exmark 94-2413

Nut-U

$2.99

$

In Stock, only 2 left!

0

17

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, only 4 left!

0

18

Exmark 116-1712

Muffler

$216.99

$

Usually ships in 3-6 days

0

19

Exmark 116-0203

Bracket-Muffler

$33.99

$

Usually ships in 3-6 days

0

20

Exmark 117-3893

Fuel Line ASM

$47.99

$

Usually ships in 3-6 days

0

20:1

Exmark 109-0273

Hose-Fuel Line 38 1/4"

$21.99

$

Usually ships in 3-6 days

0

20:2

Exmark 117-3892

Sleeve-Thermal

$33.99

$

Usually ships in 3-6 days

0

20:3

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

22

Exmark 95-4184

Screw-HH M8-1.25 X 20Mm
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 105-1853

Clamp-Hose

$5.49

$

In Stock, only 4 left!

0

24

Exmark 116-3319

Spacer

$25.99

$

In Stock, only 1 left!

0

25

Exmark 93-5108

Grommet-Rubber

$15.99

$

In Stock, only 1 left!

0

26

Exmark 116-3318

Spacer

$19.99

$

In Stock, only 2 left!

0

27

Exmark 116-3331-01

Belt-Guide

$26.99

$

Usually ships in 3-6 days

0

28

Exmark 322-4

Screw-HH 5/16-18 X 7/8

$0.99

$

In Stock, Qty 20+

0

29

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

30

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+
