LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Fuel Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

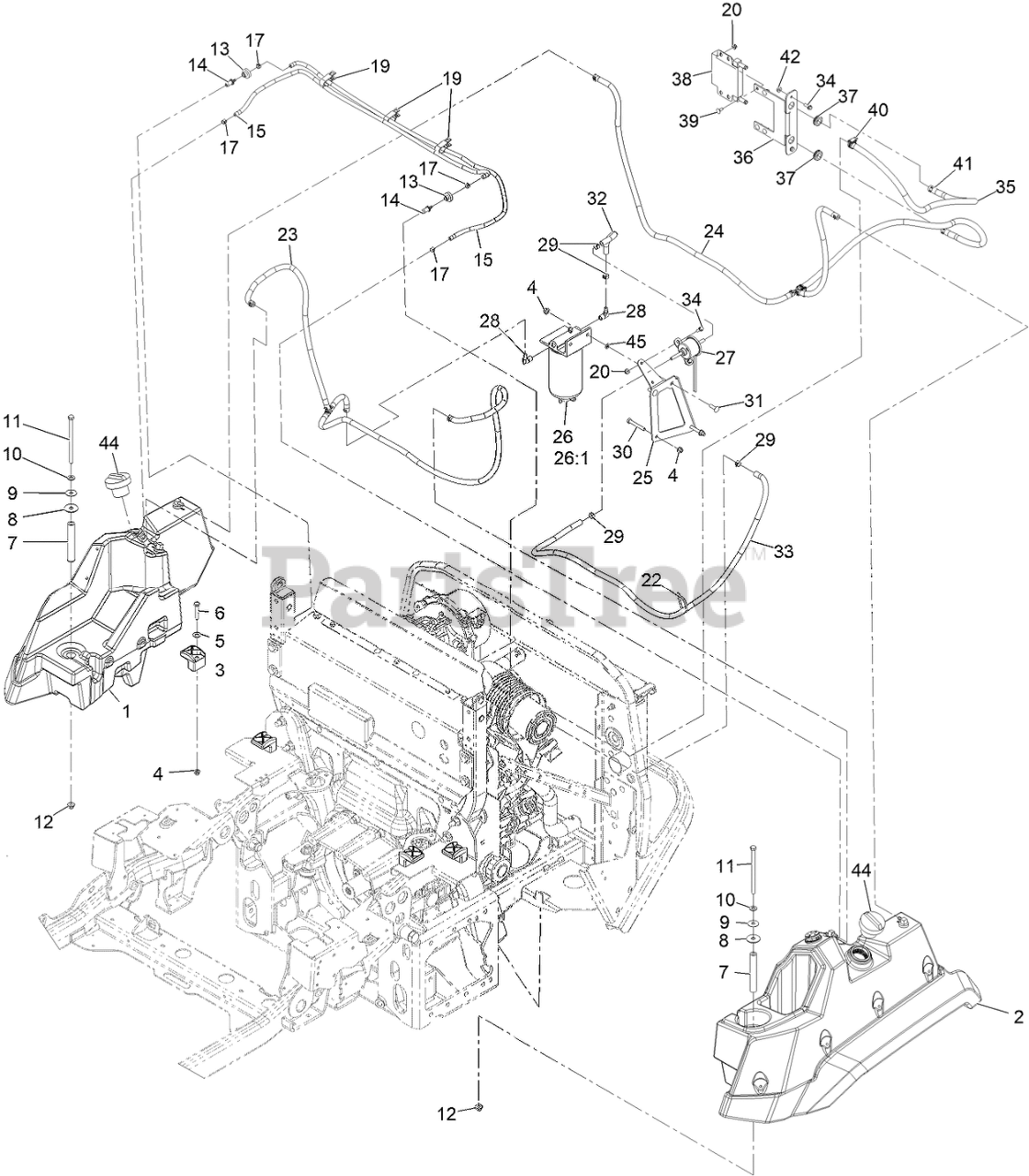

Fuel Assembly Parts Diagram

  • Title

1

Exmark 142-8638

RH FUEL TANK ASM

$387.99

$

Usually ships in 3-6 days

0

2

Exmark 142-8637

LH FUEL TANK ASM

$464.99

$

Usually ships in 3-6 days

0

3

Exmark 107-4543

CLAMP

$13.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 322-21

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

7

Exmark 126-8335

TUBE-SPACER

$15.99

$

Usually ships in 3-6 days

0

8

Exmark 95-1905

WASHER-RUBBER

$2.99

$

In Stock, Qty 8

0

9

Exmark 105-6814

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 323-22

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

14

Exmark 116-4630

FITTING-ORIFICE, STRAIGHT

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 117-6395

HOSE-VENT, TANK

$20.99

$

Usually ships in 3-6 days

0

17

Exmark 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

19

Exmark 92-5753

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 12

0

23

Exmark 135-0512

FUEL SUCTION LINE ASM

$69.99

$

Usually ships in 3-6 days

0

24

Exmark 142-3194

HOSE ASM-FUEL, TEE

$74.99

$

Usually ships in 3-6 days

0

25

Exmark 142-7204-03

BRKT-FUEL FILTER

$33.99

$

0

26

Exmark 126-8294

FILTER-WATER/FUEL SEPERATOR

$137.99

$

In Stock, only 1 left!

0

26:1

Exmark 126-8295

FILTER-FUEL/WATER SEP.

$51.99

$

Usually ships in 3-6 days

0

27

Exmark 121-5613

PUMP-FUEL, ELECTRIC

$328.99

$

Usually ships in 3-6 days

0

28

Exmark 353-781

FITTING-HYD, 90

$27.99

$

Usually ships in 3-6 days

0

29

Exmark 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

30

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

31

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

32

Exmark 108-3280

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

33

Exmark 110-7503

HOSE-FUEL

$51.99

$

Usually ships in 3-6 days

0

34

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 19

0

35

Exmark 142-3195

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

36

Exmark 142-5173-03

MOUNT-COOLER, FUEL

$36.99

$

0

37

Exmark 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

38

Exmark 116-7205

COOLER-OIL

$217.99

$

Usually ships in 3-6 days

0

39

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

40

Exmark 135-7984

Clamp-Hose

$3.49

$

Usually ships in 3-6 days

0

41

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

42

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

44

Exmark 125-9170

CAP-FUEL, DIESEL (ULTRA LOW SULFUR)

$41.99

$

Usually ships in 3-6 days

0

45

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 3 left!
