LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Gearbox Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

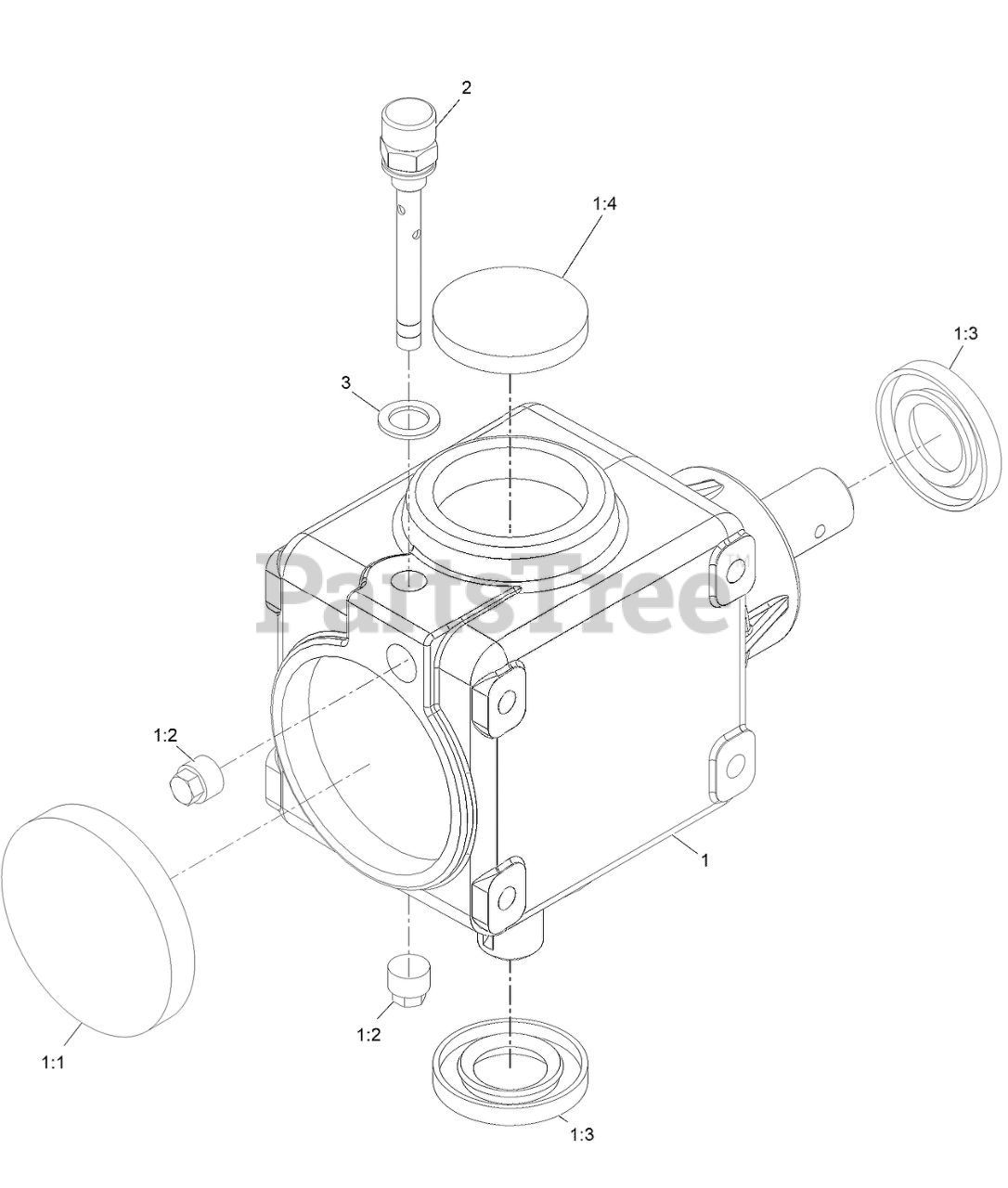

Gearbox Assembly Parts Diagram

  • Title

1

Gearbox ASM-90 DEG

Note: Not serviced separately

$

$

Not available

1:1

Exmark 107-2932

CAP-OIL

$34.99

$

Usually ships in 3-6 days

0

1:2

Exmark 107-2933

PLUG

$13.99

$

Usually ships in 3-6 days

0

1:3

Exmark 117-9247

SEAL

$69.99

$

Usually ships in 3-6 days

0

1:4

Exmark 107-2935

CAP-OIL

$32.99

$

Usually ships in 3-6 days

0

2

Exmark 130-8661

PLUG-BREATHER

$39.99

$

Usually ships in 3-6 days

0

3

Exmark 130-4899

WASHER

$3.49

$

Usually ships in 3-6 days

0
