LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Transmission Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

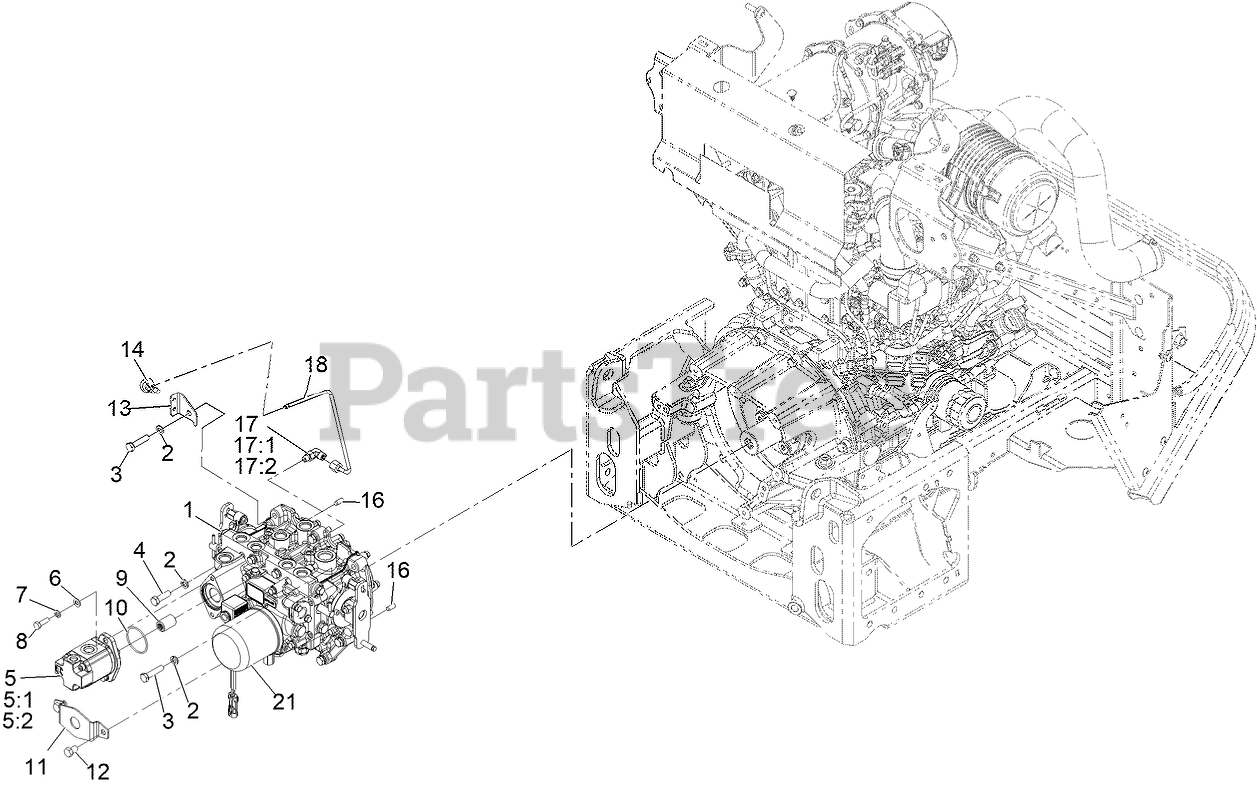

Transmission Assembly Parts Diagram

  • Title

1

Exmark 142-8084

KIT-TRANSMISSION ASM

$8709.99

$

Usually ships in 3-6 days

0

2

Exmark 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

3

Exmark 33115-045

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 33115-035

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

5

Exmark 112-9542

HYD GEAR PUMP ASM

$1150.99

$

Usually ships in 3-6 days

0

5:1

Exmark 112-0198

VALVE

$258.99

$

Usually ships in 3-6 days

0

5:2

Exmark 112-0199

SEAL KIT

$67.99

$

Usually ships in 3-6 days

0

6

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Exmark 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 18

0

9

Exmark 108-9920

COUPLER-SPLINE

$55.99

$

Usually ships in 3-6 days

0

10

Exmark 108-9919

O-RING

$4.99

$

Usually ships in 3-6 days

0

11

Exmark 114-4088

SHIELD-SEAL

$30.99

$

Usually ships in 3-6 days

0

12

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

13

Exmark 126-6806

SUPPORT-TUBE

$9.49

$

Usually ships in 3-6 days

0

14

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

16

Exmark 87-1910

PIN-DOWEL

$11.99

$

In Stock, only 3 left!

0

17

Exmark 340-132

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

17:1

Exmark 237-78

O-RING

$4.49

$

In Stock, only 3 left!

0

17:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 6

0

18

Exmark 126-8689

TUBE ASM

$39.99

$

Usually ships in 3-6 days

0

21

Exmark 135-2252

FILTER-OIL, HYD

$75.99

$

In Stock, Qty 9

0
