LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 - 416150474) (Rev C) (2023) RH Wing Deck Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

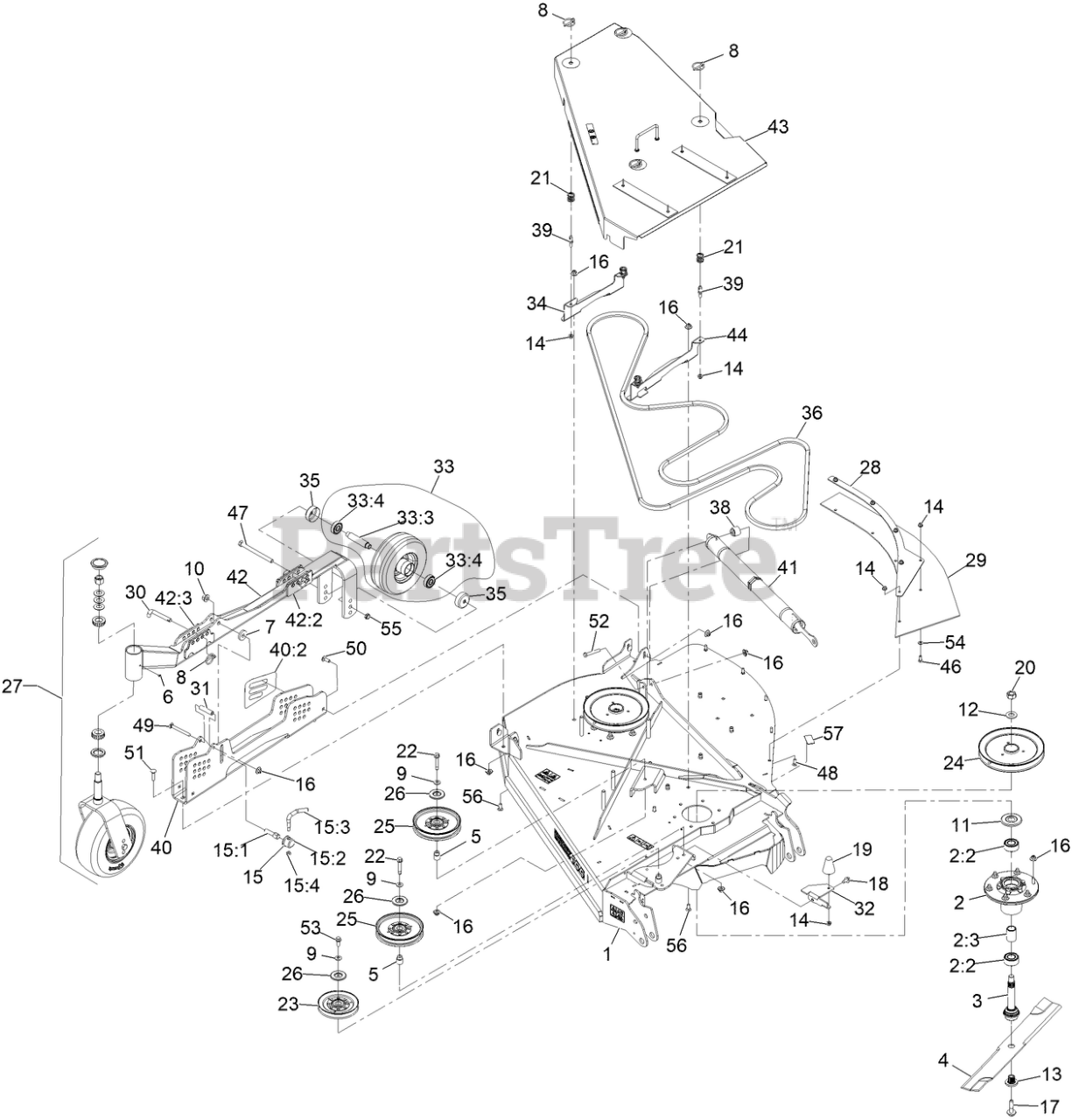

RH Wing Deck Assembly Parts Diagram

  • Title

1

Exmark 142-5416

ASM-RH WING DECK 144

$2913.99

$

Usually ships in 3-6 days

0

2

Exmark 135-3437

ASM-CUTTER HSG

$195.99

$

In Stock, Qty 6

0

2:2

Exmark 134-6634

BEARING-3205 TRASHGUARD

$34.99

$

In Stock, only 2 left!

0

2:3

Exmark 135-3440

SPACER-BEARING

$8.99

$

In Stock, only 2 left!

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$96.99

$

In Stock, Qty 7

0

4

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

$41.99

$

In Stock, Qty 20+

0

5

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

6

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

7

Exmark 30-8770

WASHER

$12.99

$

In Stock, Qty 7

0

8

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 11

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 14

0

11

Exmark 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

12

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

13

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 12

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

15

Exmark 107-1664

LEVER ASM

$82.99

$

In Stock, only 2 left!

0

15:1

Exmark 106-3239

SCREW-LOCK

$56.99

$

Usually ships in 3-6 days

0

15:2

Exmark 107-1644

CAP-LOCK

$44.99

$

Usually ships in 3-6 days

0

15:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$82.99

$

In Stock, only 2 left!

0

15:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

18

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 10

0

19

Exmark 114-1925

BUMPER-RUBBER

$28.99

$

In Stock, Qty 11

0

20

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

21

Exmark 126-1503

SPRING

$2.99

$

In Stock, Qty 5

0

22

Exmark 126-2956

SCREW-HHF

$6.99

$

In Stock, Qty 7

0

23

Exmark 126-2960

IDLER-V

$90.99

$

In Stock, only 4 left!

0

24

Exmark 126-6635

SHEAVE-SINGLE 96RD

$129.99

$

In Stock, only 3 left!

0

25

Exmark 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 13

0

26

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

27

Exmark 126-9405

ASM-CASTER,11"TIRE

$

$

Currently unavailable

28

Exmark 142-8360-03

SUPPORT-RH REAR GUARD

$77.99

$

Usually ships in 3-6 days

0

29

Exmark 142-8323

GUARD-RH REAR WING

$51.99

$

Usually ships in 3-6 days

0

30

Exmark 135-2073

PIN-HOC

$28.99

$

In Stock, Qty 12

0

31

Exmark 135-2424

SPACER

$17.99

$

Usually ships in 3-6 days

0

32

Exmark 135-2611-01

BRACKET-COVER RETAINER

$19.99

$

Usually ships in 3-6 days

0

33

Exmark 135-2642

WHEEL AND TIRE ASM

$100.99

$

In Stock, Qty 18

0

33:3

Exmark 126-7904

AXLE-CASTER

$26.99

$

Usually ships in 3-6 days

0

33:4

Exmark 116-4004

BEARING

$21.99

$

In Stock, Qty 11

0

34

Exmark 135-2653-03

BRACKET-SHIELD MOUNT, OUT

$26.99

$

Usually ships in 3-6 days

0

35

Exmark 135-3218

GUARD, SEAL

$6.49

$

In Stock, only 2 left!

0

36

Exmark 135-5774

USE 135-5774-SL

$180.99

$

Usually ships in 3-6 days

0

38

Exmark 135-7307

BUSHING-LIFT SPRING

$13.99

$

Usually ships in 3-6 days

0

39

Exmark 135-7455

PIN, SPRING

$5.49

$

In Stock, only 4 left!

0

40

Exmark 142-4470

ASM-CHANNEL, HOC RH W/DECALS

$270.99

$

Usually ships in 0 days

0

40:2

Exmark 126-8760

DECAL-HEIGHT OF CUT, RH

$

$

Not available

41

Exmark 142-6483

ASM-WEIGHT-TRANSFER-SPRING

$347.99

$

Usually ships in 3-6 days

0

42

Exmark 142-6581

ASM-RH GAUGE WHEEL ARM

$774.99

$

Usually ships in 3-6 days

0

42:2

Exmark 142-3501

PLATE-GUIDE, REAR

$13.99

$

Usually ships in 0 days

0

42:3

Exmark 142-3592

PLATE-GUIDE, FRONT

$13.99

$

Usually ships in 0 days

0

43

Exmark 142-6633

ASM-BELT SHIELD RH

$

$

Currently unavailable

44

Exmark 142-6636-03

BRACKET-SHIELD MOUNT, RIGHT LONG

$

$

Currently unavailable

46

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

48

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

49

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

0

50

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

51

Exmark 3231-4

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

52

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

53

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 9

0

54

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

55

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

56

Exmark 3231-12

BOLT-CARR

$6.99

$

In Stock, only 4 left!

0

57

Exmark 130-0733

PAD-RUBBER

$1.99

$

Usually ships in 3-6 days

0
