LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) Hydraulic Drive Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

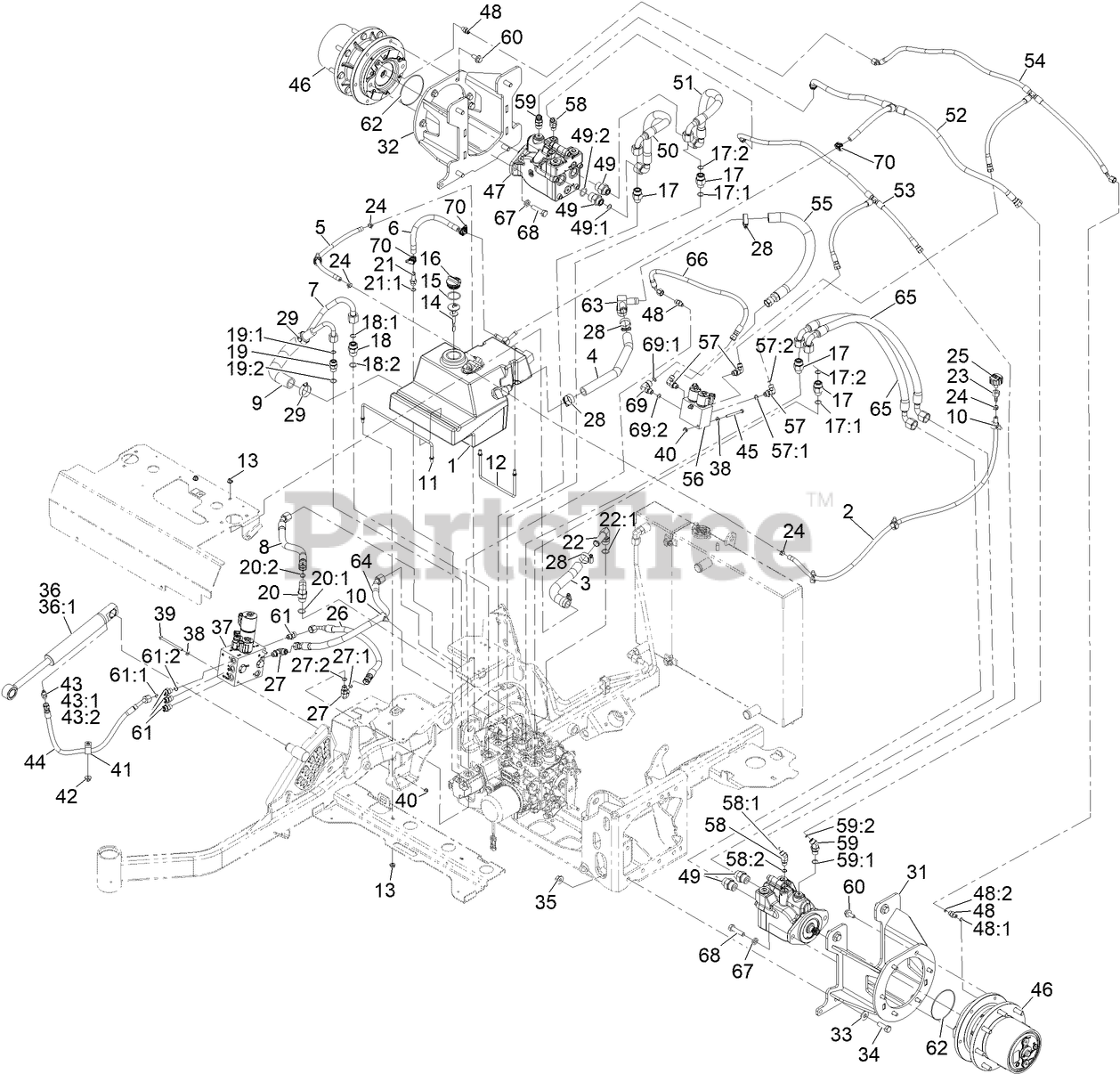

Hydraulic Drive Assembly Parts Diagram

  • Title

1

Exmark 142-5034

HYD RESERVOIR ASM

$828.99

$

Usually ships in 3-6 days

0

2

Exmark 126-6776

HOSE

$24.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6767

HOSE-RETURN

$18.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6768

HOSE-RETURN

$21.99

$

Usually ships in 3-6 days

0

5

Exmark 126-6778

HOSE

$13.99

$

Usually ships in 3-6 days

0

6

Exmark 126-6766

HOSE

$6.99

$

Usually ships in 3-6 days

0

7

Exmark 126-8688

TUBE ASM

$164.99

$

Usually ships in 3-6 days

0

8

Exmark 142-5180

HOSE ASM-HYD HP

$60.99

$

Usually ships in 3-6 days

0

9

Exmark 126-6774

HOSE-SUCTION

$22.99

$

Usually ships in 3-6 days

0

10

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

11

Exmark 126-7547

ROD-SUPPORT, HYD TANK

$21.99

$

Usually ships in 3-6 days

0

12

Exmark 126-7546

ROD-SUPPORT, HYD TANK

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 112-6365

DIPSTICK

$88.99

$

Usually ships in 3-6 days

0

15

Exmark 94-8166

O-RING

$4.99

$

Usually ships in 3-6 days

0

16

Exmark 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 3 left!

0

17

Exmark 340-155

FITTING-STRAIGHT

$29.99

$

Usually ships in 3-6 days

0

17:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

17:2

Exmark 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

18

Exmark 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

18:1

Exmark 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

18:2

Exmark 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

19

Exmark 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

19:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

19:2

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

20

Exmark 340-105

FITTING-ELBOW, 90 DEG

$42.99

$

In Stock, only 2 left!

0

20:1

Exmark 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

20:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 103-1912

ADAPTER-STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

21:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 87-8170

FITTING-90

$47.99

$

Usually ships in 3-6 days

0

22:1

Exmark 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

23

Exmark 354-95

FITTING-STRAIGHT

$6.99

$

Usually ships in 3-6 days

0

24

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

25

Exmark 68-6150

BREATHER

$27.99

$

In Stock, only 4 left!

0

26

Exmark 126-8684

HOSE ASM

$60.99

$

In Stock, only 2 left!

0

27

Exmark 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 1 left!

0

27:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

27:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

28

Exmark 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

29

Exmark 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

31

Exmark 142-5791-03

MOTOR MOUNT, R [BLACK]

$332.99

$

Usually ships in 3-6 days

0

32

Exmark 142-5790-03

WASHER-SPRING DISC 1/2

$332.99

$

Usually ships in 3-6 days

0

33

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

34

Exmark 325-6

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

35

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 14

0

36

Exmark 126-7841

CYLINDER-LIFT

$479.99

$

Usually ships in 3-6 days

0

36:1

Exmark 142-2767

CYL Repair Kit

$116.99

$

In Stock, only 2 left!

0

37

Exmark 142-8862

VALVE ASM-LIFT AND FOLD

$1689.99

$

Usually ships in 3-6 days

0

38

Exmark 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Exmark 321-28

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

40

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

41

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

42

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

43

Exmark 126-8692

FITTING-HYD, STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

43:1

Exmark 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

43:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

44

Exmark 126-8683

HOSE ASM

$69.99

$

Usually ships in 3-6 days

0

45

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

46

Exmark 142-5548

PLANETARY ASM-11.96:1

$2110.99

$

Usually ships in 3-6 days

0

47

Exmark 142-5691

MOTOR-HYD, PISTON, 30CC

$1486.99

$

Usually ships in 3-6 days

0

48

Exmark 340-92

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

48:1

Exmark 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

48:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

49

Exmark 340-8

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

49:1

Exmark 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

49:2

Exmark 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

50

Exmark 142-5611

HOSE-HP

$117.99

$

Usually ships in 3-6 days

0

51

Exmark 142-5612

HOSE-HP

$117.99

$

Usually ships in 3-6 days

0

52

Exmark 142-6631

HOSE ASM-HYDLPTEE

$118.99

$

Usually ships in 3-6 days

0

53

Exmark 142-6640

HOSE ASM-HYD HP TEE

$118.99

$

Usually ships in 3-6 days

0

54

Exmark 142-6639

HOSE ASM-HYD HP TEE

$127.99

$

Usually ships in 3-6 days

0

55

Exmark 142-5768

HOSE ASM-HYDLP

$61.99

$

Usually ships in 3-6 days

0

56

Exmark 142-3892

VALVE-HYD, BRK-2SPD

$436.99

$

Usually ships in 3-6 days

0

57

Exmark 340-82

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 1 left!

0

57:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

57:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

58

Exmark 340-137

FITTING

$43.99

$

Usually ships in 3-6 days

0

58:1

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

58:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

59

Exmark 340-138

FITTING-HYD, 45 DEG

$35.99

$

Usually ships in 3-6 days

0

59:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

59:2

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

60

Exmark 33106-025

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

61

Exmark 340-2

FITTING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

61:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

61:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

62

Exmark 237-166

O-RING

$10.99

$

Usually ships in 3-6 days

0

63

Exmark AUH339762

TEE

$136.99

$

Usually ships in 3-6 days

0

64

Exmark 142-5778

HOSE ASM-HYD HP

$67.99

$

Usually ships in 3-6 days

0

65

Exmark 142-6632

HOSE-HP

$117.99

$

Usually ships in 3-6 days

0

66

Exmark 142-5789

HOSE ASM-HYD HP

$48.99

$

Usually ships in 3-6 days

0

67

Exmark 9202424

SPACER

$

$

Not available

68

Exmark 94-2702

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

69

Exmark 340-99

Fitting-HYD, 90 DEG

$38.99

$

Usually ships in 3-6 days

0

69:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

69:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

70

Exmark 135-7984

Clamp-Hose

$3.49

$

Usually ships in 3-6 days

0
