LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 416150475 - 417930745) (Rev A) (2024) Center Deck Cover and Torsion Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

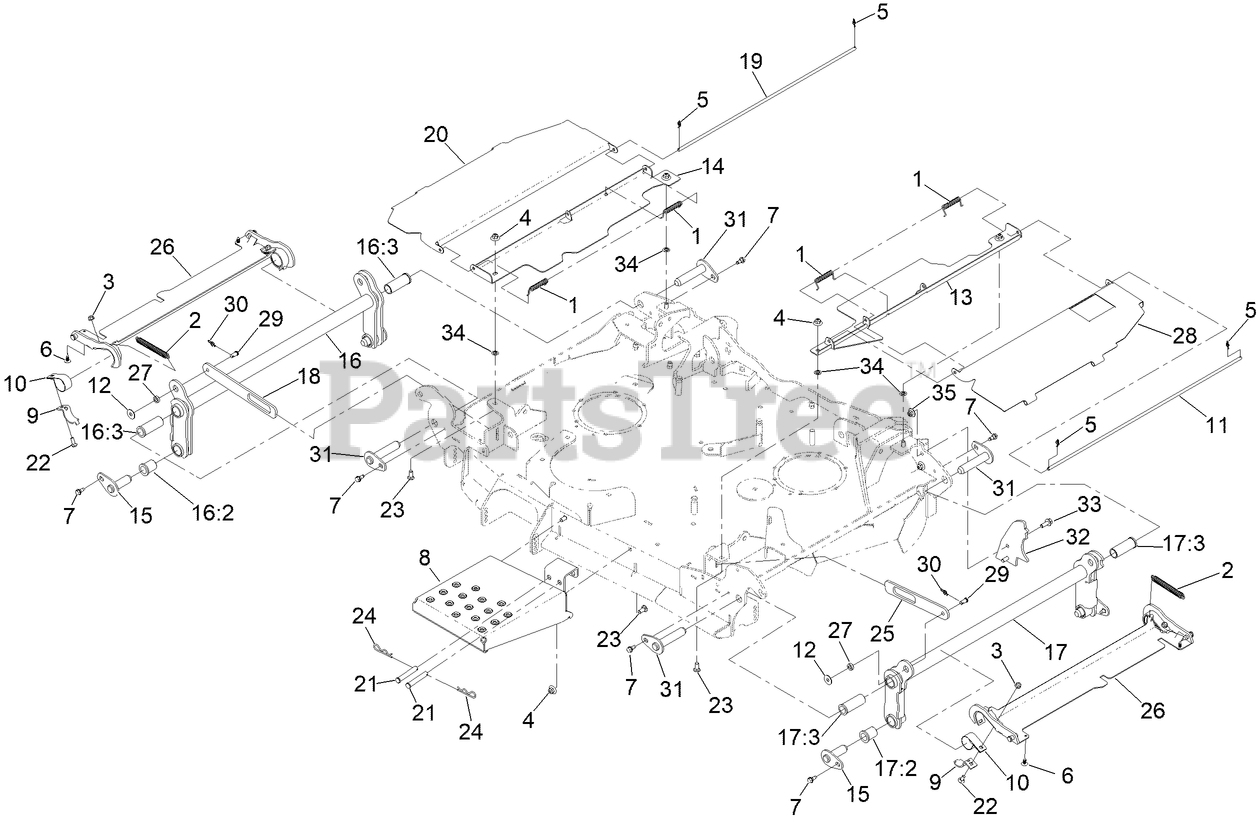

Center Deck Cover and Torsion Assembly Parts Diagram

  • Title

1

Exmark 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 6

0

2

Exmark 103-4813

SPRING

$6.99

$

In Stock, only 2 left!

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-6639

PIN-COTTER, LOCKING

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

7

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 14

0

8

Exmark 146-0669-03

PLATE-DECK STEP

$140.99

$

Usually ships in 3-6 days

0

9

Exmark 126-9764

PLATE-RETAINER, BEARING

$14.99

$

Usually ships in 3-6 days

0

10

Exmark 135-0584

BEARING-STRAP, NYLON

$6.99

$

Usually ships in 3-6 days

0

11

Exmark 135-1023

COVER-ROD, PIVOT

$41.99

$

Usually ships in 3-6 days

0

12

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

13

Exmark 142-8103-01

SHIELD-LH CENTER [RED]

$140.99

$

Usually ships in 0 days

0

14

Exmark 135-6566-01

SHIELD-CENTER, RH

$74.99

$

Usually ships in 0 days

0

15

Exmark 142-4813

ASM-DECK PIN

$26.99

$

In Stock, Qty 7

0

16

Exmark 142-6419

ASM-RH FOLD ARM

$875.99

$

Usually ships in 3-6 days

0

16:2

Exmark 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 5

0

16:3

Exmark 142-8114

BUSHING-FLANGE

$

$

Not available

17

Exmark 142-6428

ASM-LH FOLD ARM

$875.99

$

Usually ships in 0 days

0

17:2

Exmark 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 5

0

17:3

Exmark 142-8114

BUSHING-FLANGE

$

$

Not available

18

Exmark 142-9434

STRAP-RH FLAG

$31.99

$

Usually ships in 0 days

0

19

Exmark 142-2704

ROD-CENTER COVER

$30.99

$

Usually ships in 3-6 days

0

20

Exmark 142-2706-03

PLATE-HINGED COVER

$90.99

$

Usually ships in 3-6 days

0

21

Exmark 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 4 left!

0

22

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3231-12

BOLT-CARR

$6.99

$

In Stock, only 4 left!

0

24

Exmark 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

25

Exmark 142-6467

STRAP-LH FLAG

$31.99

$

Usually ships in 3-6 days

0

26

Exmark 142-6649-01

ASM-WING COVER, [RED]

$225.99

$

Usually ships in 3-6 days

0

27

Exmark 142-6724

BUSHING

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 142-8106-03

COVER-HINGED, LH [BLACK]

$149.99

$

Usually ships in 0 days

0

29

Exmark 283-85

PIN-CLEVIS

$21.99

$

In Stock, only 1 left!

0

30

Exmark 140-9312

PIN-COTTER, LOCKING

$1.99

$

Usually ships in 3-6 days

0

31

Exmark 142-8450

ASM-DECK PIN

$41.99

$

Usually ships in 3-6 days

0

32

Exmark 142-3841-01

BRACKET-DECK STOP LH

$19.99

$

Usually ships in 3-6 days

0

33

Exmark 131-2220

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

Exmark 107-3154

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
