LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 416150475 - 417930745) (Rev B) (2024) Hood Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

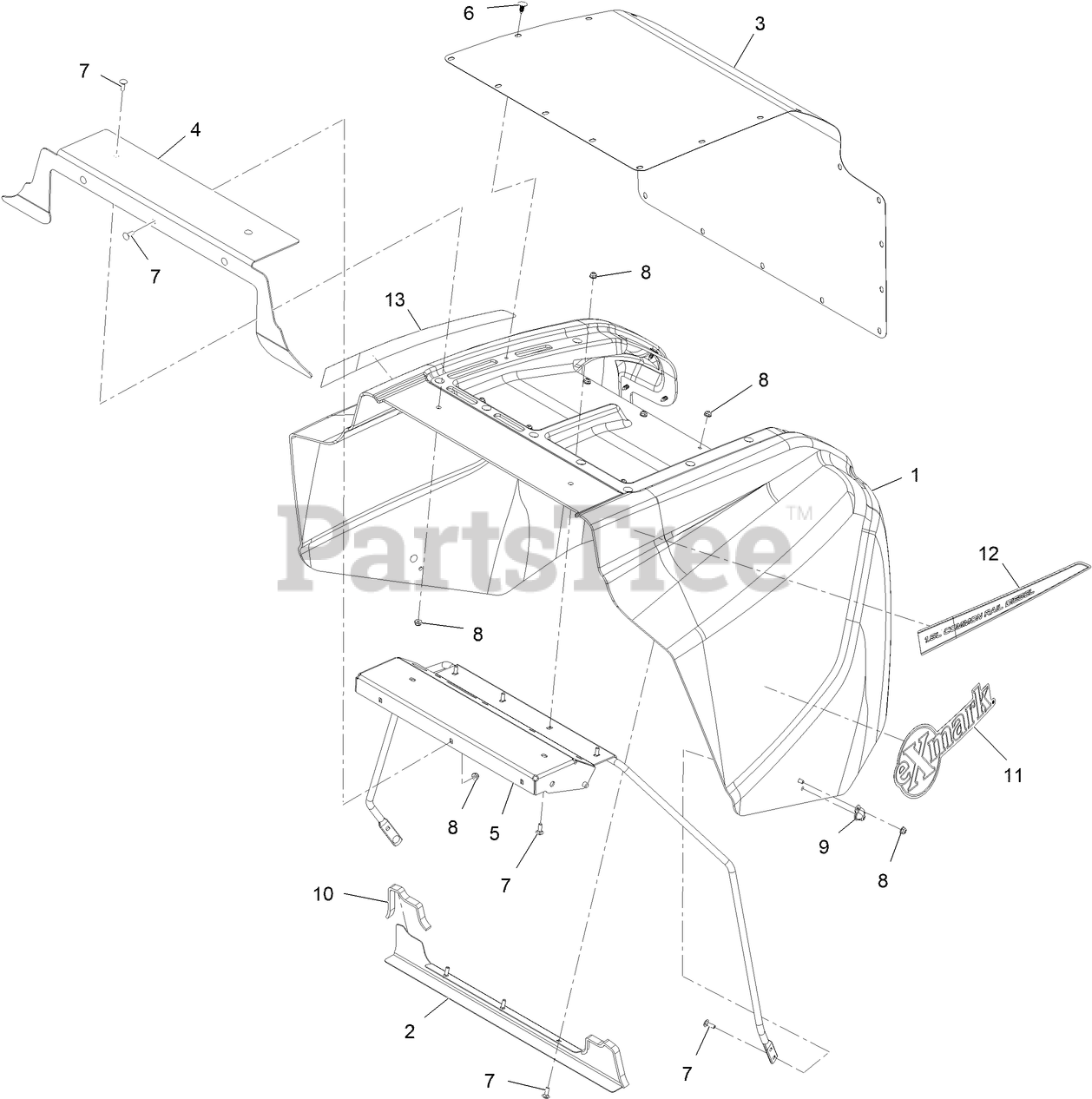

Hood Assembly Parts Diagram

  • Title

1

Exmark 142-4137

HOOD

$1363.99

$

Usually ships in 3-6 days

0

2

Exmark 142-3217-03

PLATE-SEAL

$39.99

$

Usually ships in 0 days

0

3

Exmark 142-4141-03

SCREEN

$192.99

$

Usually ships in 3-6 days

0

4

Exmark 142-6641-03

BRACKET-HOOD BLOCK OFF

$97.99

$

Usually ships in 0 days

0

5

Exmark 142-5133-03

HOOD SUPPORT ASM [BLACK]

$284.99

$

Usually ships in 0 days

0

6

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

7

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

8

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Exmark 142-5170

LATCH, KEEPER

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 142-3219

SEAL-FOAM

$4.99

$

Usually ships in 3-6 days

0

11

Exmark 126-6992

DECAL-EXMARK

$20.99

$

Usually ships in 3-6 days

0

12

Exmark 135-3166

DECAL-COMMON RAIL DIESEL-LH

$26.99

$

Usually ships in 3-6 days

0

13

Exmark 135-3167

DECAL-COMMON RAIL DIESEL-RH

$26.99

$

Usually ships in 3-6 days

0
