LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 416150475 - 417930745) (Rev B) (2024) Main Frame Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

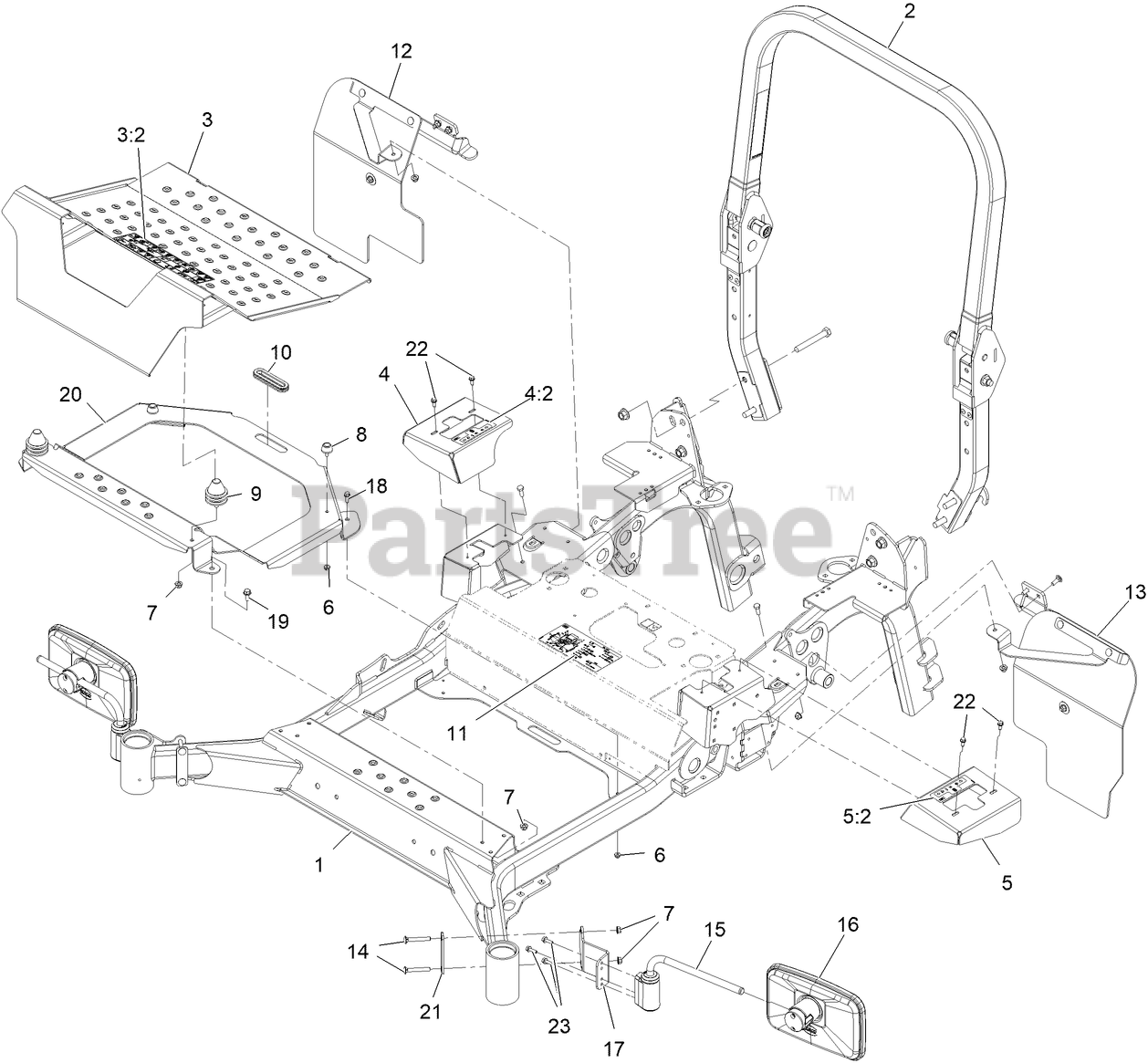

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-7219

MAINFRAME ASM, WD

$3048.99

$

Usually ships in 3-6 days

0

2

Exmark 142-7220

ROPS ASM

$818.99

$

Usually ships in 3-6 days

0

3

Exmark 126-9066

PAN-FLOOR

$407.99

$

Usually ships in 3-6 days

0

3:2

Exmark 126-8383

DECAL-DANGER

$9.49

$

Usually ships in 3-6 days

0

4

Exmark 142-2392

ASM,MOTION CONTROL COVER W/DECAL RH

$99.99

$

Usually ships in 0 days

0

4:2

Exmark 142-3952

DECAL-RH MOTION CONTROL

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 142-2393

ASM,MOTION CONTROL COVER W/DECAL LH

$99.99

$

Usually ships in 0 days

0

5:2

Exmark 142-3953

DECAL-LH MOTION CONTROL

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

8

Exmark 109-2365

BUMPER-RUBBER

$5.99

$

In Stock, Qty 13

0

9

Exmark 126-5491

ISOLATOR

$21.99

$

Usually ships in 3-6 days

0

10

Exmark 126-7065

GROMMET-RUBBER

$5.99

$

Usually ships in 3-6 days

0

11

Exmark 142-7835

DECAL-SERVICE AID

$16.99

$

Usually ships in 3-6 days

0

12

Exmark 135-4933

ASM, RH Mud Flap

$266.99

$

Usually ships in 3-6 days

0

13

Exmark 135-4943

ASM, LH Mud Flap

$266.99

$

Usually ships in 3-6 days

0

14

Exmark 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

15

Exmark 142-4120

MIRROR ARM

$93.99

$

Usually ships in 3-6 days

0

16

Exmark 142-4121

MIRROR, 144

$117.99

$

Usually ships in 3-6 days

0

17

Exmark 142-6584-01

PLATE-MIRROR MOUNT

$32.99

$

Usually ships in 0 days

0

18

Exmark 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

19

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

20

Exmark 142-7203-01

BRACKET, FLOOR PAN RISER

$388.99

$

Usually ships in 0 days

0

21

Exmark 142-6583-01

BRACKET-MIRROR

$5.49

$

Usually ships in 0 days

0

22

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0

23

Exmark 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0
