LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 417930746 & Above) (Rev A) (2025) Front Left and Right Caster Wheel and Fork Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

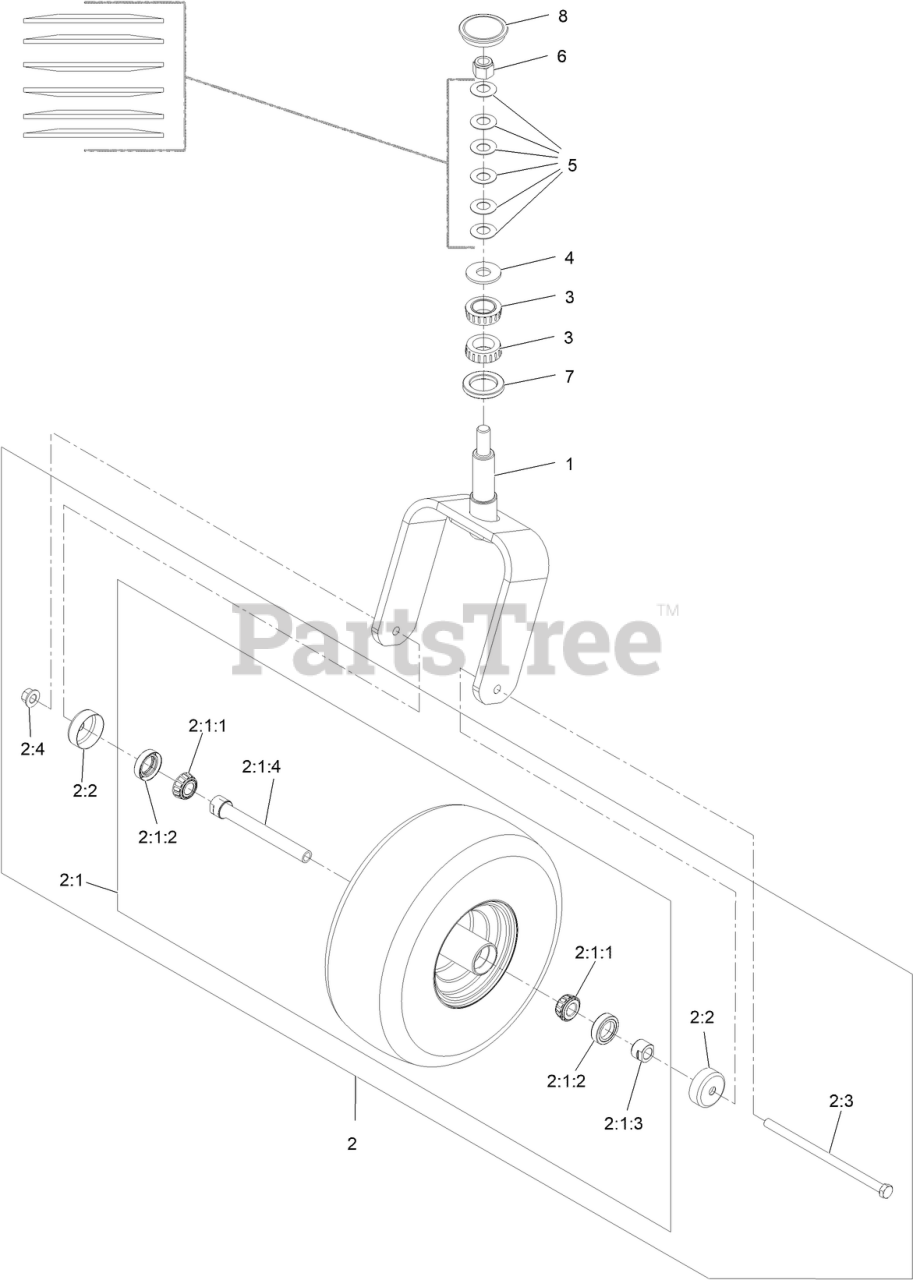

Front Left and Right Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 126-8601-01

FORK-CASTER

$223.99

$

In Stock, only 2 left!

0

2

Exmark 146-4816

ASM-WHL AND TIRE

$387.99

$

Usually ships in 0 days

0

2:1

ASM-Whl And Tire [wht]

Note: Not serviced separately

$

$

Not available

2:1:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$23.99

$

In Stock, Qty 17

0

2:1:2

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, only 3 left!

0

2:1:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 6

0

2:1:4

Exmark 126-5361

AXLE CASTER ASM

$20.99

$

In Stock, Qty 9

0

2:2

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 6

0

2:3

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 9

0

2:4

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 14

0

3

Exmark 103-9028

BEARING-ROLLER, CONE TAPE

$33.99

$

In Stock, only 2 left!

0

4

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 14

0

5

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

6

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, only 1 left!

0

7

Exmark 135-0355

SEAL-GREASE

$8.99

$

In Stock, Qty 11

0

8

Exmark 126-9369

CAP-GREASE

$5.99

$

In Stock, Qty 7

0
