LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 417930746 & Above) (Rev A) (2025) Fuel Line Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

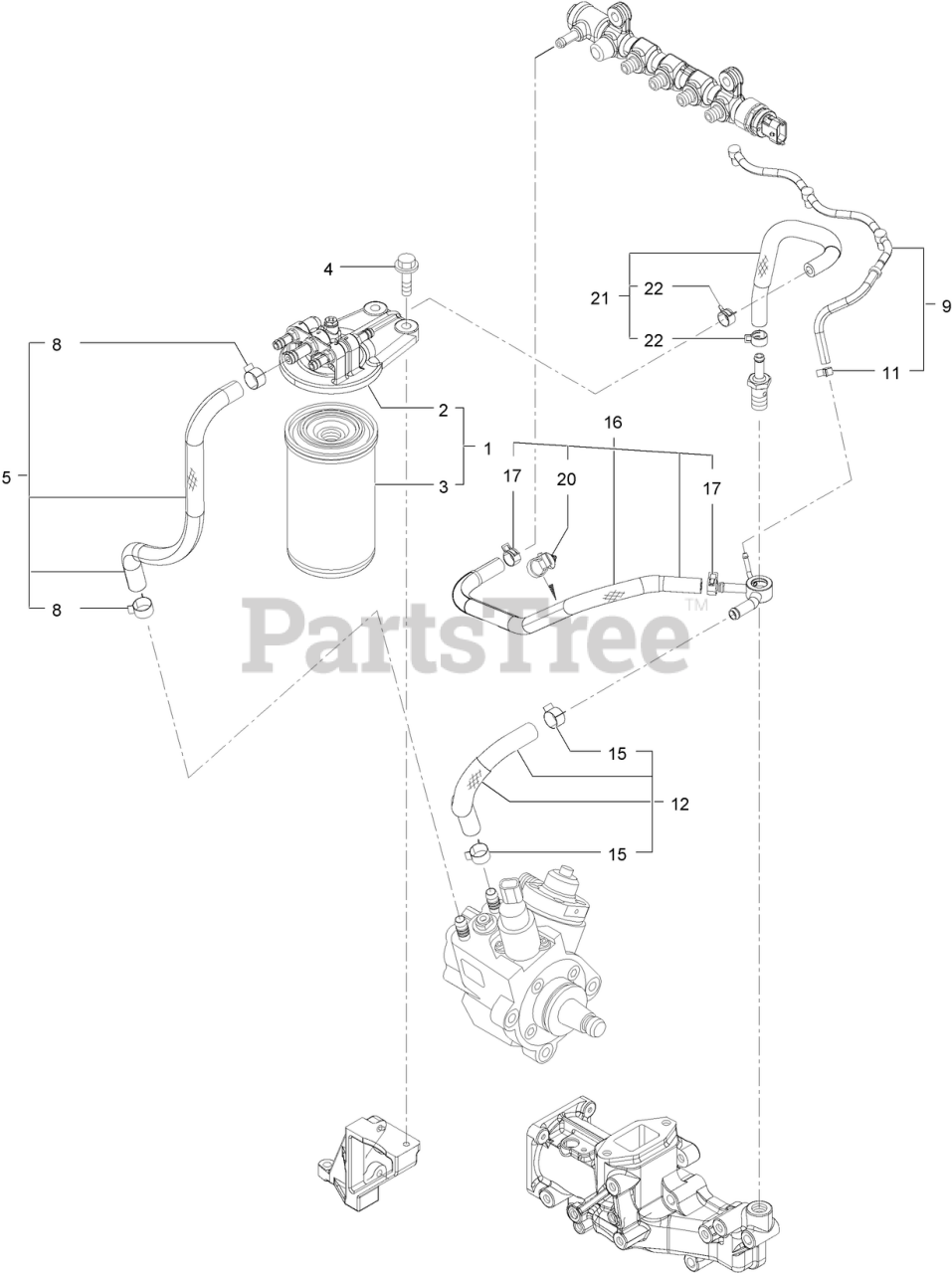

Fuel Line Assembly Parts Diagram

  • Title

1

Exmark 139-6016

FUEL/OIL FILTER ASM

$173.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3076

FUEL/OIL FILTER BRACKET A

$131.99

$

Usually ships in 3-6 days

0

3

Exmark 139-6017

FILTER-FUEL

$71.99

$

Usually ships in 3-6 days

0

4

Exmark 125-7216

BOLT

$3.99

$

Usually ships in 3-6 days

0

5

Exmark 127-3077

FUEL PIPE ASM

$110.99

$

Usually ships in 3-6 days

0

8

Exmark 125-7191

CLAMP-HOSE

$17.99

$

Usually ships in 3-6 days

0

9

Exmark 135-4023

PIPE ASM-FO RETURN

$409.99

$

Usually ships in 3-6 days

0

11

Exmark 127-3172

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

12

Exmark 127-3078

FUEL PIPE ASM

$142.99

$

Usually ships in 3-6 days

0

15

Exmark 125-7191

CLAMP-HOSE

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 127-3817

FUEL PIPE ASM

$181.99

$

Usually ships in 3-6 days

0

17

Exmark 127-2950

CLIP-HOSE

$6.99

$

Usually ships in 3-6 days

0

20

Exmark 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 127-3079

FUEL PIPE ASM

$103.99

$

Usually ships in 3-6 days

0

22

Exmark 127-2950

CLIP-HOSE

$6.99

$

Usually ships in 3-6 days

0
